200mV/div

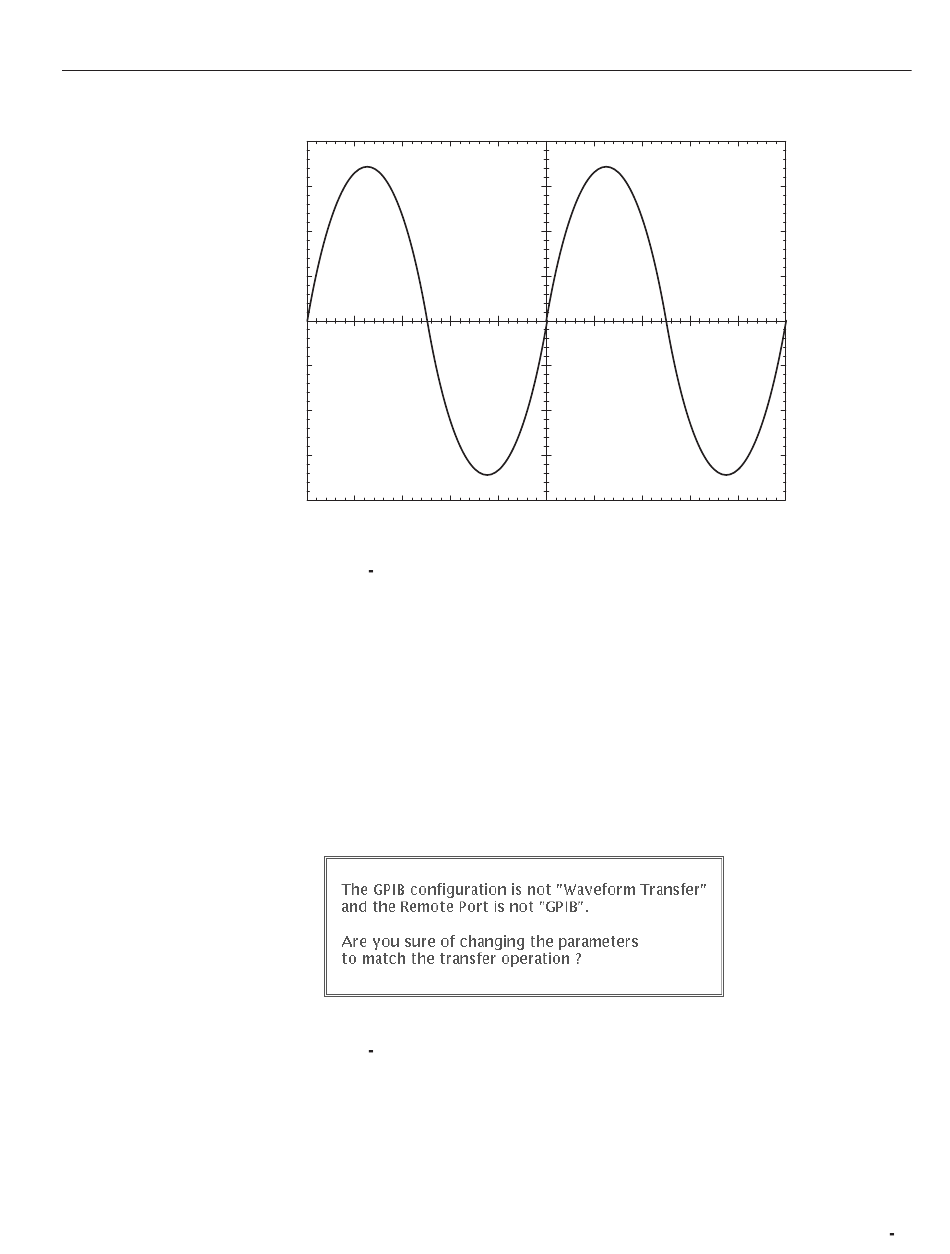

Figure 2 63: DSO Screen
3. Press the MENU column LOAD/SAVE button for the AWG2021.
4. Select Device from the bottom menu.
5. Select GPIB from the side menu.
At this point, if the remote port is not GPIB or the GPIB is not configured
for waveform transferring, these settings must be changed. In such cases, the
message shown in Figure 2 -64 will appear; if you change the setting, select
O.K. from the sub-menu.
Figure 2 64: Confirmation Message (asking if it is O.K. to change the remote port
and GPIB configuration settings)
To change the settings, select O.K. from the sub-menu.
Operating Examples
10ms/div
2 75
