Operating Examples
Waveform Output
2 34

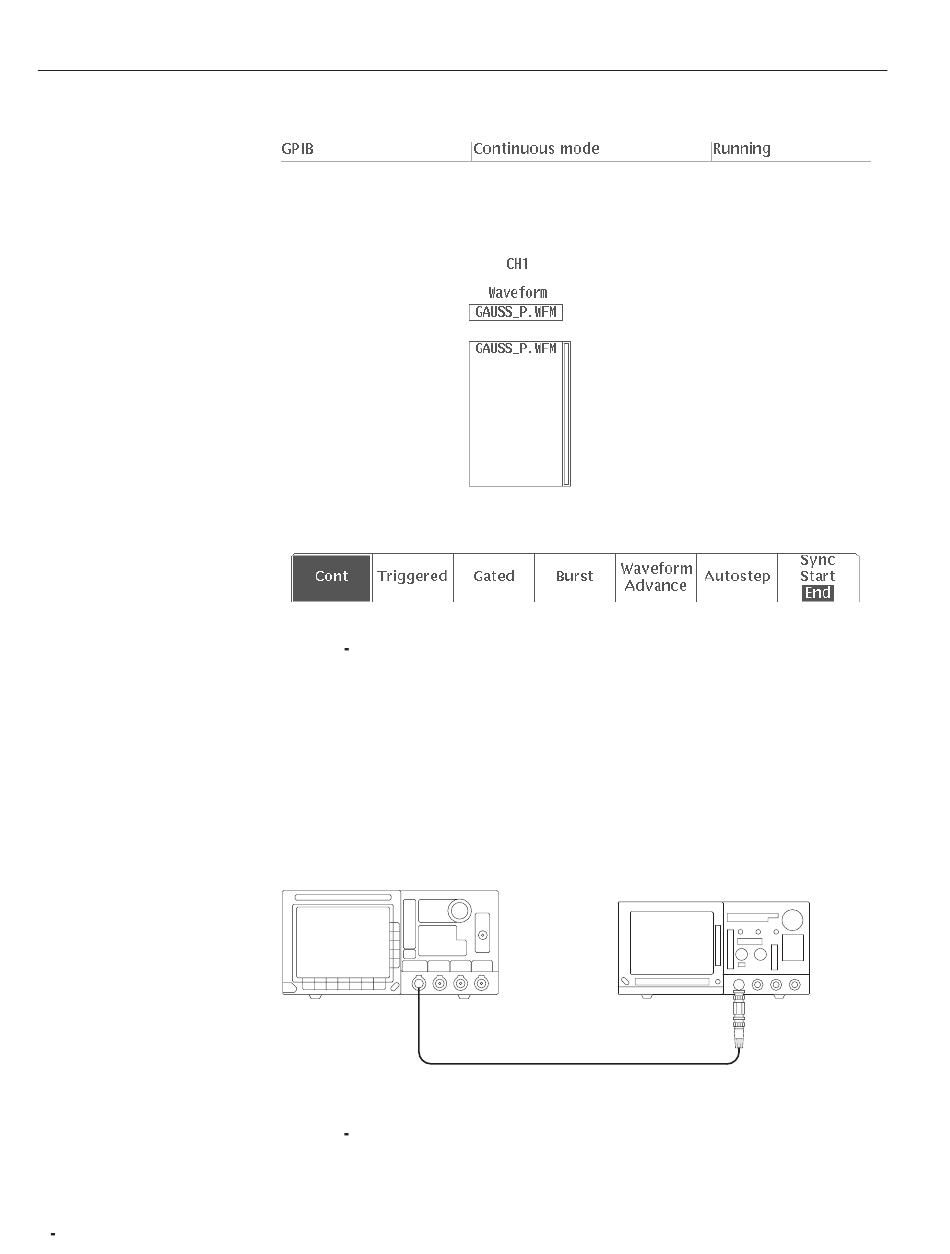

Figure 2 21: MODE Menu
6. Select Cont from the bottom menu. When Cont is selected, the waveform is
continuously output.
1. Connect this instrument and the oscilloscope with a 50 W cable and a 50 W
termination as shown in Figure 2 -22. This instrument's waveform output is
calibrated to a 50 W load.
AWG2021
CH 1
Figure 2 22: Connections in Example 2
Oscilloscope
50 W Termination
50 W Cable
