AWG2021 User Manual

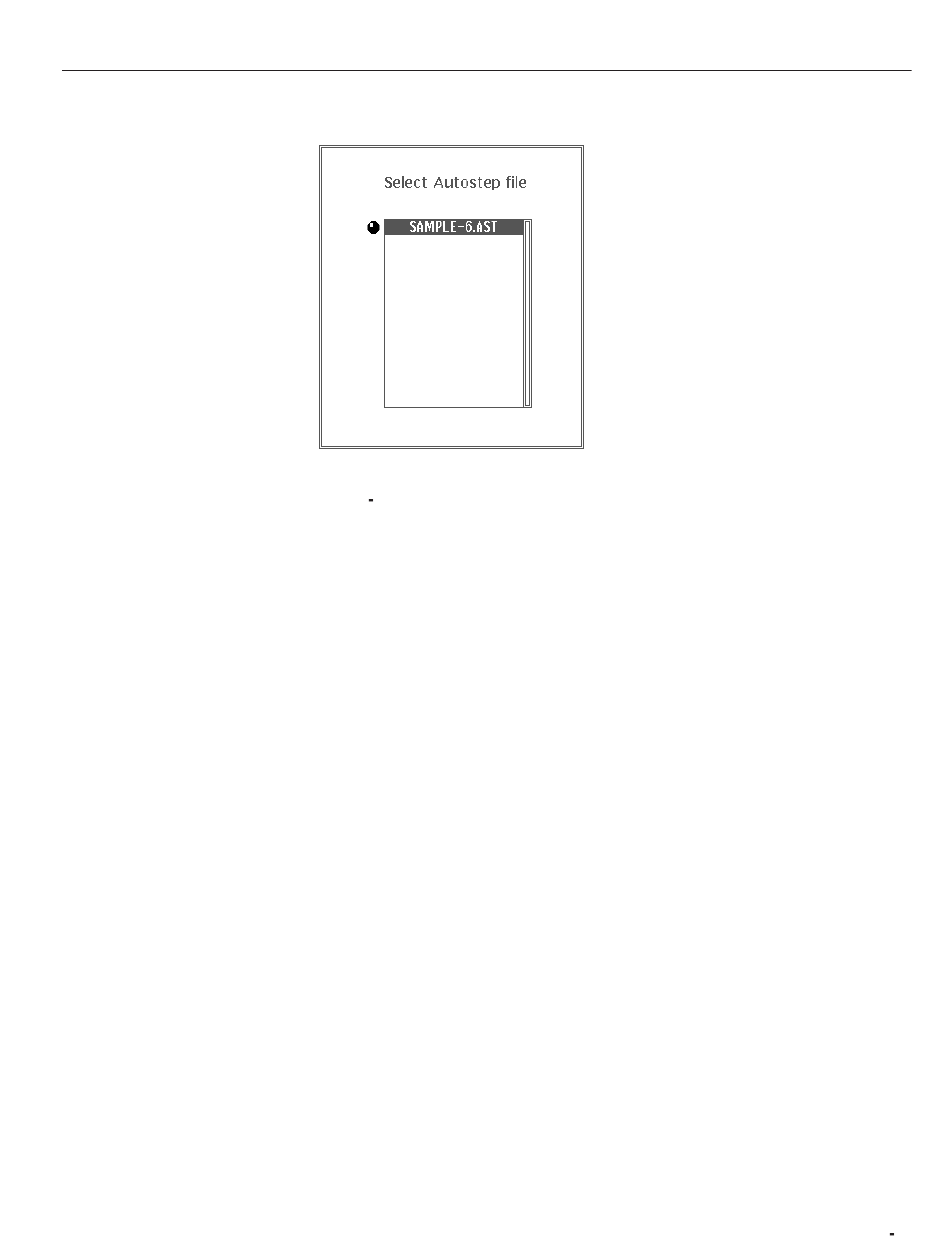

Figure 2 57: Autostep File List
8. Using the general purpose knob, select the SAMPLE–6.AST file.
In this example, there is only one file in the list, so it will already be
selected.
9. Select O.K. from the sub-menu.
10. Press the CH1 On/Off button on the front panel to turn on waveform output.
11. Press the MANUAL button on the front panel.
Check on the oscilloscope to make sure CH1 waveform output advances one
step each time the button is pressed. The waveform or sequence for the step
is output once, then output stops.
This completes the Example 3.
Operating Examples
2 67
