Tektronix AWG2021 User Manual page 201

EDIT Menu
3 82

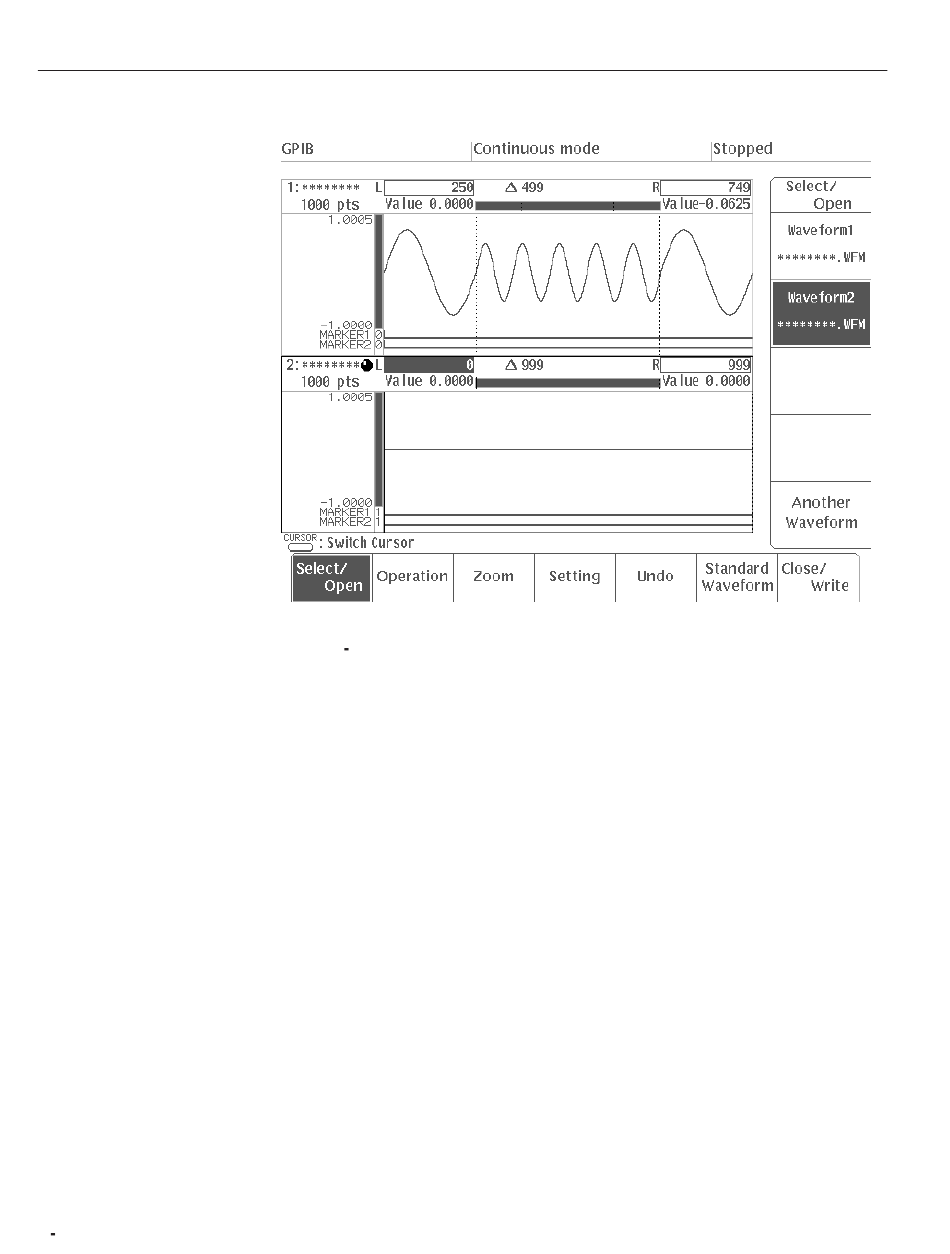

Figure 3 63: Setting the Copy Destination
To copy the waveform:
10. Select Operation from the bottom menu.
11. Select Multiple Copy... from the fourth page of the side menu (More 4 of
4).
When three waveform areas have been designated in the waveform editor,
select one of the remaining two editing areas as the source for waveform
copying with Source item in the sub-menu.
12. Select Interval from the sub-menu.
13. Using the numeric keys, set the interval value to 500 points. When copying
the section of a waveform between the bar cursors in one editing area to the
area between the bar cursors in another editing area, the Interval value
determines the interval at which the waveform will be repeated horizontally
(in points).
AWG2021 User Manual
