EDIT Menu
3 62

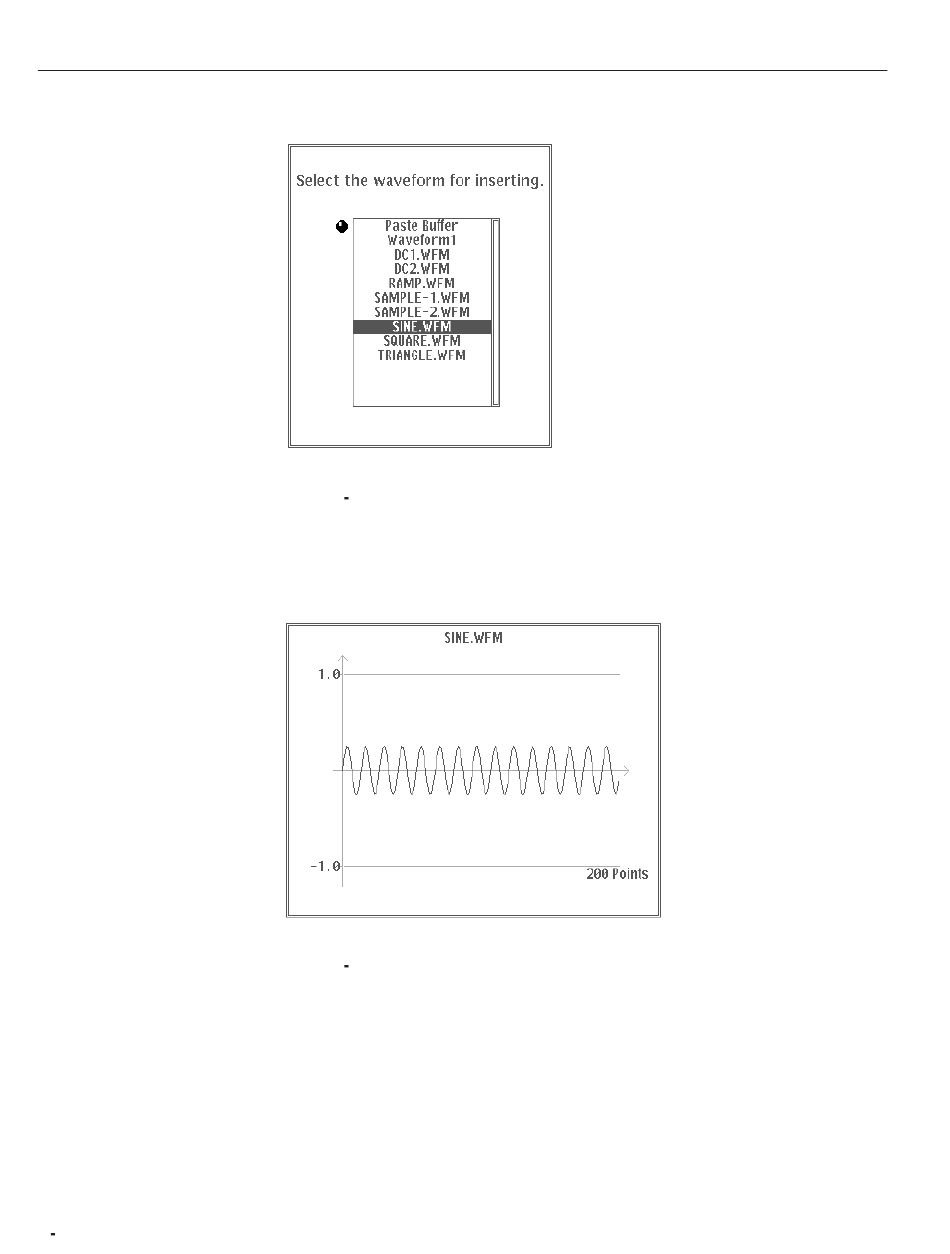

Figure 3 38: List of Files for Insertion
5. Select the Show Catalog Entry from the sub-menu. The waveform for the
selected file is displayed.
Figure 3 39: File Waveform Display
6. Select O.K. from the sub-menu.
The waveform from the selected file is inserted right before the active
vertical bar cursor. Marker signal 1 and 2 belonging to the waveform data are
processed at the same time. Select Cancel to cancel the waveform insertion.
When O.K. or Cancel is selected, the display returns to the menu displayed
before Insert Other Waveform was selected.
