Check Waveform Advance
Mode
AWG2021 User Manual
Electrical
Characteristic Checked
Equipment Required
Prerequisites
1. Install test hookup and set test equipment controls:
a. Hook up the oscilloscope: Connect the AWG2021 CH1 output
connector through the coaxial cable to the CH1 vertical input connector
on the oscilloscope (see Figure C-9).
AWG2021
AWG2021

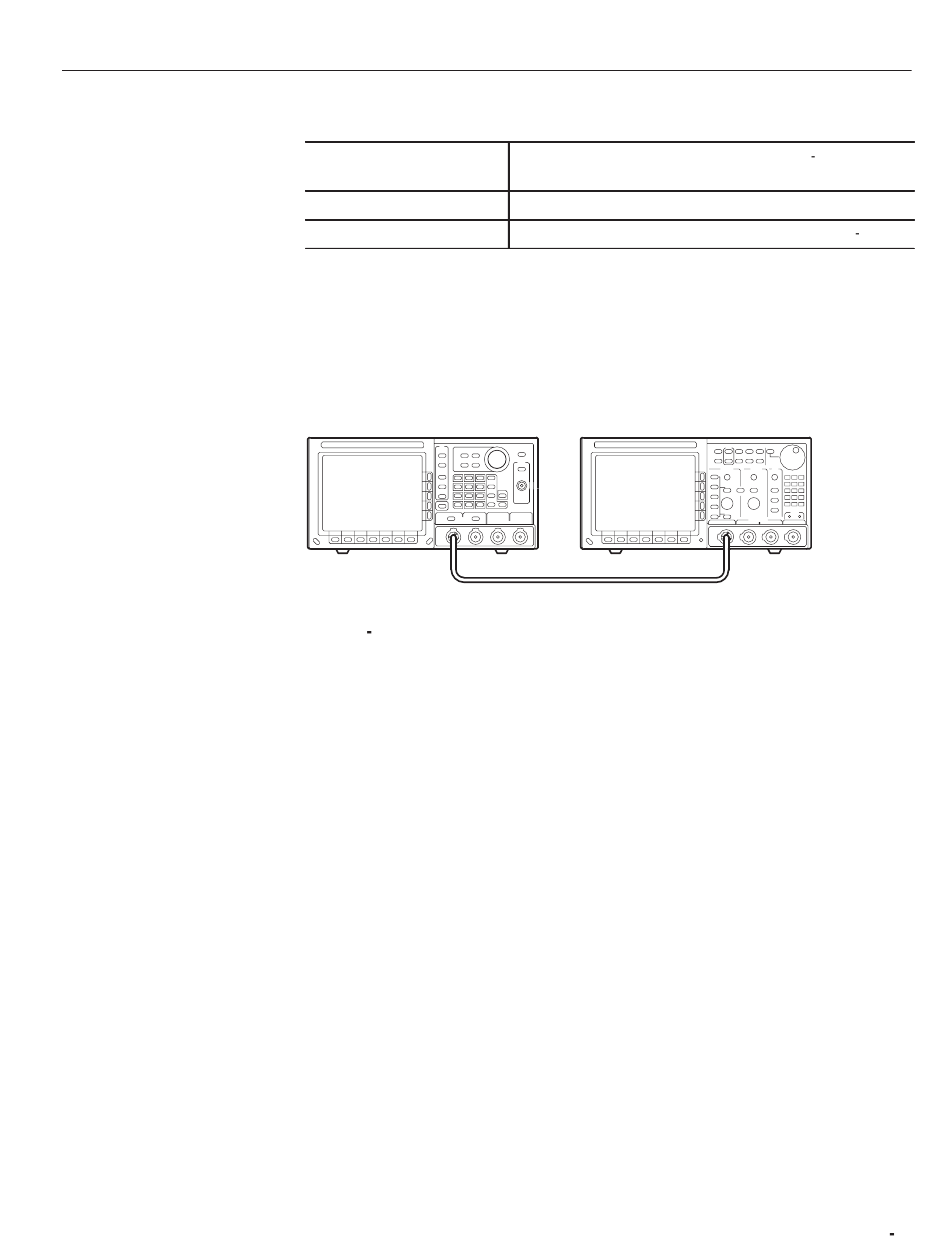

Figure C 9: Waveform Advance Mode Initial Test Hookup
b. Set oscilloscope controls:
Vertical . . . . . . . . . . . . . . . . . . . . . . . . .
CH1 coupling
CH1 . . . . . . . . . . . . . . . . . . . . . . . .
CH1 input impedance
Horizontal . . . . . . . . . . . . . . . . . . . . . . . .
Sweep . . . . . . . . . . . . . . . . . . . . . . .
Trigger
Source . . . . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . . . . .
Slope . . . . . . . . . . . . . . . . . . . . . . .
Level . . . . . . . . . . . . . . . . . . . . . . .
Mode . . . . . . . . . . . . . . . . . . . . . . .
2. Set the AWG2021 controls and select the waveform file:
a. Initialize AWG2021 controls: Push UTILITY!Misc!Config...!Re-
set to Factory!O.K.
b. Set AWG2021 controls:
Appendix C: Performance Verification
Operating mode, Waveform Advance, on page B 1.
A 50 W coaxial cable and an oscilloscope.
The AWG2021 meets the prerequisites listed on page C 5.
Oscilloscope
TDS 540
CH1
. . . . . . . . . . . . . . . . . DC
0.2 V/div.
50 W
. . . . . . . . . .
5 ms/div.
CH1
DC
Positive
0 V
Auto
