EDIT Menu
Equation Editor Menu
Display
3 140

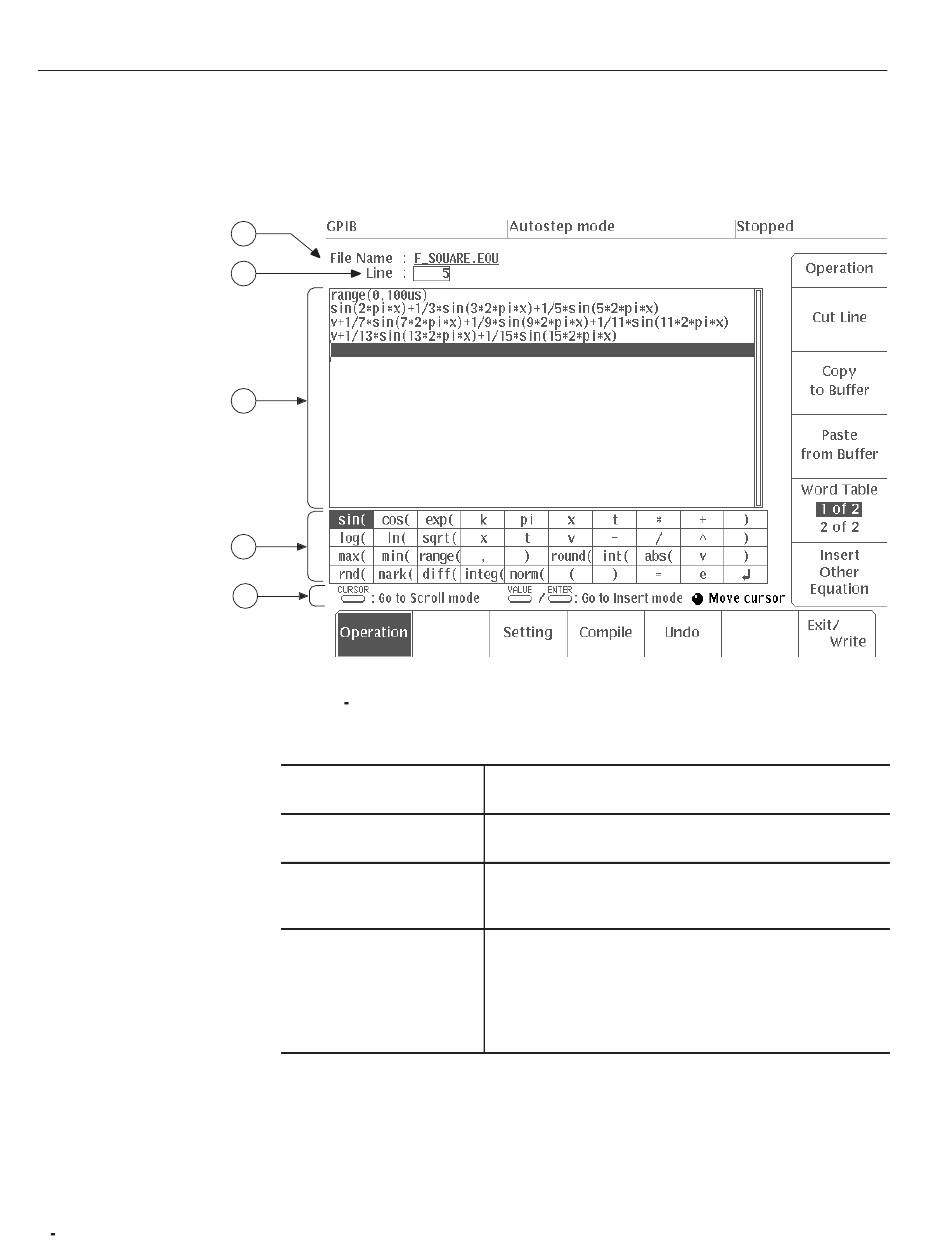

Figure 3 -98 shows the general equation editor display. A description for each
callout follows.
1
2
3
4
5
Figure 3 98: Equation Editor CRT Display
(1) File Name
(2) Line
(3) Equation List
(4) Component Menu
This is the name of the file being edited. If the file has not been
named yet, the display is ********.EQU.
This is the line number of the equation or range displayed
inverted within the equation list.
An equation list contains two components: equations and a
range for which the equations apply. The equation is input from
the component menu, with the numeric keys or unit keys.
The component menu contains the elements used to create an
equation. The menu consists of two pages. The first page
contains functions, operators, constants, variables and syntax
items. The second page contains characters and symbols.
These items are selected with the general purpose knob. Use
Word Table under Operation to move between pages.
