Appendix A: Options and Accessories

Connector : Female

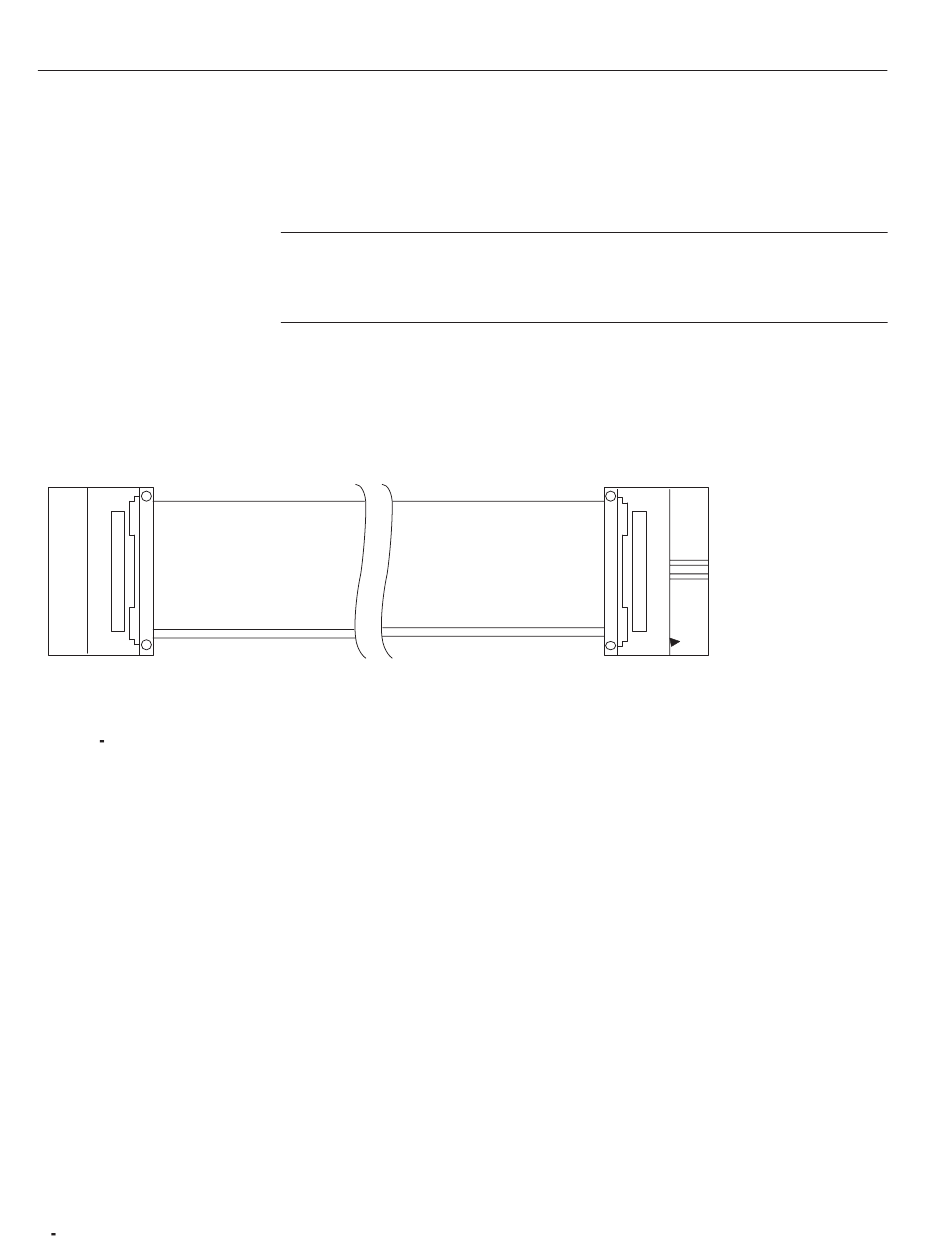

Figure A 16: Digital Data Out Cable

Cable Application Example. The cable connecting the AWG2021 and the user

circuit is extremely critical for reliable operation at the maximum clock

NOTE. Use a coaxial cable with a characteristic impedance of 50 W for all DATA

and CLOCK lines.

Keep cables as short as possible.Lengths under 1-meter are desirable.

The AWG2021 for Option 04 comes with two digital data out cables as a

standard accessory. The cable is 1-meter long and is illustrated in Figure A-16.

The part number for the cable is 174-3192-00.

Connector : Female

AWG2021 User Manual
