MODE Menu
MODE Menu Structure
MENU Button
MODE
3 230
Figure 3 -160 shows the configuration of the MODE menu.
Bottom Menu
Cont
Triggered
Gated
Burst
Waveform
Advance
Autostep
Sync

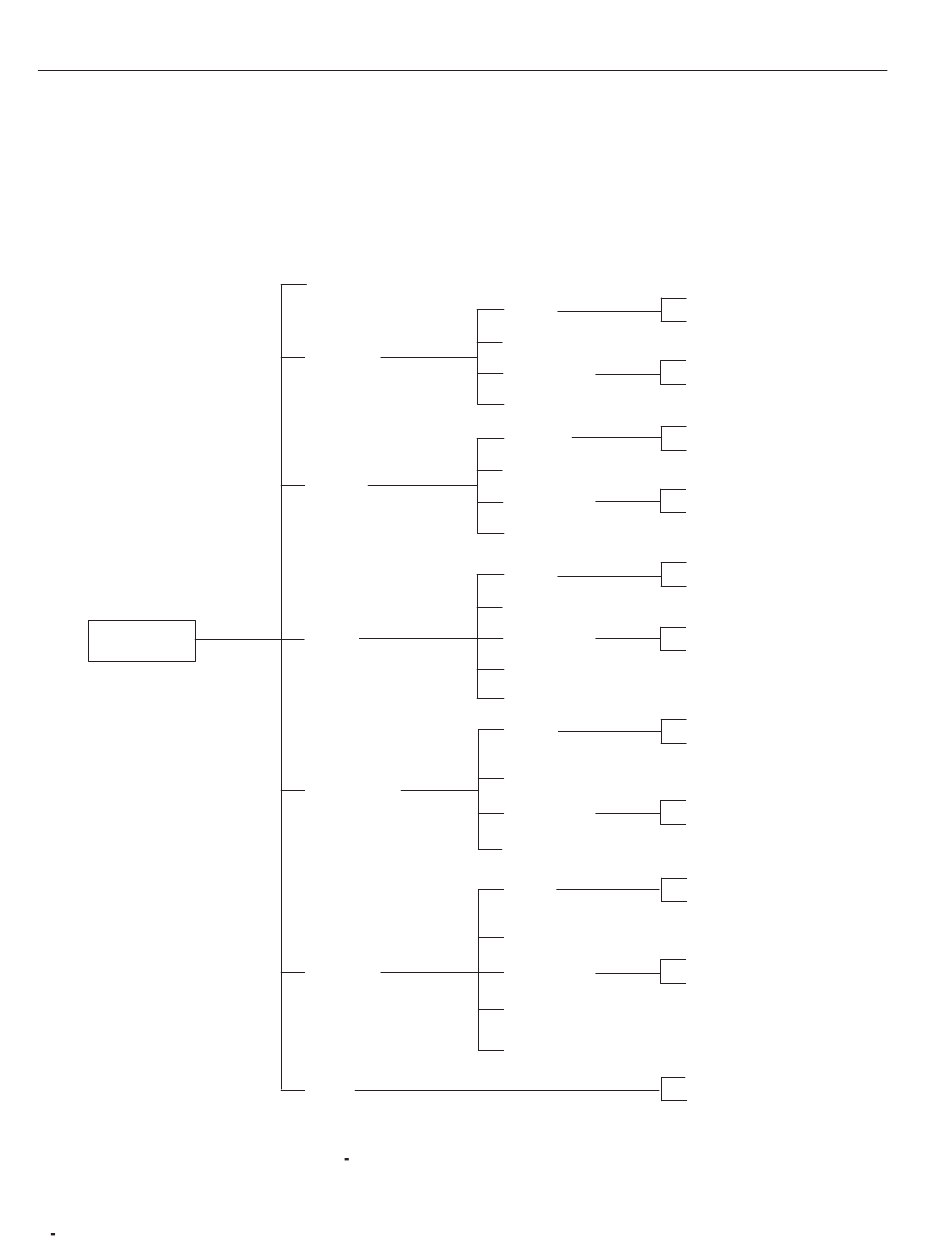

Figure 3 160: MODE Menu Structure
Side Menu
Slope
Level
Impedance
STOP
Polarity
Level
Impedance
STOP
Slope
Level
Impedance
Burst Count
STOP
Slope
Level
Impedance
STOP
Slope
Level
Impedance
Select Autostep
File
STOP
Select Item
Positive
Negative
50 W
1 MW
Positive
Negative
50 W
1 MW
Positive
Negative
50 W
1 MW
Positive
Negative
50 W
1 MW
Positive
Negative
50 W
1 MW
Start
End
