Function Generator Menu Display
1
2
AWG2021 User Manual
Figure 3 -200 shows the general display for the FG mode menu. A description
for each callout follows.

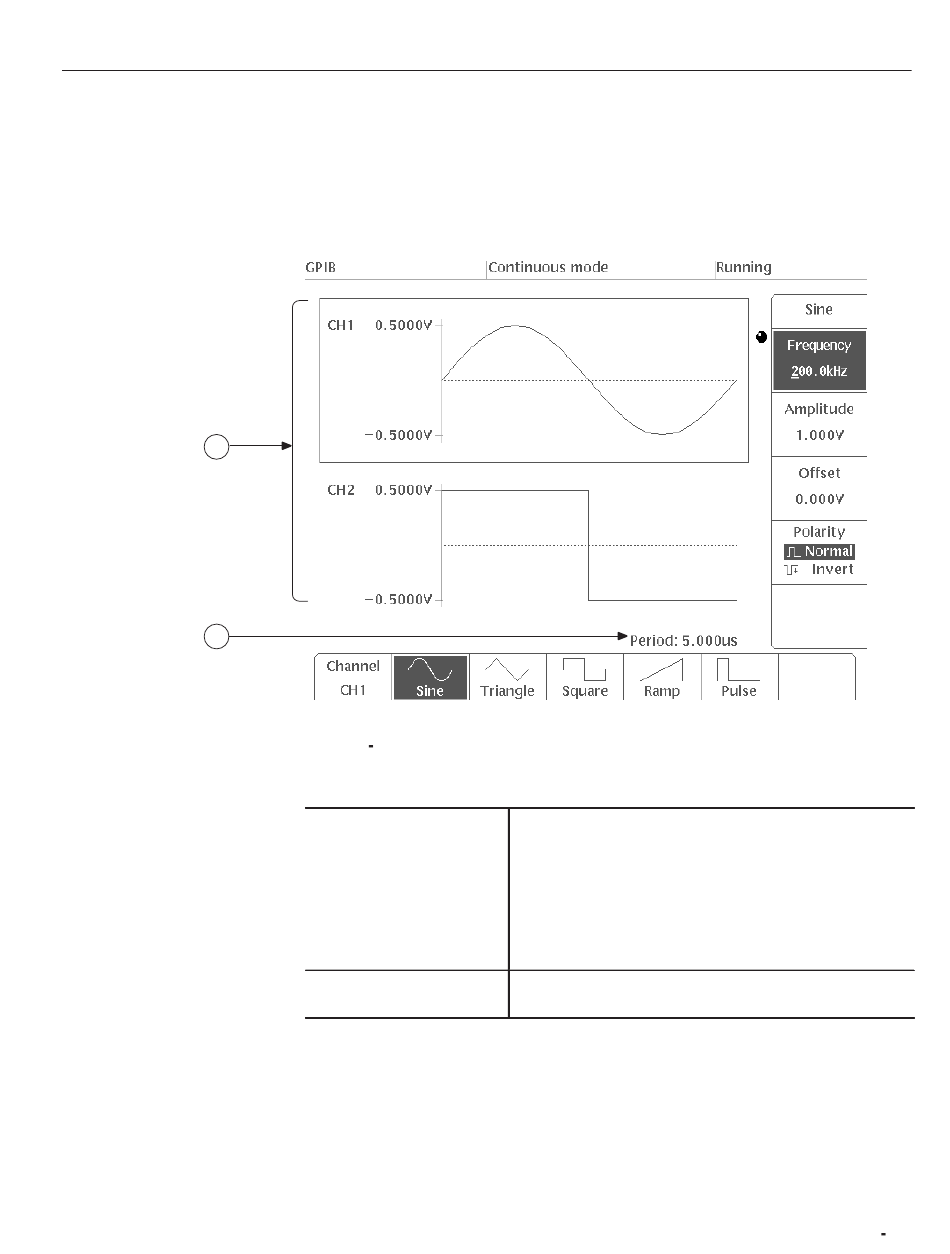

Figure 3 200: FG Mode Menu Display
(1) Channel waveform
display area
(2) Waveform period
Function Waveform Generator Mode
Displays the waveform set for that channel. When the channel
is enclosed by a box, it is possible to change the output
parameters for that waveform. The peak voltage for the
waveform is shown on the vertical axis to the left of the
waveform; this value is determined by the amplitude or the
offset setting. The horizontal axis (the dotted line in the center
of the waveform) indicates the zero line; changing the offset
will cause the zero line to move up or down.
Shows the period for the waveforms. This value is applied to all
waveforms.
