AWG2021 User Manual
3. Select Expand SEQ into WFM from the side menu. You will be asked to
provide a name for the resulting waveform file. See Figure 3 -6. If necessary,
change the default name. See "Renaming a File" described above.

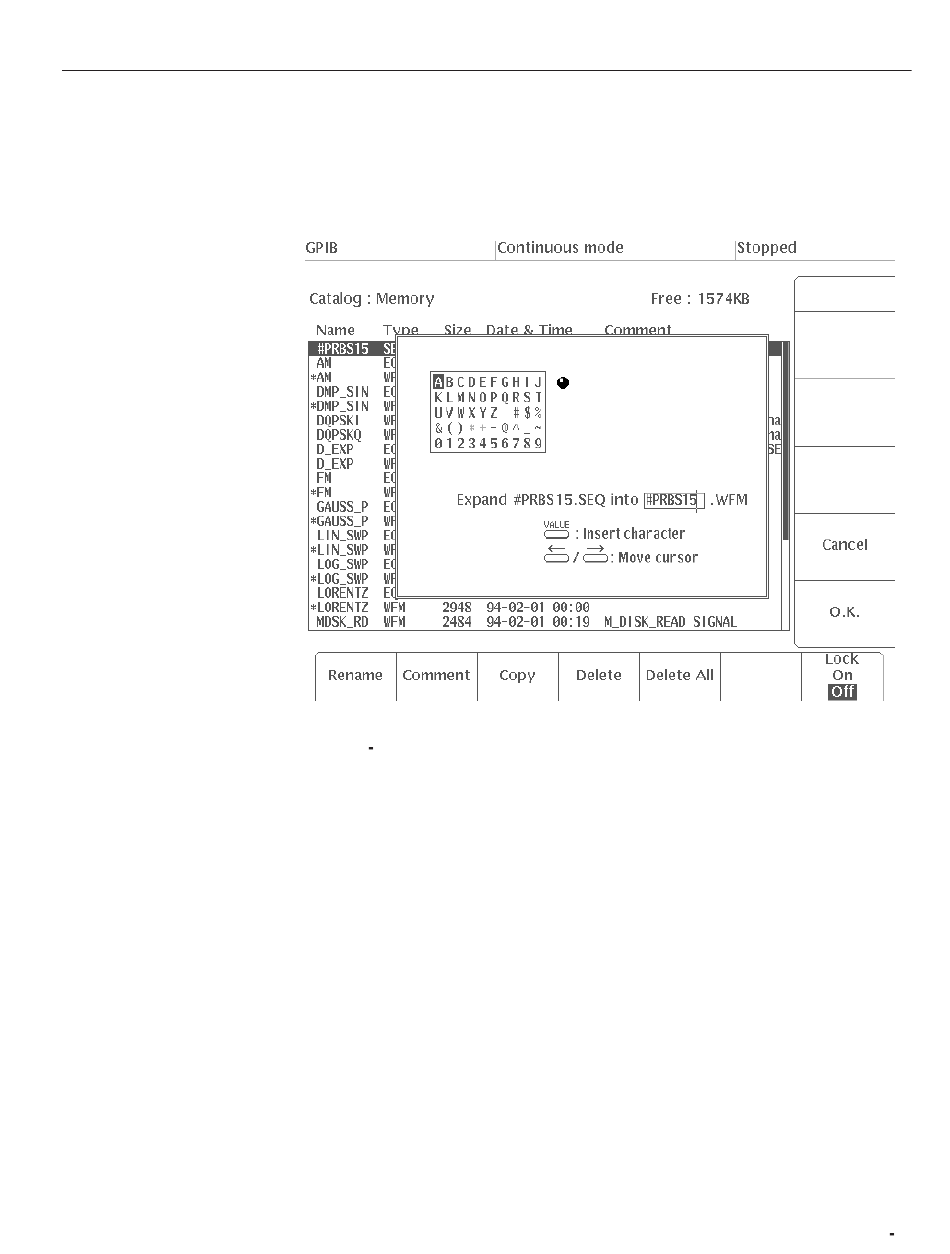

Figure 3 6: Menu Display When Expand SEQ into WFM is Selected
4. Press O.K. to confirm the file name. Press Cancel to cancel the operation.
When O.K. is pressed, the sequence file will be expanded into a waveform
file and the initial menu will reappear. The name of the new file will be
added to the file list in the initial menu. If a waveform file with that name
already exists, you will be asked whether it is all right to overwrite the
existing file with the new data. Be careful when answering this query, as a
"yes" will cause the existing data to be deleted and replaced with the new
file. Pressing "Cancel" will cancel the operation and the initial menu will
reappear.
EDIT Menu
3 13
