EDIT Menu
Entering the Autostep
Editor
Saving Files and Exiting
the Editor
3 172
1V
Step : 1
0V
-1V
1.5V
Step : 2 0V
-1.5V
1V
0V
Step : 3

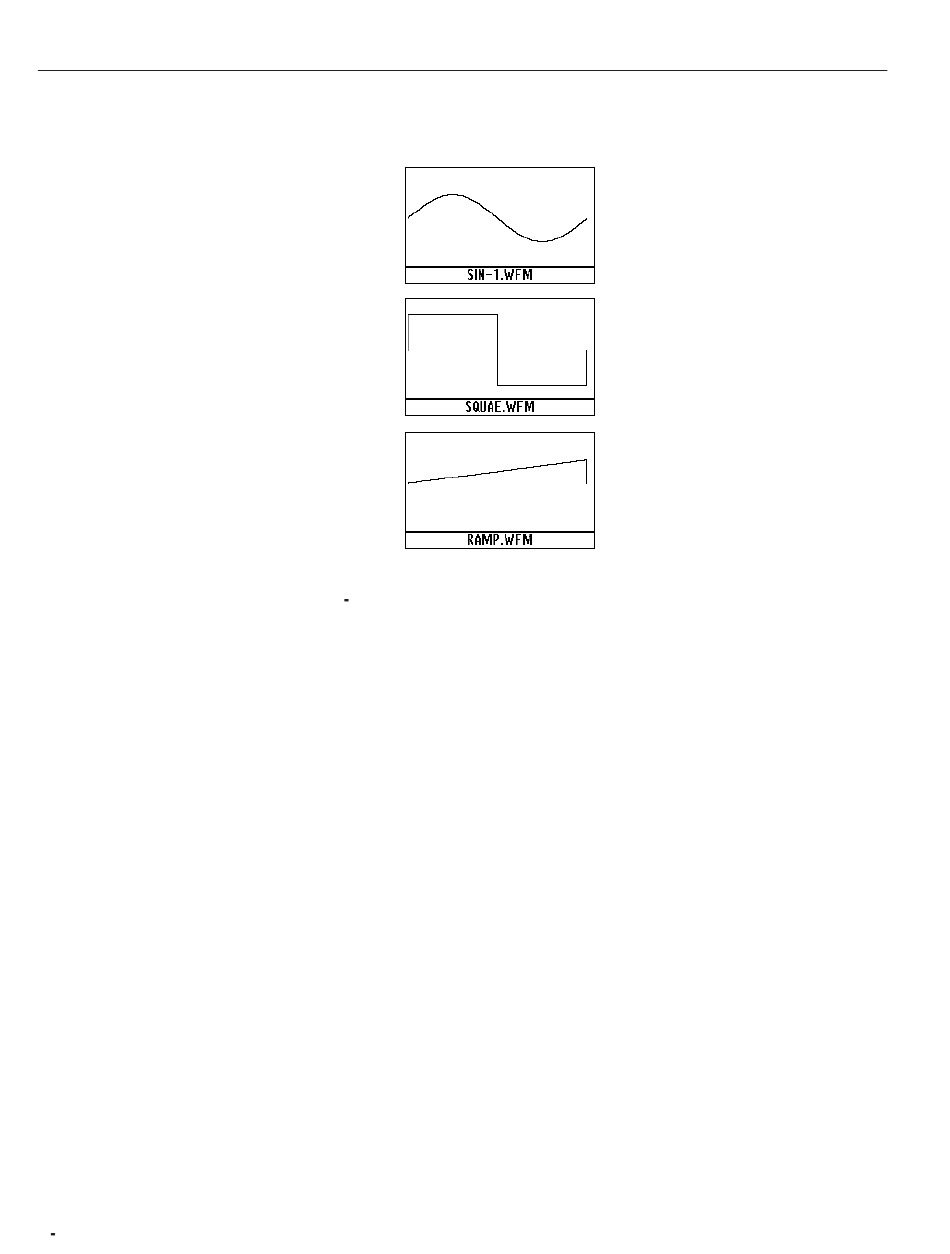

Figure 3 124: Autostep File Data and Output Waveforms
1. Press the EDIT button in the MENU column. The initial EDIT menu will
appear.
2. Select More from the side menu to display the second page of the side
menu: More 2 of 2.
3. Select Edit or New Autostep from the side menu.
Edit
New Autostep
The autostep editor screen will appear.
Select Exit/Write from the bottom menu in the autostep editor to save the file
(which you have either created or edited, depending on the side menu) to the
internal memory of the AWG2021 and exit from the editor.
The same procedure is used to save the file and exit from the autostep editor as
for the waveform editor. See "Saving Files and Exiting the Editor" in the section
on the waveform editor.
CH1
Used to select and edit an existing autostep file
(.AST)
Used to create a new autostep file
