Operating Examples
2 52

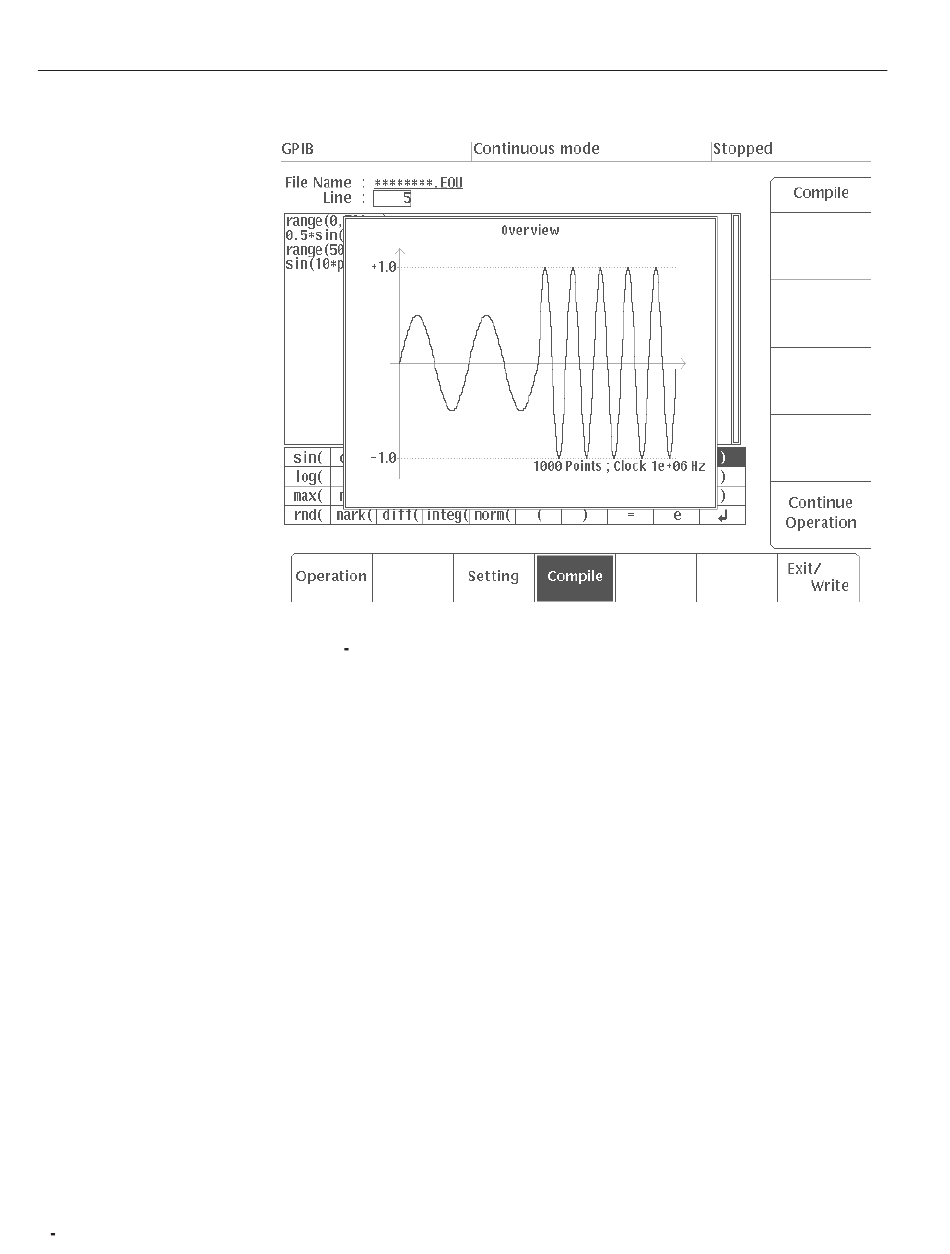

Figure 2 39: Display of Compiled Waveform Data
7. Select Continue Operation from the side menu to return the system to the
previous equation edit menu.
8. Select Exit/Write from the bottom menu.
9. Select Write and Exit from the side menu.
10. Make SAMPLE–4 the file name. For details on how to input the file name,
see Step 24 from the waveform file creation procedure.
11. When you are finished inputting the file name, select O.K. from the
sub-menu.
The equation file (SAMPLE–4.EQU) and the waveform file (SAM-
PLE–4.WFM) of compiled data with the same name are created and the
system returns to the initial menu. See Figure 2 -40.
