Tektronix AWG7101 Instructions Manual
Awg7000 series arbitrary waveform generators declassification and security
Hide thumbs
Also See for AWG7101:
- Technical reference (76 pages) ,
- Quick start user manual (90 pages) ,
- Service manual (140 pages)
Subscribe to Our Youtube Channel
Related Manuals for Tektronix AWG7101
Summary of Contents for Tektronix AWG7101

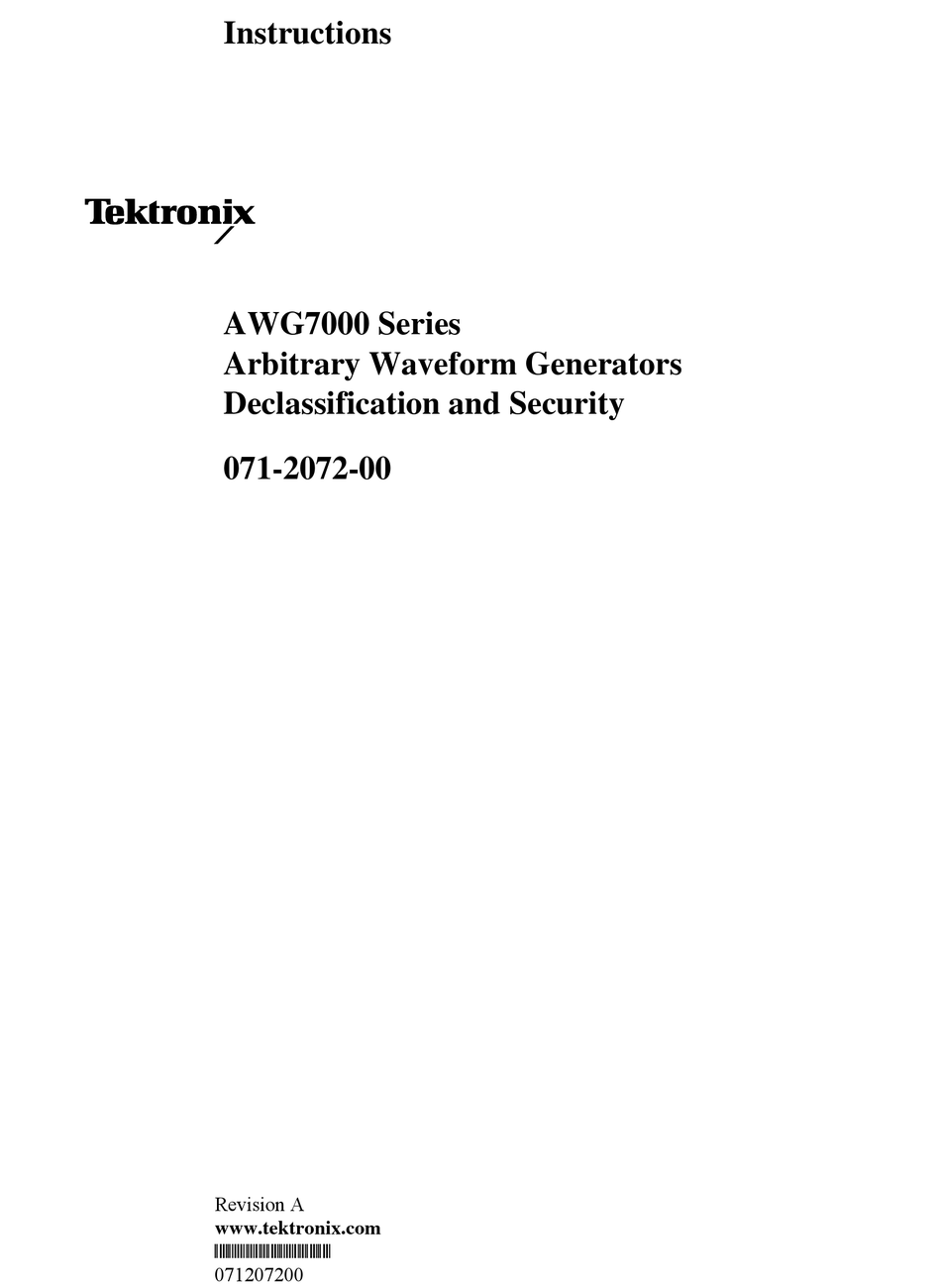

- Page 1 Instructions AWG7000 Series Arbitrary Waveform Generators Declassification and Security 071-2072-00 Revision A www.tektronix.com 071207200 071207200...
- Page 2 Copyright © Tektronix. All rights reserved. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supercedes that in all previously published material. Specifications and price change privileges reserved. TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
-
Page 3: Table Of Contents
Table of Contents Preface ............. Clear and Sanitize Procedures . - Page 4 Table of Contents AWG7000 Series Declassification and Security...
-
Page 5: Preface
AWG7052 and all options AWG7000 Series Arbitrary Waveform Generators Service Manual, Tektronix Related Documents part number 071-1854-XX, available on the Tektronix Web site at www.tektronix.com/manuals AWG7000 Series Arbitrary Waveform Generators Hard Disk Drive Assembly Installation Instructions, Tektronix part number 075-0922-XX, available on the Tektronix Web site at www.tektronix.com/manuals... - Page 6 Preface The following terms may be used in this document: Terms Clear. This removes data on media/memory before reusing it in a secured area. All reusable memory is cleared to deny access to previously stored information by standard means of access. Erase.
-
Page 7: Clear And Sanitize Procedures
Clear and Sanitize Procedures Memory Devices The following tables list the volatile and nonvolatile memory devices. Table 1: Volatile memory devices Type and User minimum size Function modifiable Data input method Location Process to clear DDR2 SRAM Microprocessor Written by processor Micro-ATX board Remove the power source 64 M x 64 bits... - Page 8 Clear and Sanitize Procedures Table 2: Nonvolatile memory devices (cont.) User Type and minimum size Function modifiable Data input method Location Process to sanitize EEPROM Contains count for Not writable OUT10G board Not applicable 64 K actuation of relays. During normal instrument operation. The following instructions give a method to disable the built-in USB and CD-RW Disabling USB and CD-RW capability.
- Page 9 Clear and Sanitize Procedures 12. Expand DVD/CD-ROM drives in the Device Manager window. 13. Right-click TEAC DW-224E-C, and select Disable. 14. Reboot the instrument to make the changes effective. 15. We suggest that you password-protect the Windows Administrator account and set up Guest accounts for end users so that these changes cannot be easily reversed.
- Page 10 Removable Hard Drive instrument user online help (AWG Reference > Removable Hard Disk). You can also refer to the AWG7000 Series HDD Installation Instructions, Tektronix part number 075-0922-XX. All user-storable data is stored on the rear-panel removable hard drive. There are DOD-approved scrubbing software packages available for the hard drive.
-
Page 11: Media Storage And Data Export Devices
Table 2. Additional removable hard drive (Tektronix part number 065-0753-00) can be purchased from Tektronix. If the hard drive has been removed and a new hard drive is installed, you need to install the operating system and instrument application software. -
Page 12: Troubleshooting
If your instrument is not functioning, proceed as follows. Refer to your organization’s policies regarding storage or disposal of any removed items. Remove the hard disk drive before returning the instrument to Tektronix for repair. Hard Disk Drive Remove all CDs and DVDs.
