After the first time 6 and 7 appear, 0 will be treated as 6 and 1 will be treated
as 7
H 6 and 7 read the input data and search for the same pattern. When the same
pattern has been detected, the portion of the data that has been read is
returned to its original status and then the next pattern is analyzed.
H 0, 1, 2, 3, 4, 5, 6 and 7 can be used together

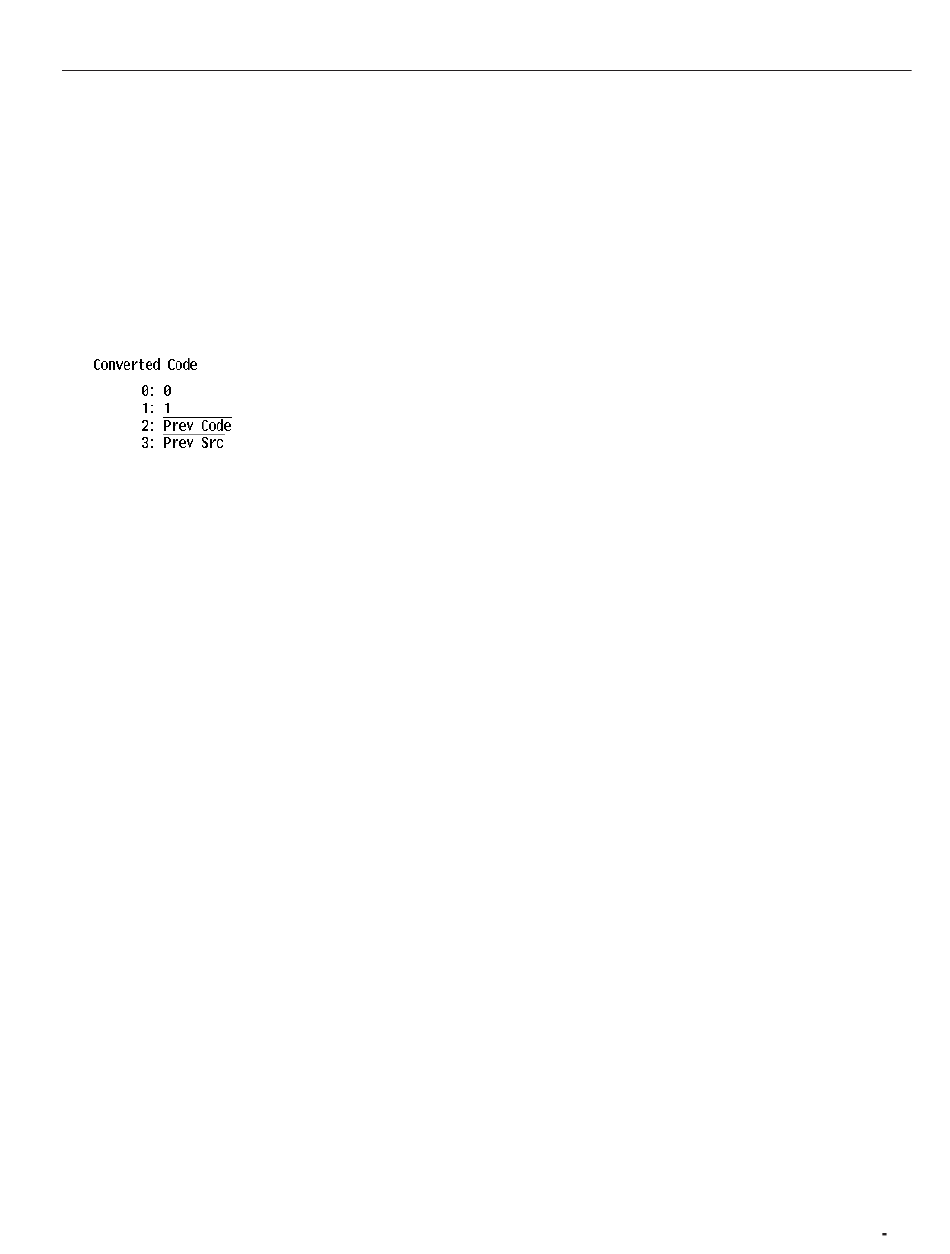

Converted Code writes the output data pattern
0 Sets the output data to LOW
1 Sets the output data to HIGH
2 Turns the inverse of the preceding Converted Code data item into
output data
3 Turns the inverse of the preceding Source Data Pattern data item
into output data
Initial Source is the default value for the source pattern. Affects output data
when the Source Data Pattern is 4 and 5 and when 3 is used for Converted
Code.
Initial Code is the default value for the output pattern. Affects output data
when the Source Data Pattern is 2 and 3; when 2 is used for Converted
Code; and when Out [1/0] is set to Invert/Keep.
Out/[1/O] determines the handling of 1/0 for data converted using Con-
verted Code.
High/Low 1: data HIGH 0: data LOW
Invert/Keep 1: output is inverted 0: data is output as is
