Loading Files from Mass Memory into Internal Memory
AWG2021 User Manual
If Disk or NVRam has been selected for Device, the LOAD menu appears when
the Load item in the bottom menu is selected. See Figure 3 -172. The internal
memory file list is displayed on the upper screen and the list of files saved onto
mass memory is displayed on the lower screen.

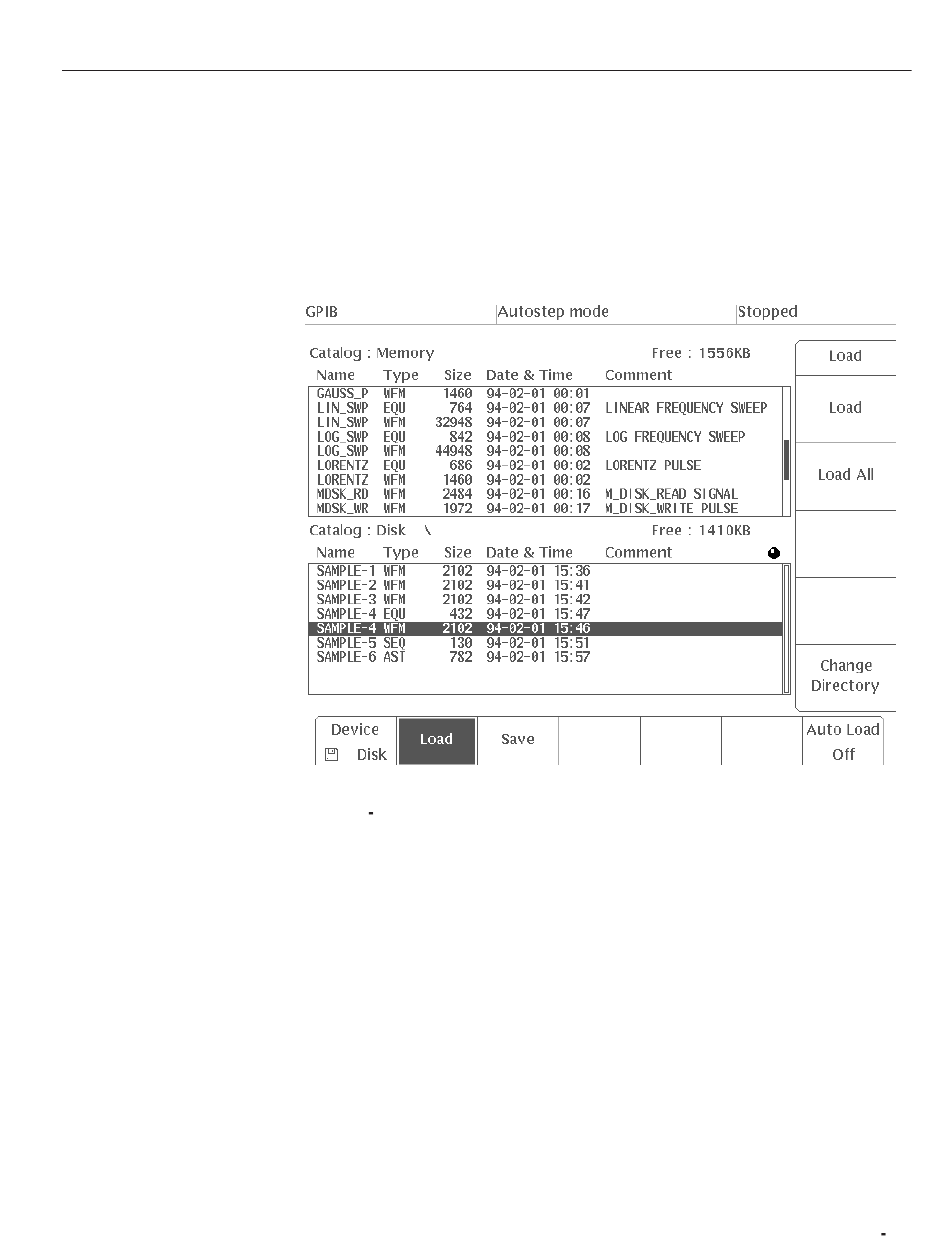

Figure 3 172: LOAD Menu
To load files into internal memory from mass memory, perform these steps:
1. Select Device from the bottom menu.
2. Select Disk or NVRam from the side menu.
When the Device is Disk, the Change Directory item is displayed on the
side menu. When this item is selected, the current directory can be changed.
This item is the same as the Change Directory item on the UTILITY menu.
See the explanation in "Using the Disk Menu" in Section 4E, "UTILITY
Menu."
There is no directory hierarchy for the NVRam.
3. Select Load from the bottom menu.
LOAD/SAVE Menu
