AWG2021 User Manual
before Dual Waveform Math... was selected. Figure 3 -52 displays the
waveforms added (Add) between the vertical bar cursors.

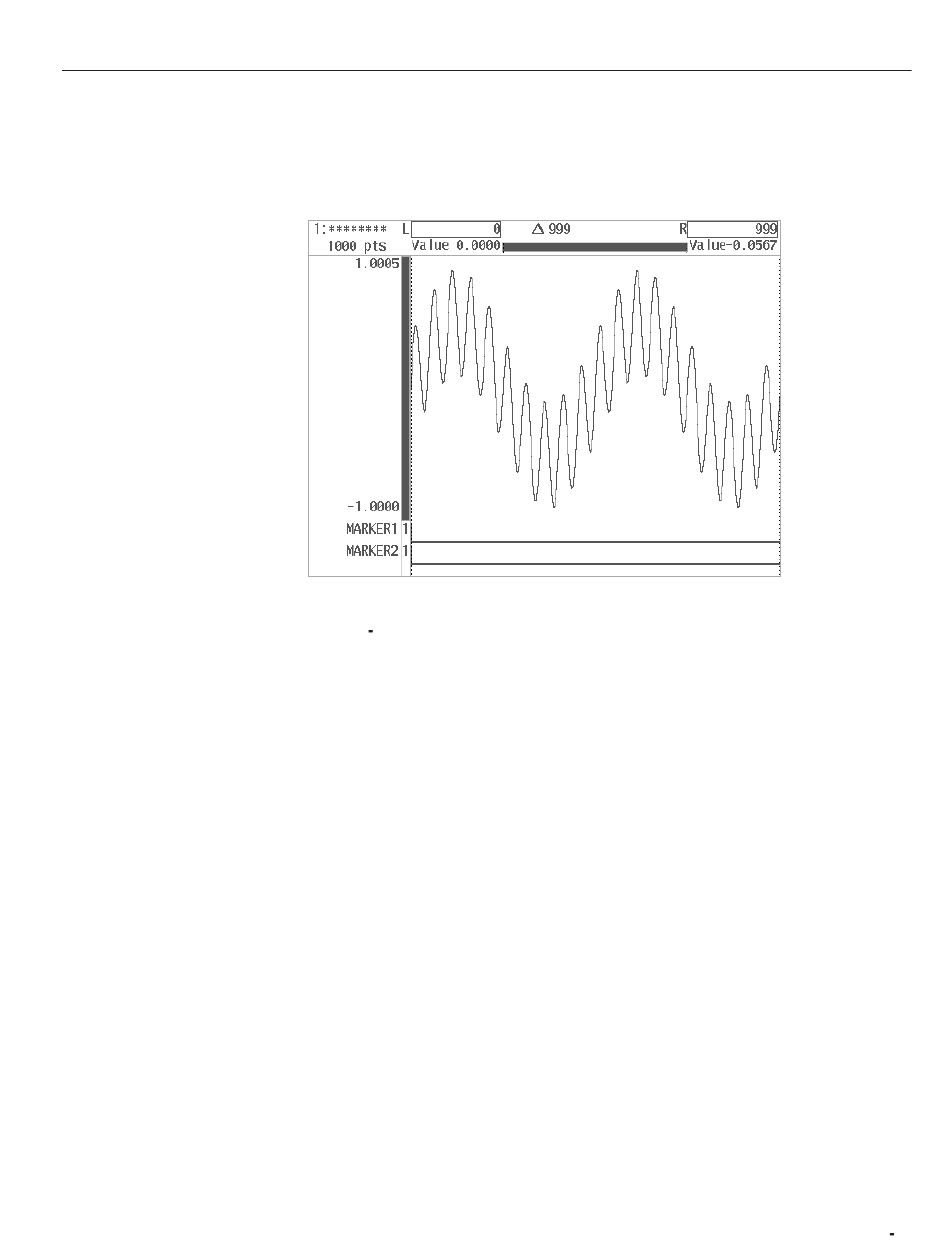

Figure 3 52: Waveform Addition Display
If you select Cancel, the menu returns to the menu on display before Dual
Waveform Math... was selected without any calculations being made.
Data placed into the paste buffer with Cut or Copy is listed at the top of the file
list with the name "Paste Buffer." When this item is selected, an operation is
carried out with the data in the paste buffer.
Specified Region Shift. The Region Shift... item shifts a specified region of a
waveform either right or left, towards the center or away from the center. If the
specified amount of the shift is less than the sampling interval, the original
waveform is resampled using data interpolation to derive the shifted values. The
Region Shift... item has the following menu configuration.
EDIT Menu
3 71
