Appendix B: Performance Characteristics
Table B 3: Electrical Characteristics (Cont.)
Characteristics
** MARKER1
** Amplitude
Rise/Fall time
Marker to Signal delay
** MARKER2
** Amplitude
Rise/Fall time
Marker to Signal delay
** CLOCK
** Amplitude
ECL DIGITAL DATA OUT (Option 03)
Skew between Data
Clock to Data delay
** TTL DIGITAL DATA OUT (Option 04)
** Amplitude
Output Data rate
Clock to Data delay (see Figure B 1)
Middle point of the Data
Data
50%
Clock

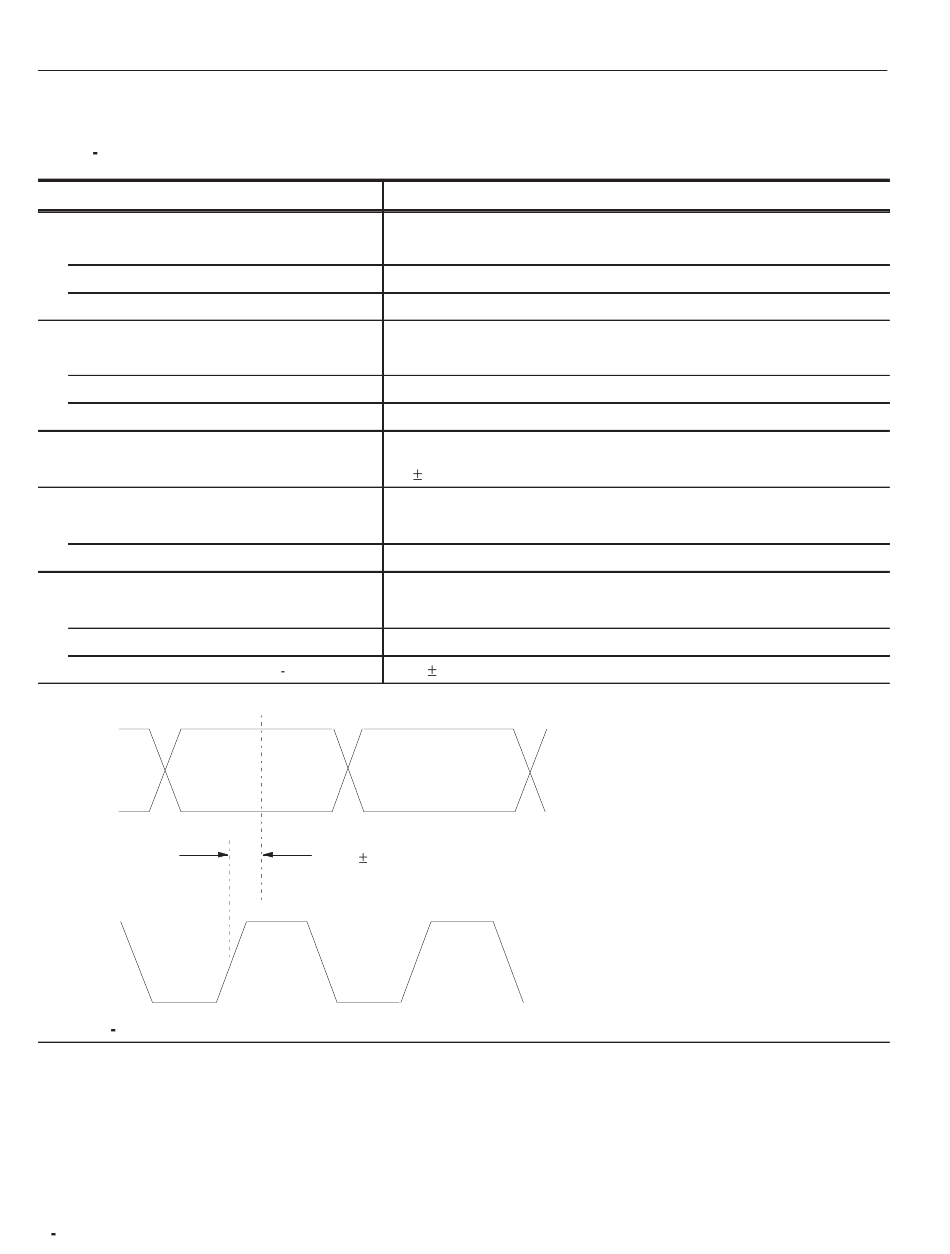

Figure B 1: Timing for the Data and Clock Signals
B 8
Description
2.5 V (+5%, -10%) into 50 W, 5 V (+5%, -10%) into open circuit
< 8 ns
within 15 ns
2.5 V (+5%, -10%) into 50 W, 5 V (+5%, -10%) into open circuit
< 8 ns
within 15 ns
1 V 0.3 V into 50 W
within 1 ns
within 2 ns
>2 V into 50 W
100 MB/s minimum
within 4 ns
Within 4 ns
