AWG2021 User Manual
The waveform for that file will appear along with the waveform point size,
the clock frequency and the voltage value.
6. Select Continue from the sub-menu.
The menu shown before you selected Show Catalog Entry will reappear.
7. Select Set from the side menu.
The selected file will be inserted and the output parameters for that
waveform will be set.

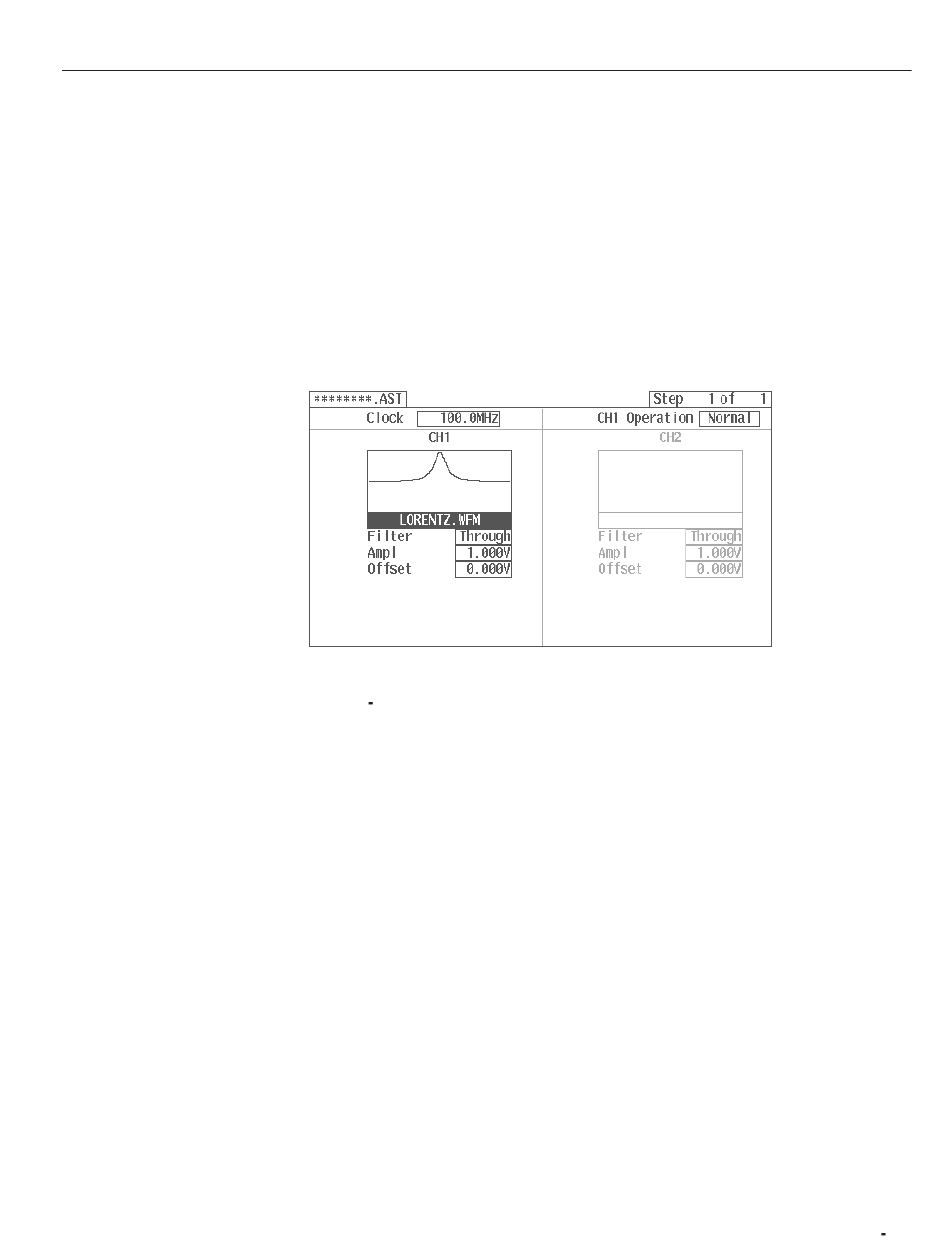

Figure 3 130: Setting a File
Selecting Cancel will cancel the setting operation and the previous menu
will appear.
Use Set Without Parameter instead of Set when you want to designate the
waveform without changing the parameters. The default parameters will be
set when the editor is opened using New Autostep or when a waveform is
designated for a new step added with Insert New Step or Append New
Step. The default values for the output parameters are shown below.
Clock
CH1 Operation
Filter
Ampl
Offset
Among them, Clock and CH1 Operation depend on the CH1 file.
Use Clear from the side menu to delete the file setting for the channel
indicated by the cursor.
100.0MHz
Normal
Through
1.000V
0.000V
EDIT Menu
