Figure 3 43: Square Calculation
AWG2021 User Manual
Figure 3 42: Absolute Calculation
7. Select Go Back from the sub-menu. The system returns from the Single
Waveform Math... sub-menu to the side menu.

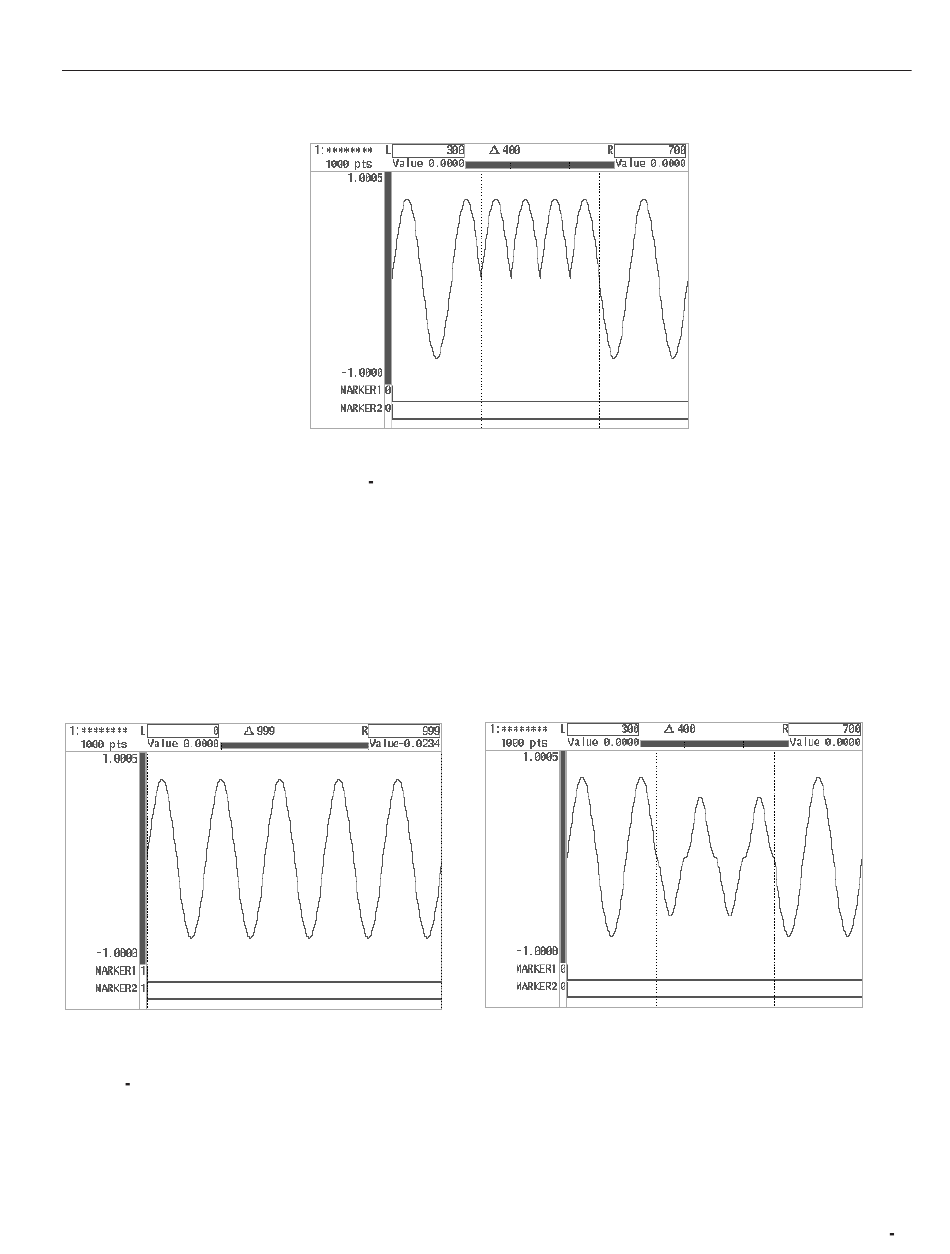

Calculation Examples. The following diagrams show examples of a waveform
before and after various calculations are performed.
H Square. Doubles the absolute value for the amplitude
Before
EDIT Menu
After
3 65
