Check Clock Amplitude
AWG2021 User Manual
Table C 3: Clock Frequency Accuracy
Clock Frequency
150 MHz
1 MHz
1 kHz
10 Hz
4. End procedure: Disconnect the frequency counter.
Electrical
Characteristic Checked
Equipment Required
Prerequisites
1. Install test hookup and set test equipment controls:
a. Hook up oscilloscope: Connect the AWG2021 rear-panel CLOCK OUT
connector through a coaxial cable and SMA-BNC adapter to the
oscilloscope CH1 vertical input (see Figure C-14).
AWG2021
AWG2021

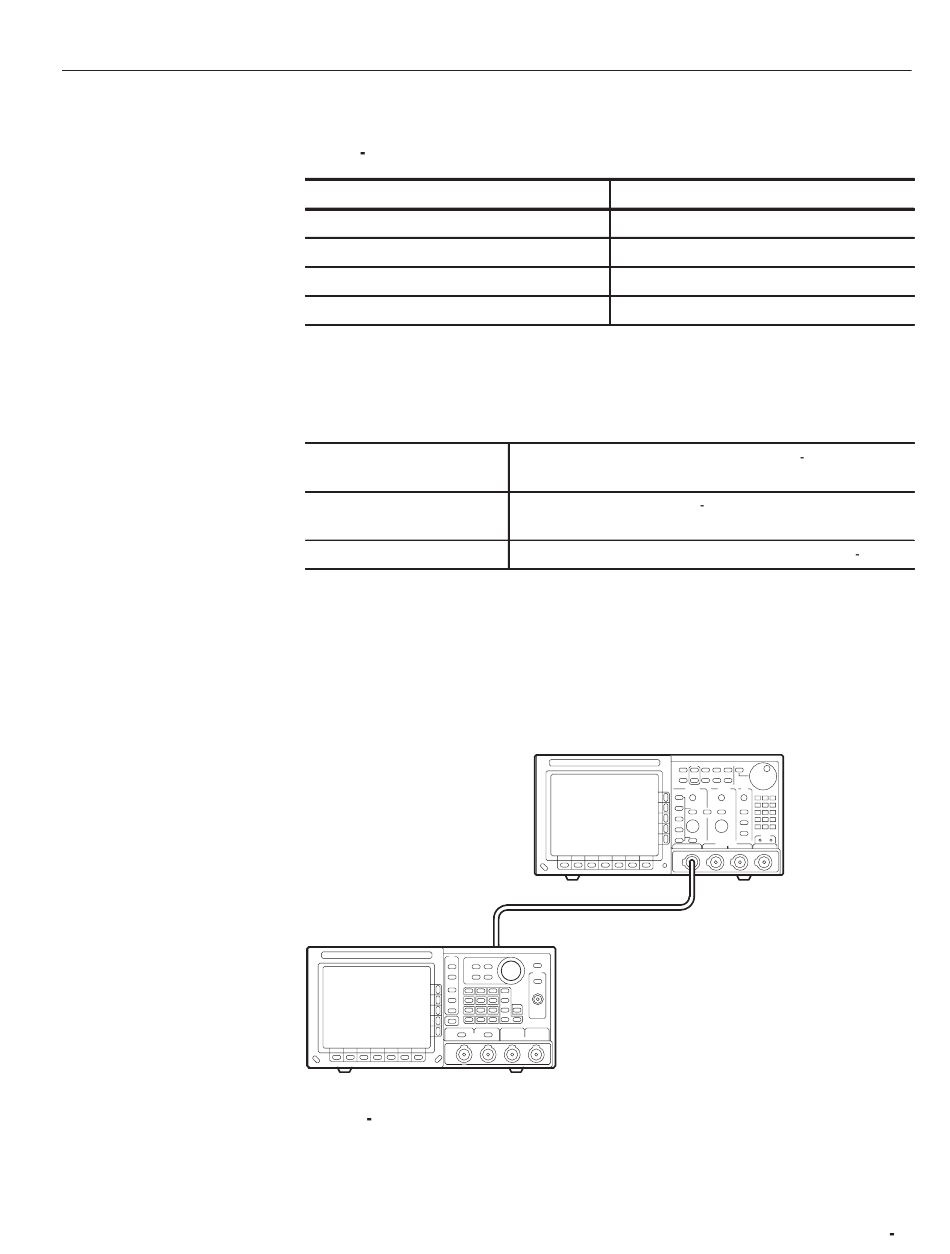

Figure C 14: Clock Amplitude Initial Test Hookup
Appendix C: Performance Verification
Frequency Range
149.9925 MHz - 150.0075 MHz
0.99995 MHz – 1.00005 MHz
0.99995 kHz - 1.00005 kHz
9.9995 Hz - 10.0005 Hz
Auxiliary Outputs, Clock, Amplitude, on page B 8.
A 50 W coaxial cable, an SMA BNC adapter, and an
oscilloscope.
The AWG2021 meets the prerequisites listed on page C 5.
Oscilloscope
TDS 540
C 29
