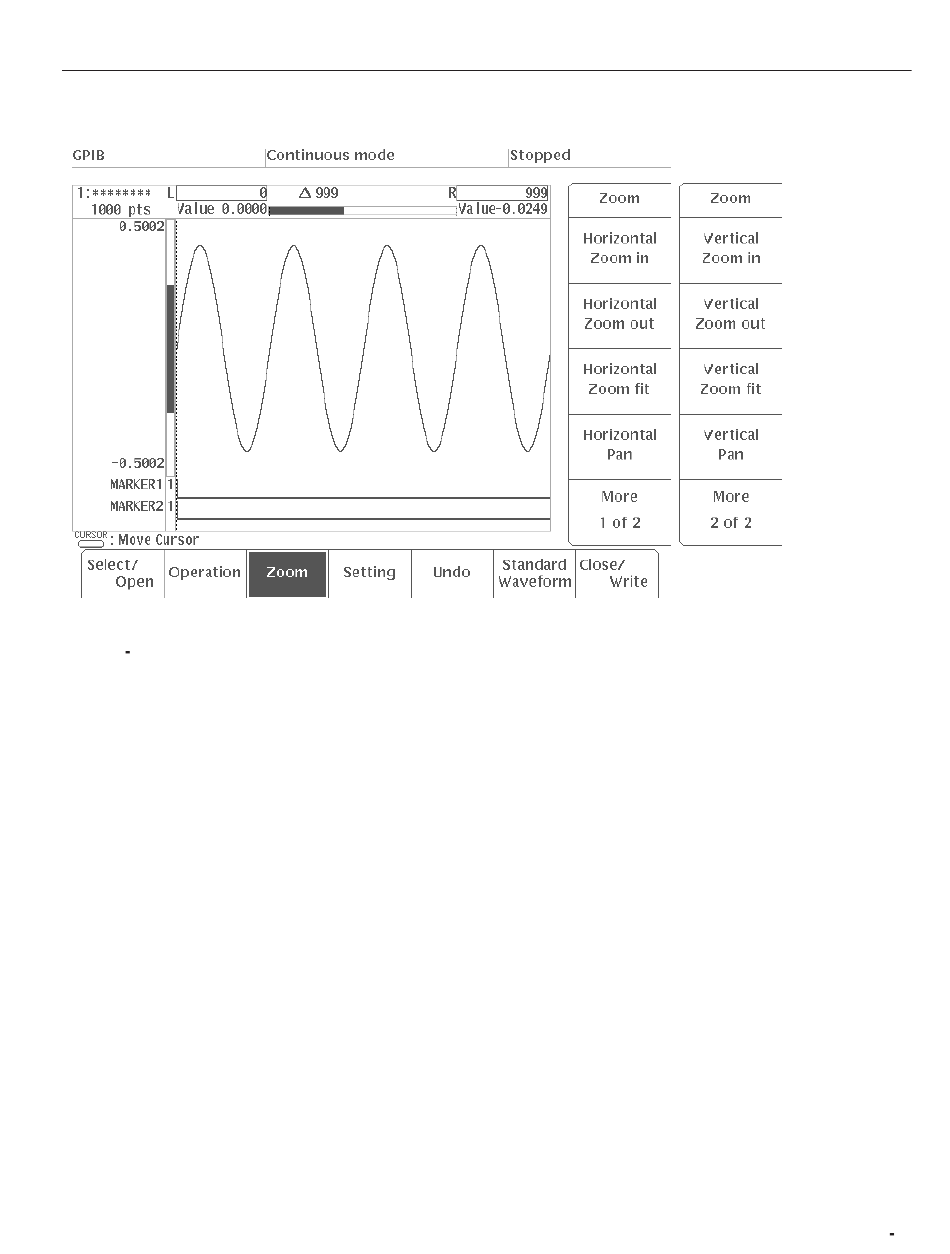

Figure 3 72: Zoom Menu
AWG2021 User Manual
Horizontal Zooming. When the waveform is enlarged horizontally using the
Horizontal Zoom in item, three additional items are displayed in the side menu:
Horizontal Zoom out
Horizontal Zoom fit
Horizontal Pan
1. Select Zoom from the bottom menu.
2. Press the CURSOR button on the front panel.
3. Using the general purpose knob, move the active vertical bar cursor to the
center of the position at which you want the waveform to be displayed.
Horizontal waveform enlargement will be centered around the active vertical
bar cursor.
4. Select Horizontal Zoom in from the side menu. The waveform will be
enlarged horizontally.
Used to reduce the waveform
Used to return to normal waveform size (x1)
Used to scroll through the waveform when it
is enlarged
