Use the sequence editor to edit files with the extension of .SEQ. Sequence files
assemble a number of waveforms or sequence files in order. The file data
contains waveform file names in sequence, their repetition counts, and the
sequence waveform output parameters. Sequences may be up to approximately
4000 lines long.

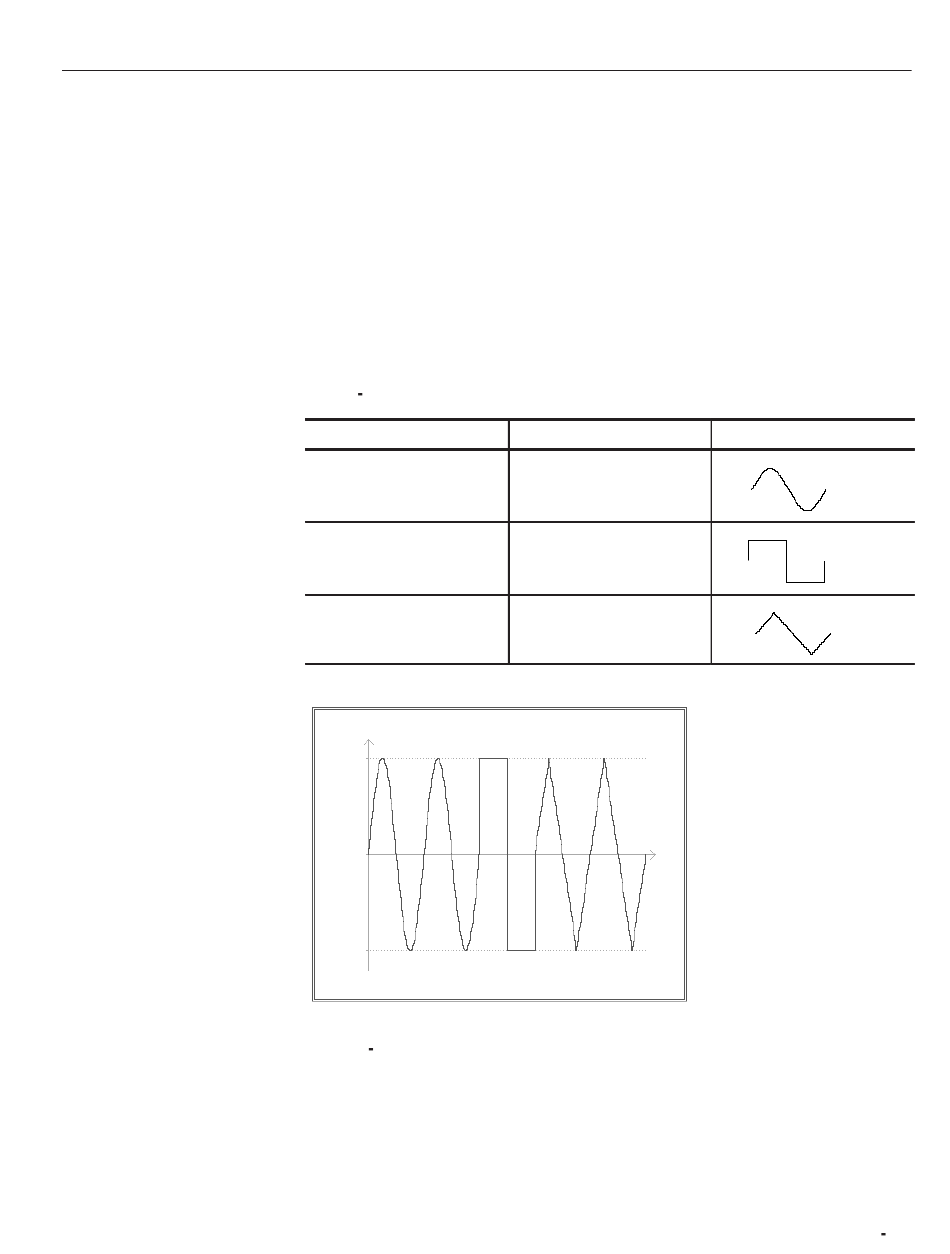

Figure 3 -119 shows an example of the data in a sequence file and the waveform
display for that data.
Table 3 7: Sequence File
File Name
WAVE-1.WFM
WAVE-2.WFM
WAVE-3.WFM
Figure 3 119: Sequence File Data and Sample Waveform Display
Number of Repetitions
2
1
2
