AWG2021 User Manual
in progress, output stops after the end point of that waveform and then the
waveform for the next step is output.

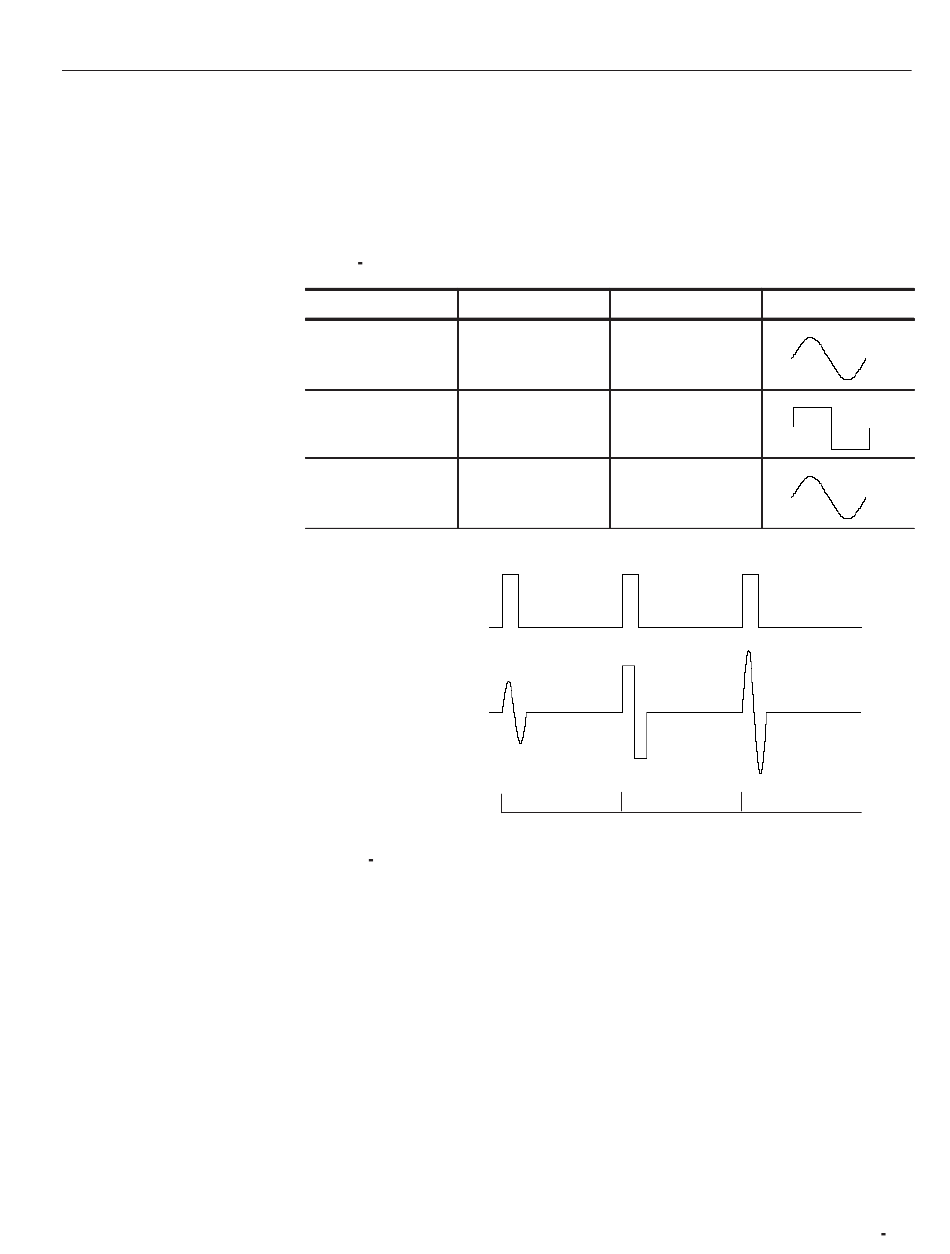

Figure 3 -166 shows the output waveform for an external trigger signal.
Table 3 17: Autostep File
Step File Name
Step:1 WAVE1.WFM
Step:2 WAVE2.WFM
Step:3 WAVE1.WFM
External Trigger
Signal
2 V
Output Signal
-2 V
Figure 3 166: Output Waveform for External Trigger Signal in Autostep Mode
Starting an Autostep Program.
1. Select Autostep from the bottom menu.
2. Choose Select Autostep File from the side menu. When this item is
selected, the list of autostep files created with the autostep editor is
displayed. See Figure 3 -167.
Output Conditions
Amplitude 2 V
Offset 0 V
Amplitude 3 V
Offset 0 V
Amplitude 4 V
Offset 0 V
Step:1 Step:2
MODE Menu
Waveform
Step:3
3 239
