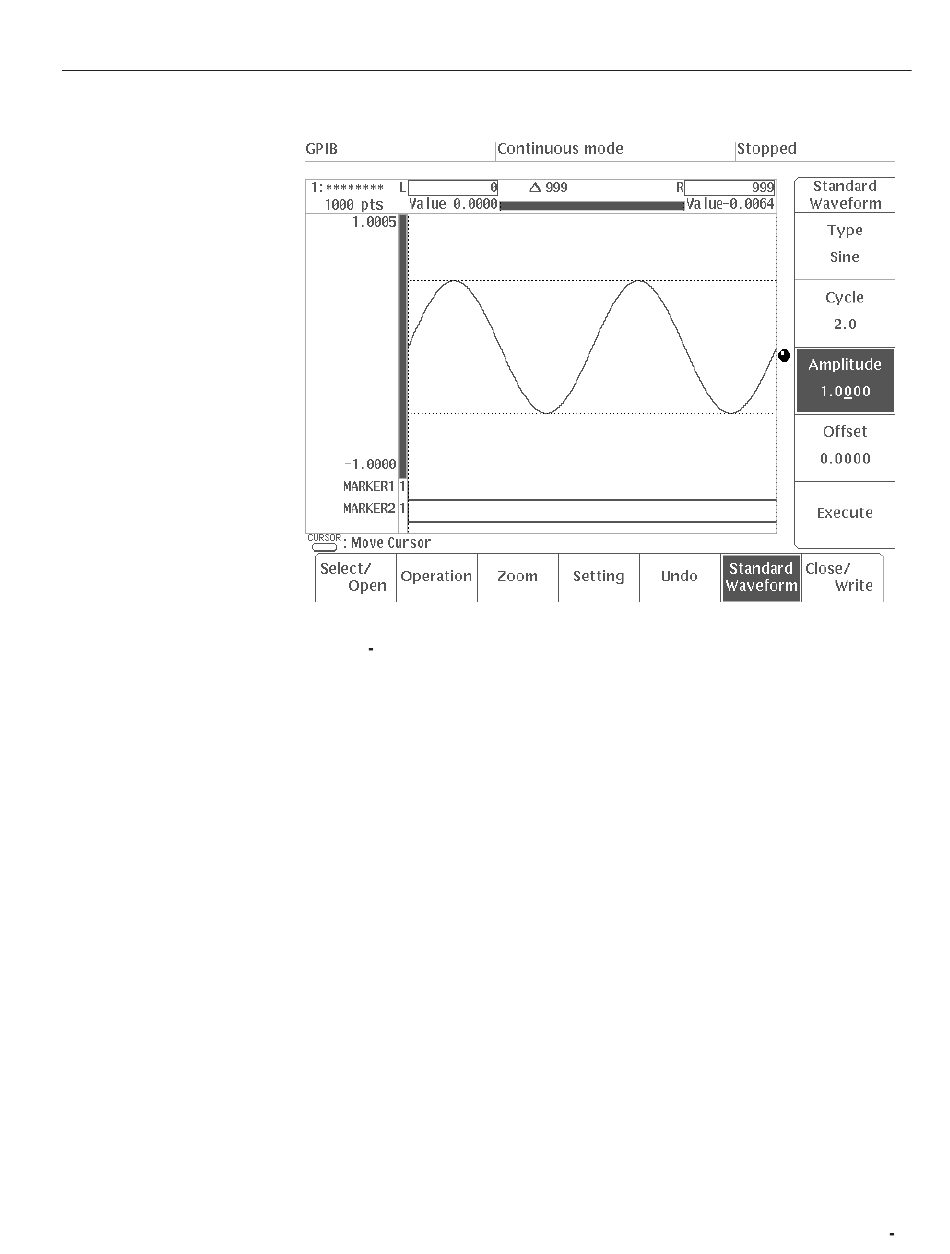

Figure 3 20: Creating a Sine Wave
Procedure 2: Adding a Waveform to Existing Data. In this example, you will add
noise to the sine wave you created in Procedure 1. The procedure starts from
where you left off in Procedure 1.
1. Select Type from the side menu. Turn the general purpose knob or press the
Type button in the side menu and select Add Noise.
2. Select Amplitude from the side menu. Using the numeric keys or the
general purpose knob, set the p
3. Select Execute from the side menu.
When you select Execute, a noise waveform will be added to the sine wave
displayed between the left and right vertical bar cursors. See Figure 3 -21.
p amplitude for the noise to 0.1.
-
EDIT Menu
3 39
