Operating Examples
Example 5: Loading Waveforms From Other Instruments
2 74
The AWG2021 can transfer waveforms via a GPIB cable from a digital storage
oscilloscope (DSO).
In Example 5, you will transfer waveforms from a Tektronix TDS series digital
storage oscilloscope.

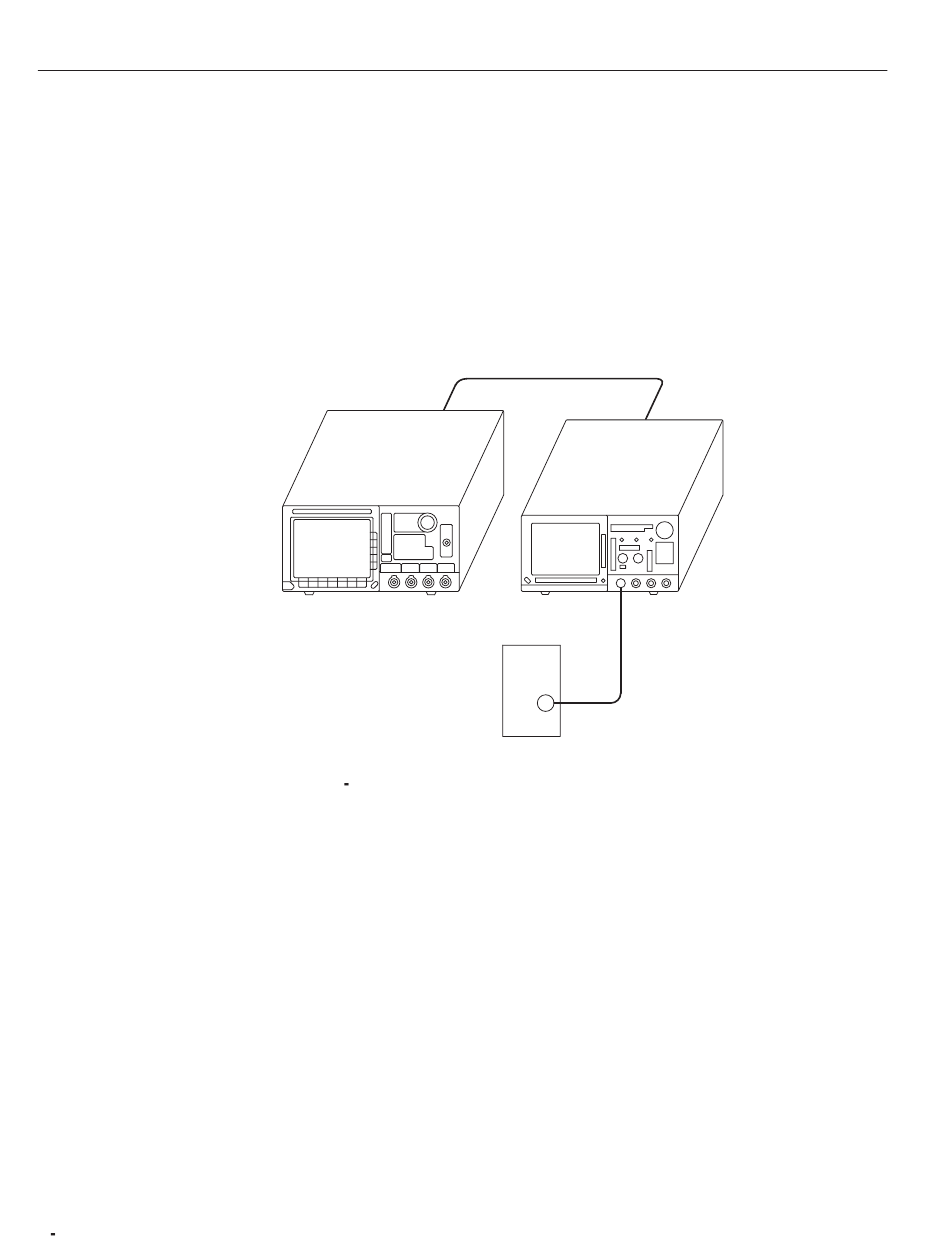

1. Connect the AWG2021 and the other instruments as shown in Figure 2 -62.
IEEE STD 488
Connector
AWG2021
Signal
Generator
Figure 2 62: Connections for Example 5
2. Adjust the amplitude of the signals from the signal generator so that the
waveform is displayed on the DSO screen with the amplitude and sweep
speed shown in Figure 2 -63.
GPIB Cable
GPIB
Connector
DSO
CH 1
50 W Cable
OUT
