FFT Editor Menu Display
AWG2021 User Manual

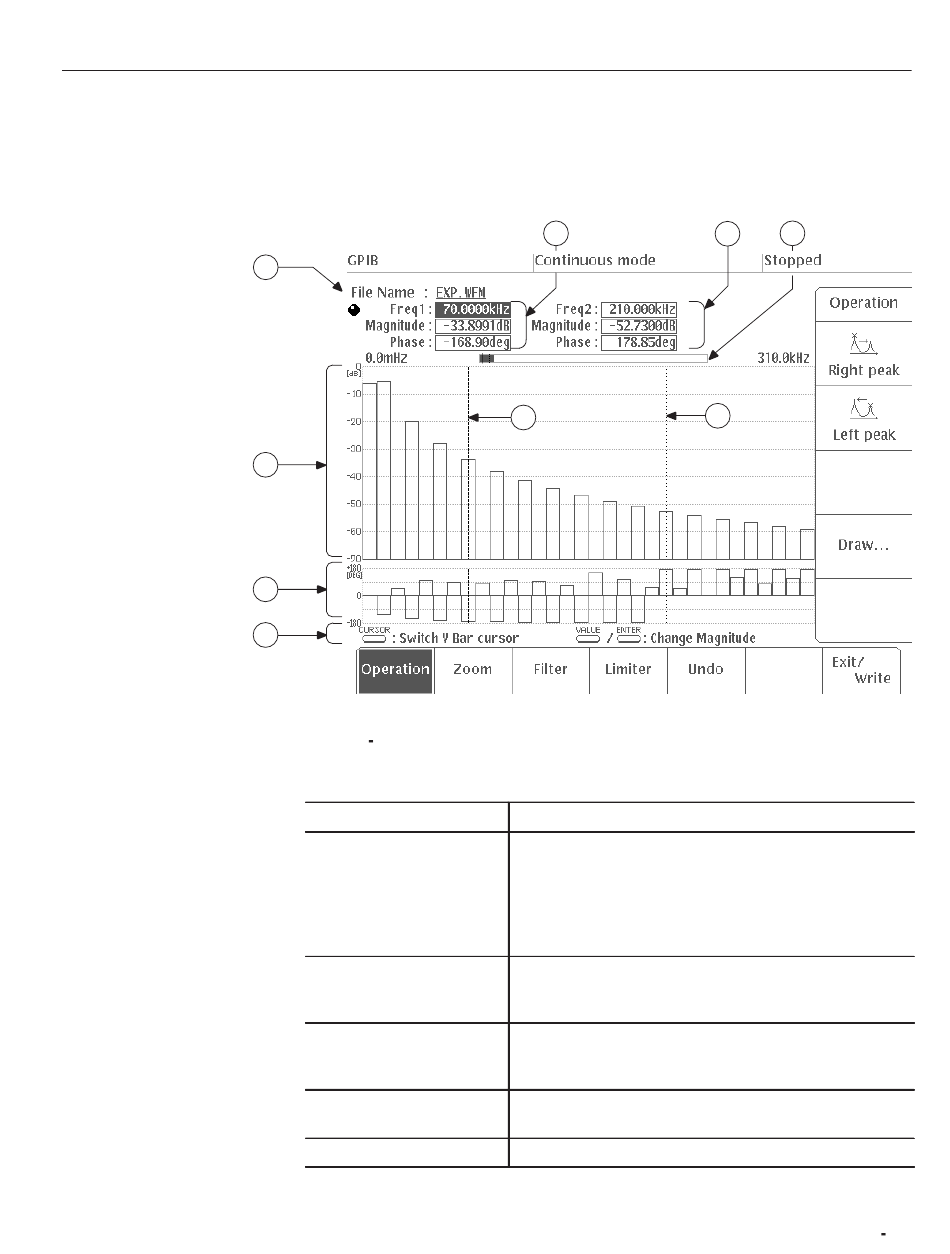

Figure 3 -143 shows the general FFT editor display. A description for each
callout follows.
1
5
6
9
Figure 3 143: FFT Editor CRT Display
(1) File Name
(2) Freq1:
Magnitude:
Phase:
(3) Freq2:
Magnitude:
Phase:
(4) Scroll Indicator
(5) Magnitude Display Area
(6) Phase Display Area
2
7
This is the name of the waveform file being edited.
This section shows the frequency, magnitude and phase for the
position of the left vertical bar cursor. Use the CURSOR button
to toggle between the left and right vertical bar cursors. Use
the VALUE button to toggle between magnitude and phase. A
knob icon indicates that an item is active. Magnitude values
are expressed in dB and phase values are expressed in deg.
This section shows the frequency, magnitude and phase for the
position of the right vertical bar cursor.
This item shows the position of the display area within the
overall waveform. The area displayed on the screen is
displayed inverted.
This area displays the magnitudes for the frequency
components.
This area displays the phases for the frequency components.
EDIT Menu
3
4
8
