UTILITY Menu
Diagnostics and
Calibrations
3 290

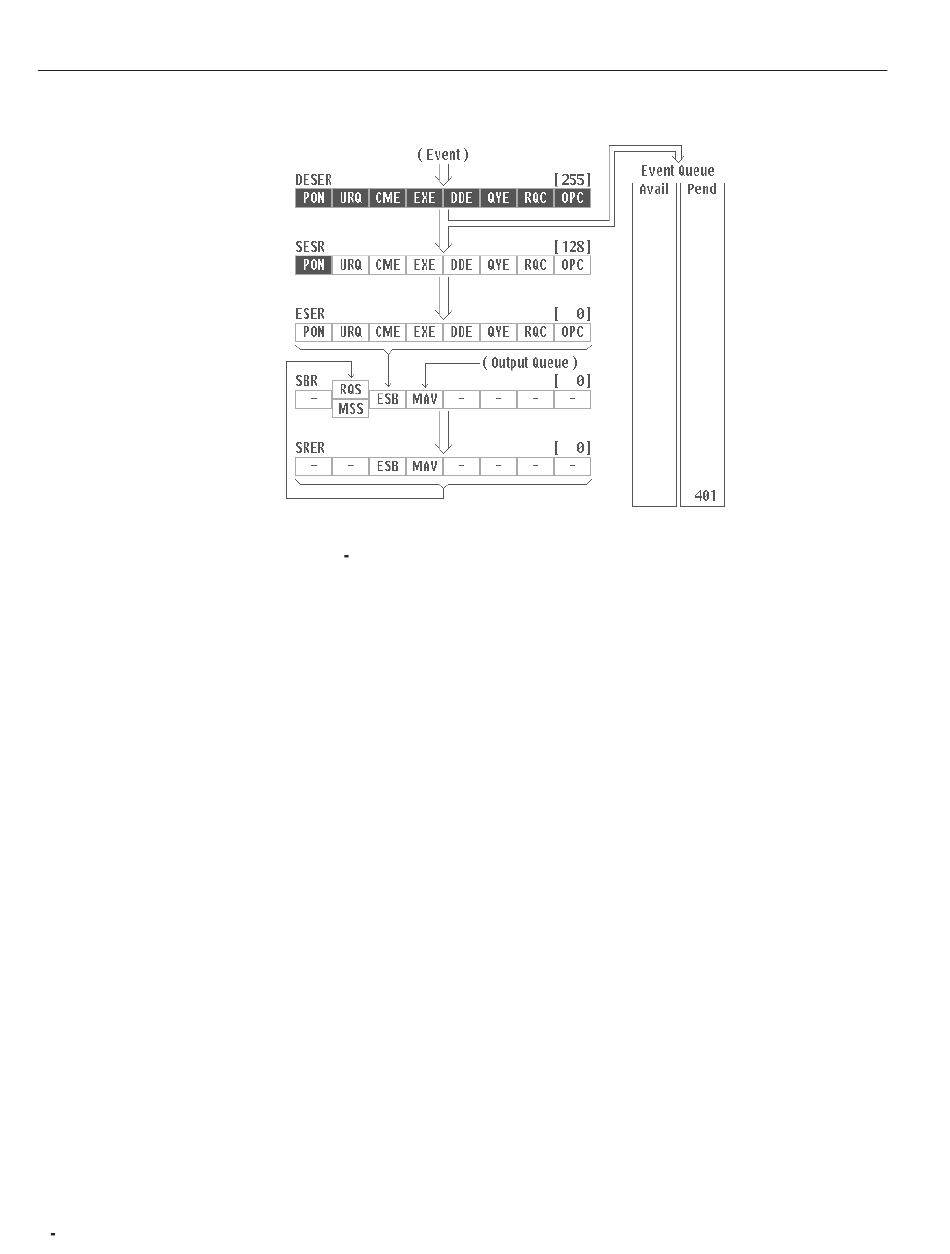

Figure 3 196: I/O Event Reporting
Use this item to run the diagnostics function or to calibrate the instrument.
Diagnostics. This instrument is equipped with diagnostics functions to compre-
hensively test itself. This makes it possible to check whether the instrument is
operating correctly. A series of tests are automatically carried out when the
instrument is started. These same diagnostics tests can also be initiated by
selecting the Diagnostics item. These diagnostics are helpful when repairing this
instrument. When the Diagnostics item is selected, the list of diagnostics items
shown in Figure 3 -197 will appear.
