3. Using the general purpose knob, move the vertical bar cursors to define the
area in which the pattern will be set. In this example, we will set the left
vertical bar cursor to 250 and the right vertical bar cursor to 750.
4. Select Line from the sub-menu. Turning the general purpose knob, select
DATA5 for which you want to set the pattern.
5. Select Set Pattern from the sub-menu.

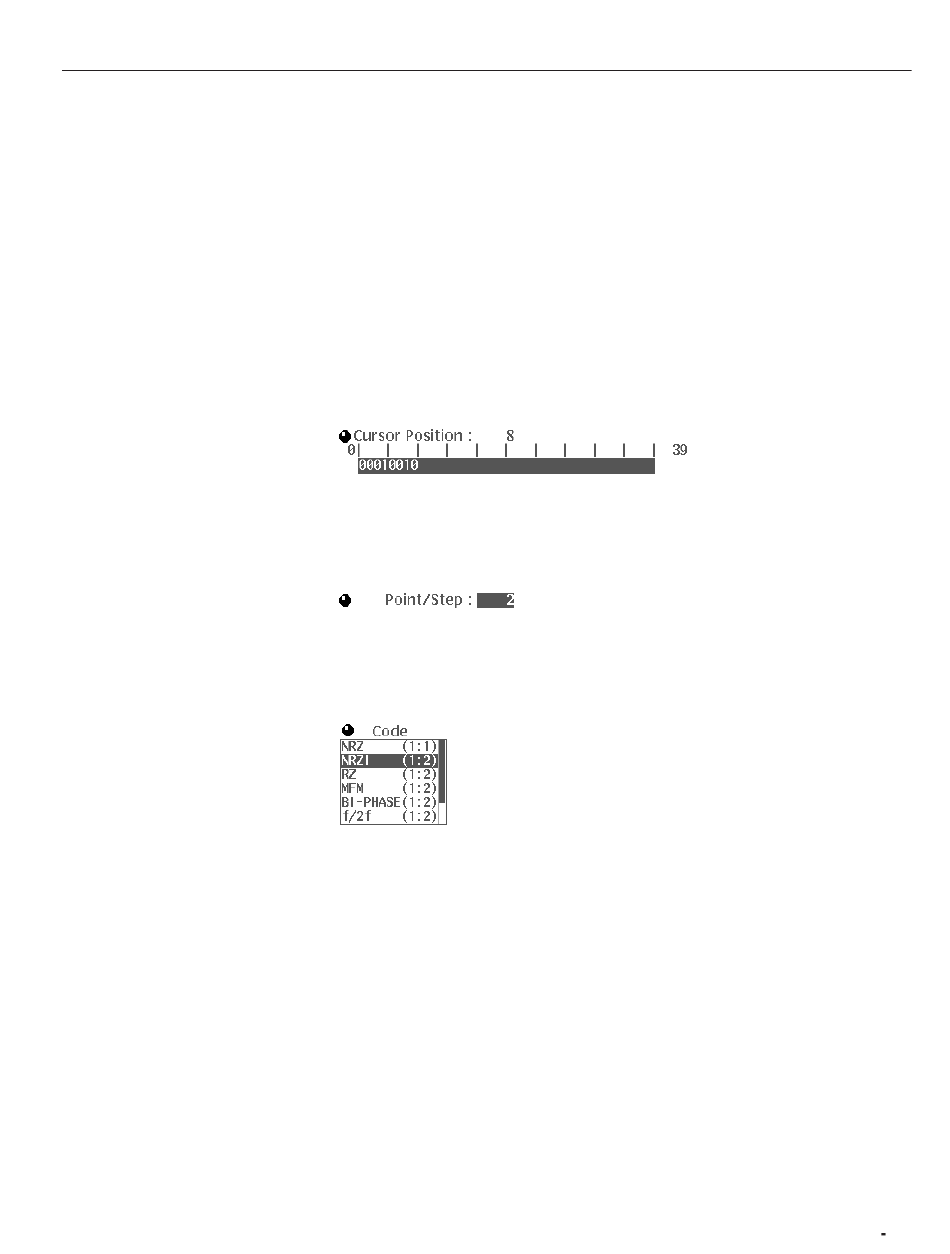

6. Press the CURSOR button on the front panel to select Cursor Position.
7. Press the Key Data button in the sub-menu to select 4 Bits.
8. Press 1, 2 in that order.
9. Press the CURSOR button on the front panel to select Point/Step.
10. Using the general purpose knob, set Point/Step to 2.
11. Press the CURSOR button on the front panel to select Code.
12. Using the general purpose knob, select NRZI.
13. Select O.K. from the sub-menu. The pattern that you have set in the
preceding steps will appear between the vertical bar cursors. See Fig-
ure 3 -82.
