Pulse Width Modulation
(PWM.WFM)
AWG2021 User Manual
Made with the waveform editor.

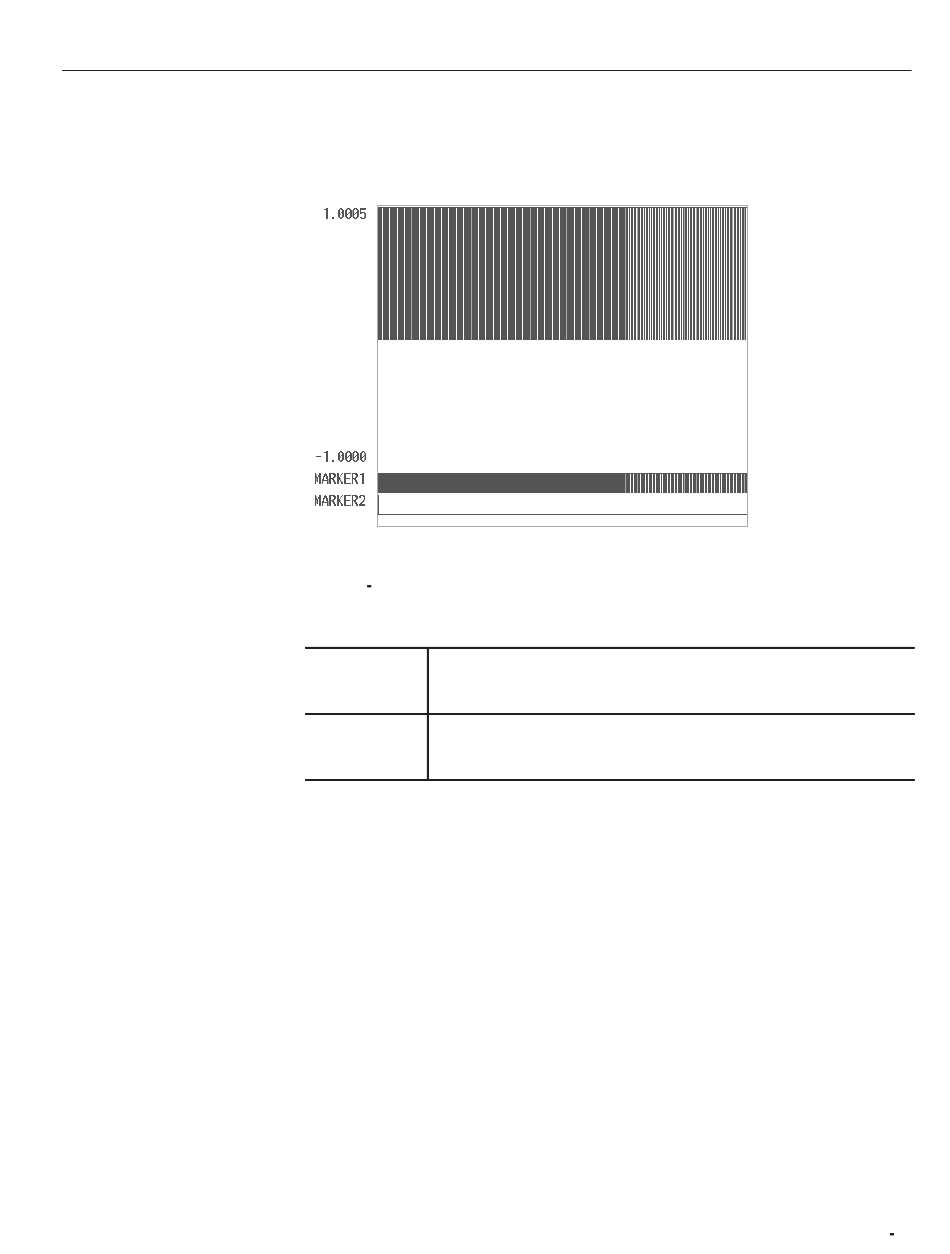

Figure D 12: Pulse Width Modulation Waveform
Description
The waveform editor is used to create a ramp wave of 2000 periods and a
sine wave of 1 period, and these two waveforms are compared to create the
PWM.WFM waveform.
Settings
Waveform points: 16000
Clock frequency: 100 MHz
Output time: 160 ms
Appendix D: Sample Waveform Library
D 15
