AWG2021 User Manual
2. Use the general purpose knob to move the active vertical bar cursor to the
position where the other waveform is to be inserted.

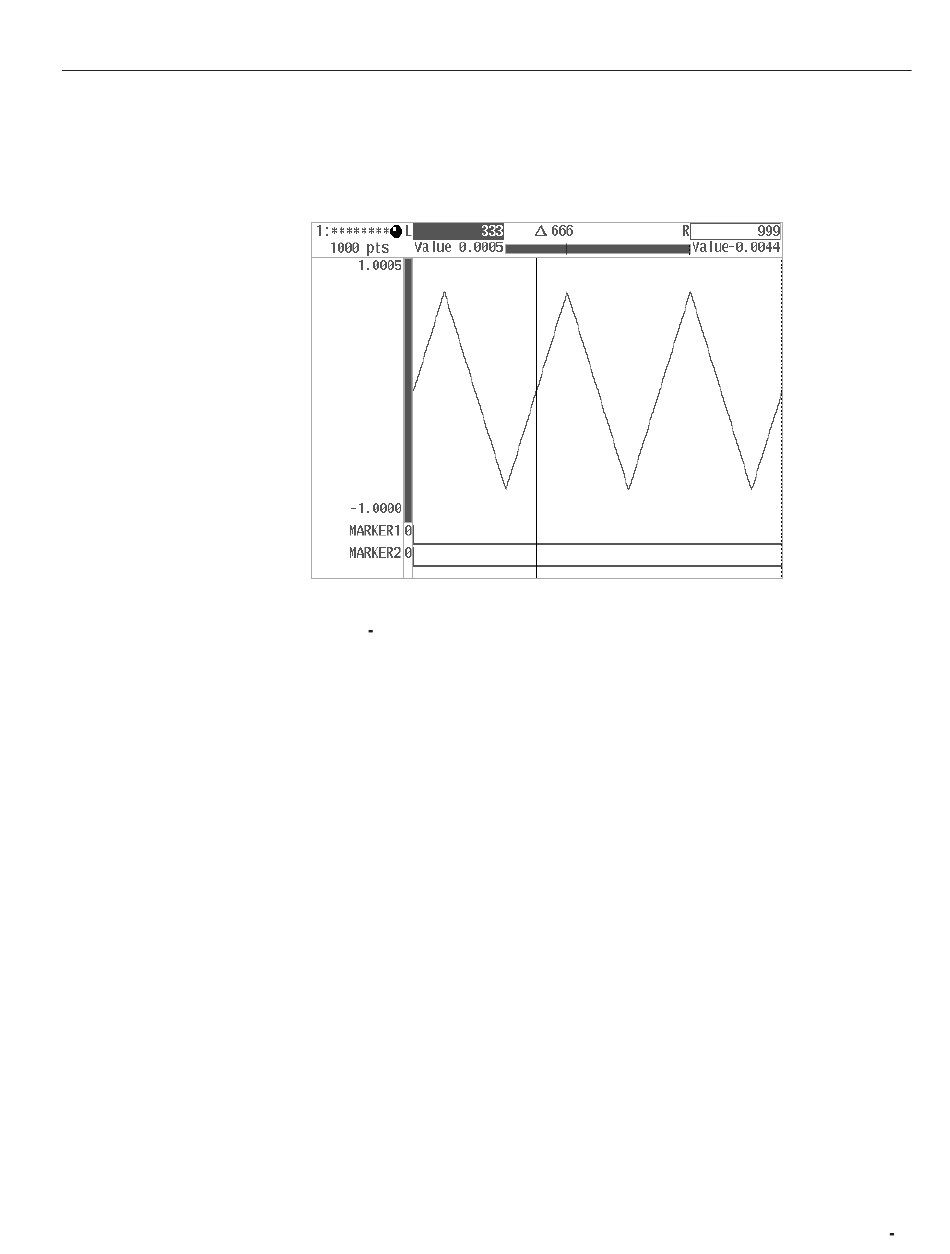

Figure 3 37: Defining the Location for Insertion
The waveform is inserted right before the active vertical bar cursor. However, if
the cursor is at the end of the waveform, the data is inserted directly after the
cursor.
3. After setting the position to insert the other waveform, select Insert Other
Waveform from the side menu. A list of waveform files is displayed.
Data placed into the paste buffer with Cut or Copy is listed at the top of the
file list with the name "Paste Buffer." The data in the paste buffer can be
inserted into any desired location by selecting this item.
4. Use the general purpose knob to select the waveform file to be inserted from
the file list.
EDIT Menu
3 61
