Opening and Selecting
Editing Areas
AWG2021 User Manual

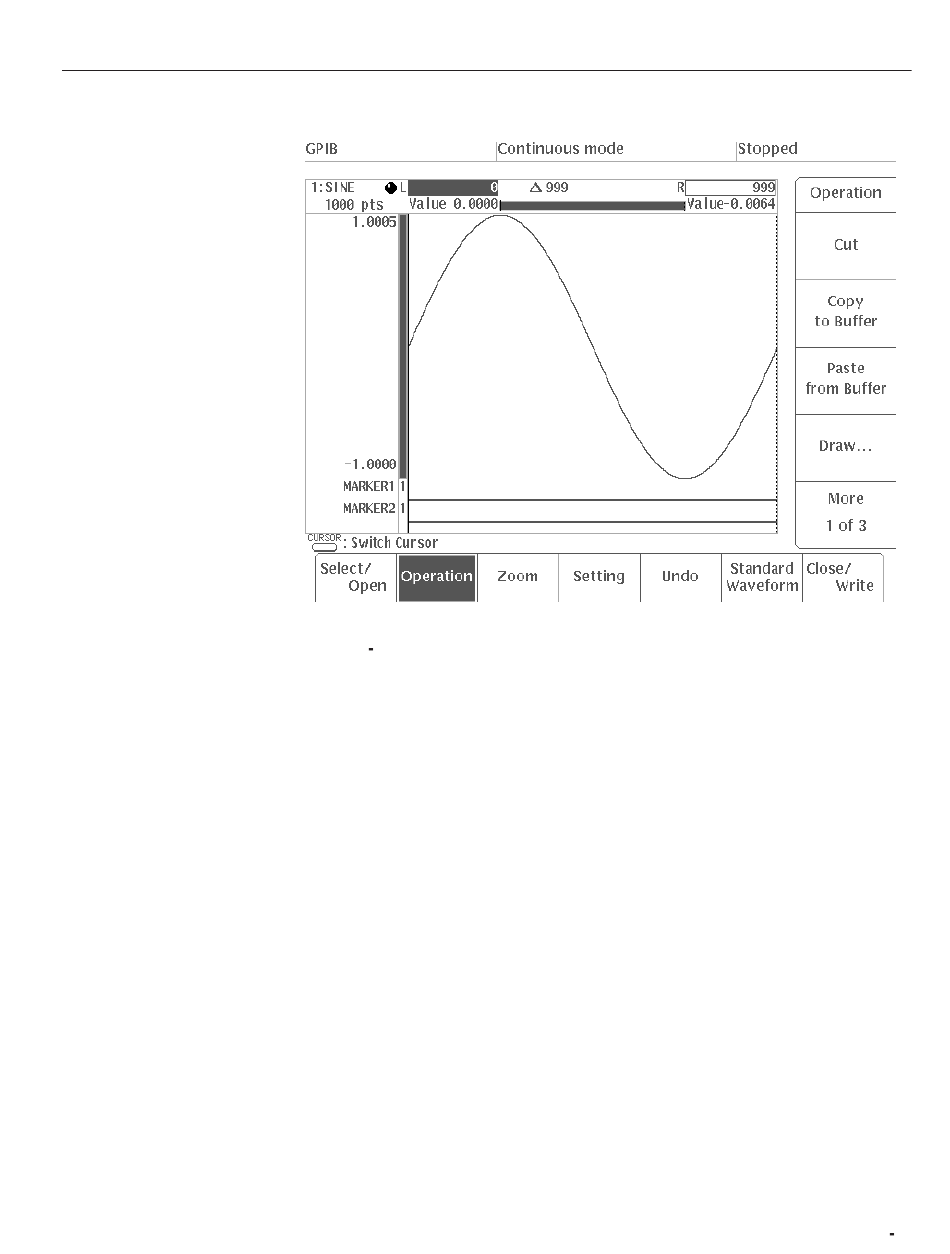

Figure 3 7: Graphic CRT Display
In graphic display, the waveform is created or edited with the waveform
displayed in the waveform editor in graphic display. For details on the
different formats, see "Timing Display" and "Table Display".
Up to three waveforms can be displayed and edited in the waveform editor at the
same time. This makes it easy to edit several related waveforms. Figure 3 -8
shows an example in which three waveforms are displayed. In this example, the
box around the Waveform2 area shows that this waveform is selected and is
currently being edited.
