Gain and Offset Accuracy Checks
Check Gain Accuracy
AWG2021 User Manual
These procedures check the accuracy of the AWG2021 gain and offset.
NOTE. The gain and offset accuracy checks are structured as a continuous test.
After Check Gain Accuracy, the next test uses the control settings from the last
test and uses the next step in the sequence file.
Electrical
Characteristic Checked
Equipment Required
Prerequisites
1. Install test hookup and set controls:
a. Hook up DMM: Connect the AWG2021 CH1 output through a 50 W
coaxial cable, a 50 W terminator and a dual banana connector to the
DMM INPUT connector (see Figure C-15).
AWG2021
AWG2021

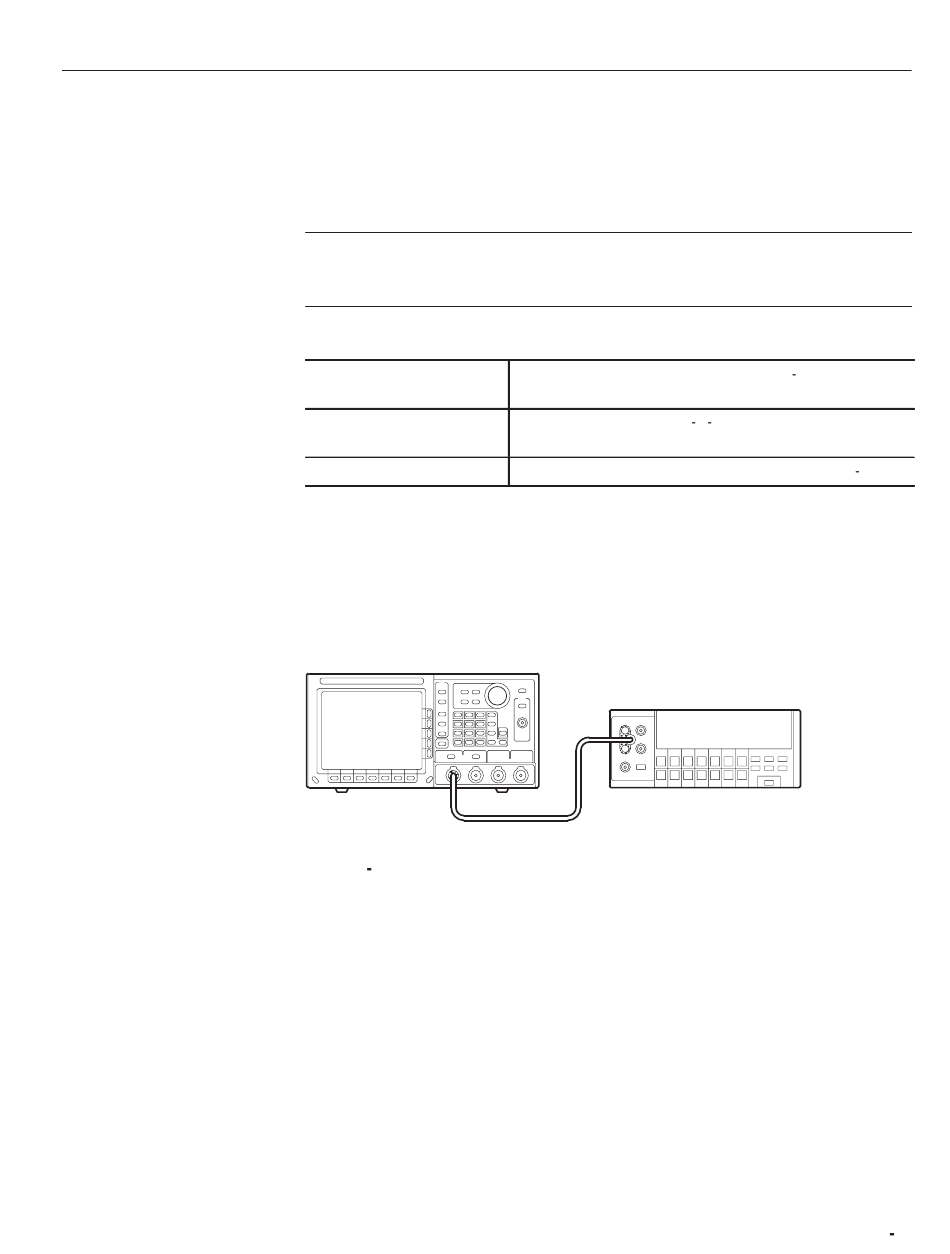

Figure C 15: Gain Accuracy Initial Test Hookup
b. Set DMM controls:
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .
Range . . . . . . . . . . . . . . . . . . . . . . . . . .
Input . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Set the AWG2021 controls and select the waveform file:
a. Initialize AWG2021 controls: Push UTILITY!Misc!Config...!Re-
set to Factory!O.K.
Appendix C: Performance Verification
Main Output, Amplitude, Accuracy, on page B 6.
A 50 W coaxial cable, a BNC to dual banana adapter, and a
digital multimeter (DMM).
The AWG2021 meets the prerequisites listed on page C 5.
DMM
8842A
VDC
20
Front
C 31
