EDIT Menu
3 110

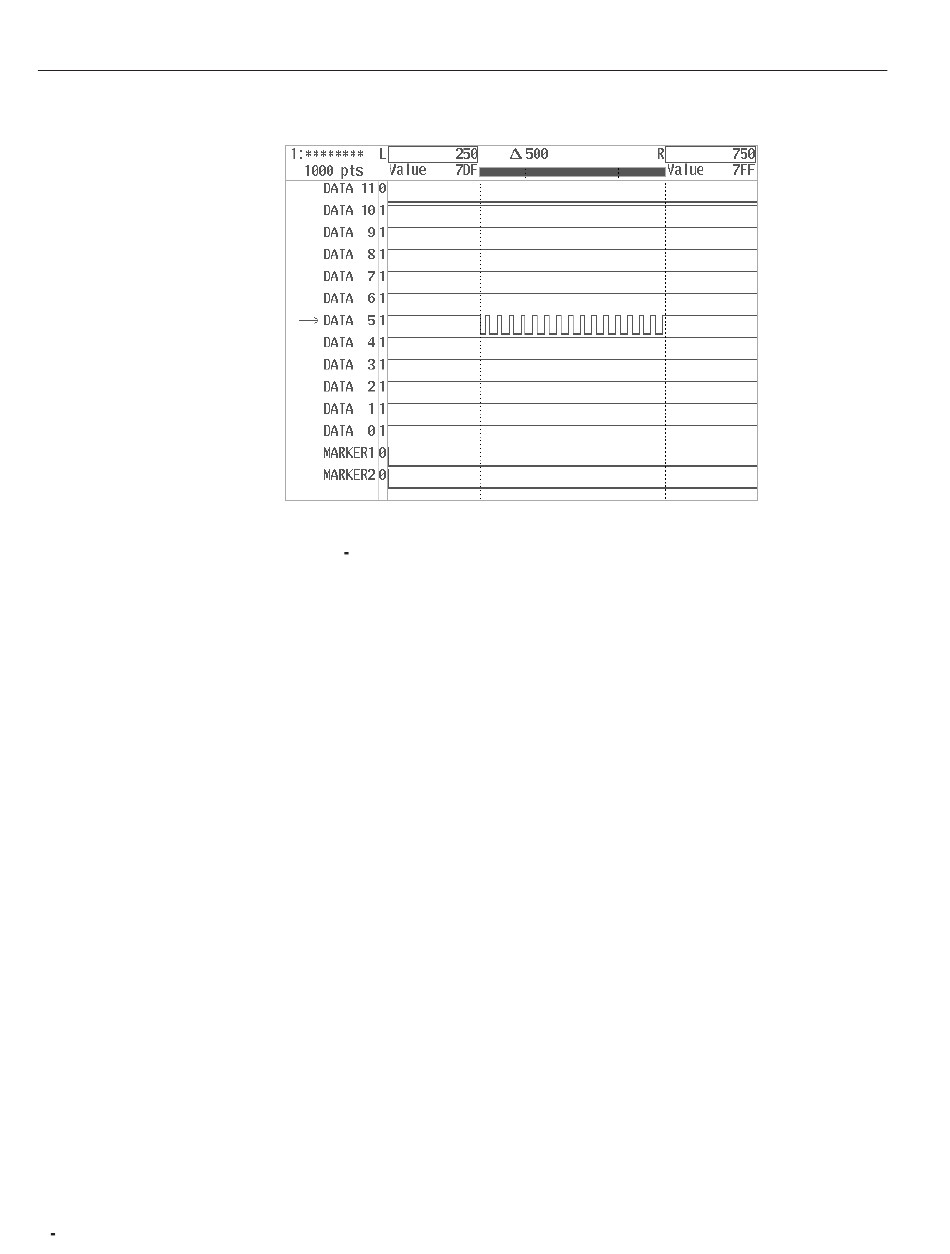

Figure 3 82: Setting Pattern Data
User defined Code Config... . Users can define their own conversion tables for
code conversion. This function enables RLL codes, etc. to be freely defined. For
sample codes, see "Pattern Codes" in Appendix F. Conversion tables defined
with this menu item are protected by the backup battery, so they are preserved
even after the power is turned off. To reset this item to the factory default
(NRZ), select Reset to Factory in the UTILITY menu.
The following process is used to create a user-defined conversion table.
1. Perform steps 1 through 5 of the sample process for defining pattern data.
2. Select User defined Code Config... from the side menu. See Figure 3 -83.
