UTILITY Menu
Date and Time
Setting the Date and Time
3 278
When Date Time is selected from the bottom menu, a clock will appear on the
screen, allowing you to set the date and time. The side menu will display items
for Year, Month, Day, Hour and Minute. Pressing one of these items in the
side menu will make it possible to set that clock parameter using the general
purpose knob.
The set date and time are recorded as the time stamp when a file is created.

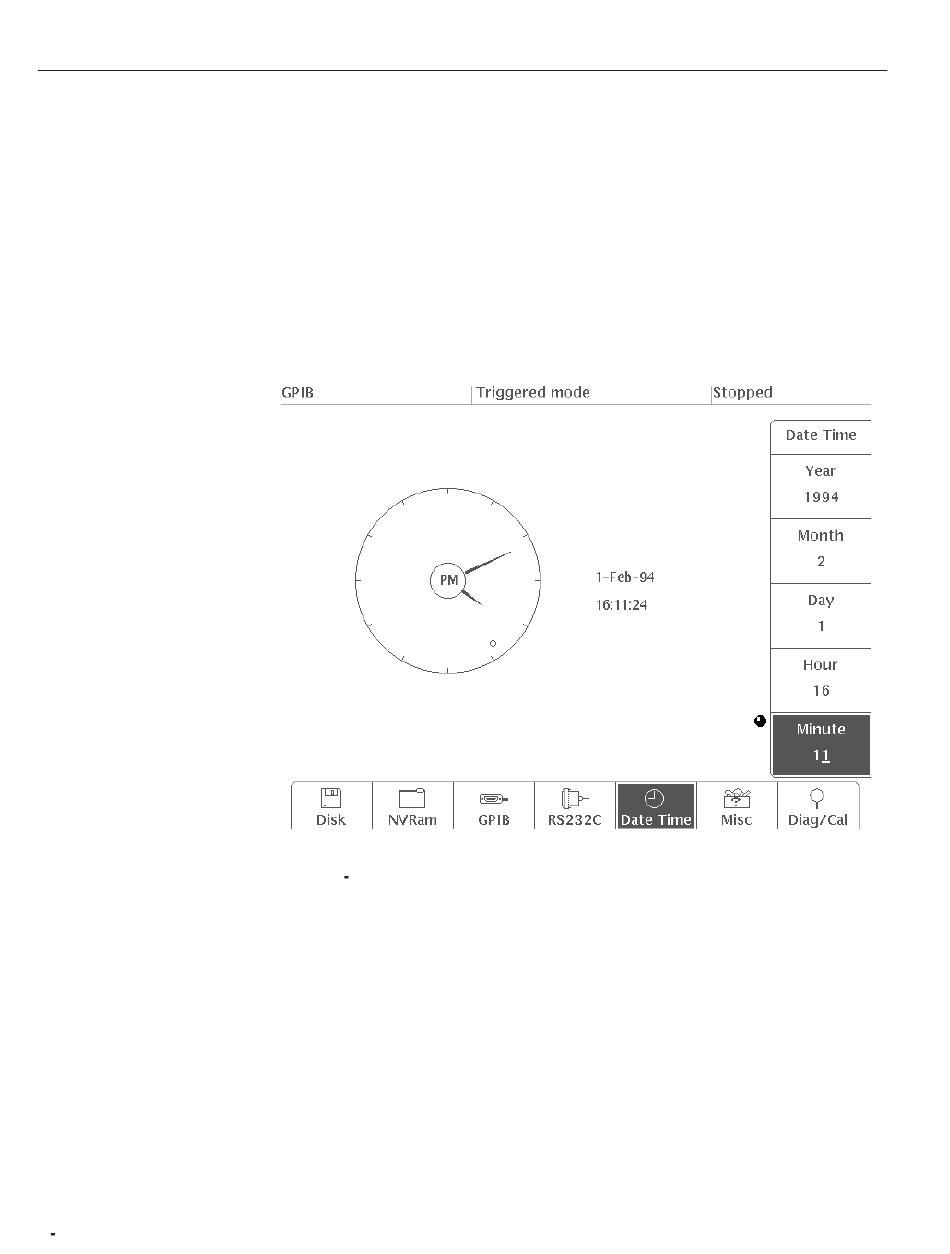

Figure 3 -187 shows the menu displayed when Date Time is selected.
Figure 3 187: Menu Displayed When Date Time is Selected
1. Select Date Time from the bottom menu.
2. Select Year from the side menu. Use the general purpose knob or the
numeric keys to set the year.
3. In the same way, select the Month, Day, and Hour and set the month, day,
and hour.
4. Select Minute from the side menu. Each time the minute is set with the
general purpose knob, the second is reset to 00. When the time is set, the
