AWG2021 User Manual
AWG2021
AWG2021

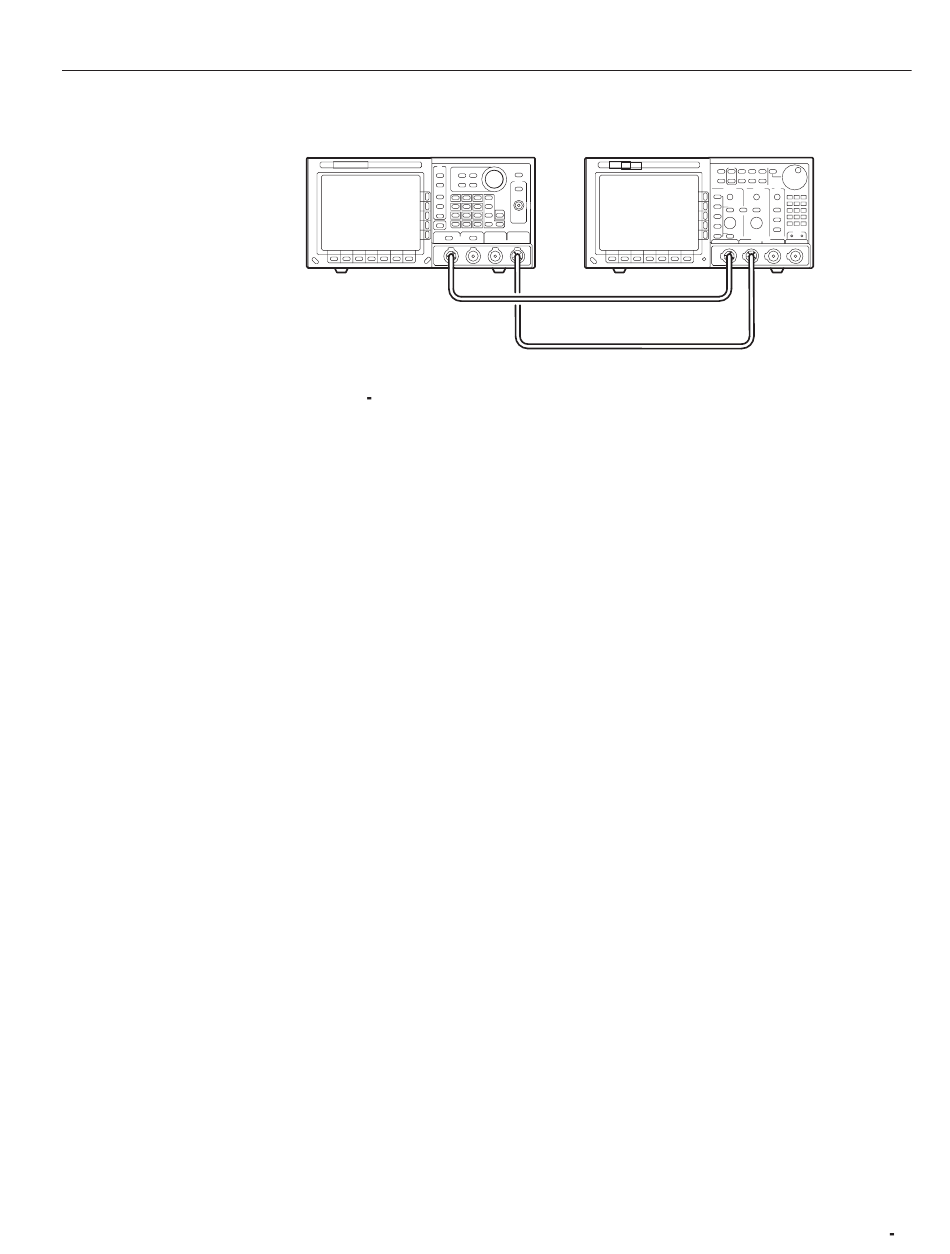

Figure C 10: Autostep Mode Initial Test Hookup
b. Set the oscilloscope controls:
Vertical . . . . . . . . . . . . . . . . . . . . . . . . .
CH1 coupling
CH1 scale . . . . . . . . . . . . . . . . . . . .
CH1 input impedance
Horizontal
Sweep . . . . . . . . . . . . . . . . . . . . . . .
Trigger
Source . . . . . . . . . . . . . . . . . . . . . .
Coupling . . . . . . . . . . . . . . . . . . . . .
Slope . . . . . . . . . . . . . . . . . . . . . . .
Level . . . . . . . . . . . . . . . . . . . . . . .
Mode . . . . . . . . . . . . . . . . . . . . . . .
2. Set the AWG2021 controls and select the waveform file:
a. Initialize AWG2021 controls: Push UTILITY!Misc!Config...!Re-
set to Factory!O.K.
b. Modify AWG2021 default settings:
H Push MODE!Autostep!Slope to highlight Positive.
H Select Level from the side menu, and turn the general purpose knob
to select 1 V.
H Select Select Autostep File from the side menu to choose from the
file list for CH1.
H Turn the general purpose knob to highlight the MODE_AST.AST
file.
H Push ENTER.
Appendix C: Performance Verification
Oscilloscope
TDS 540
CH1
. . . . . . . . . . . . . . . . . DC
0.5 V/div.
50 W
. . . . . . . . . .
2 ms/div.
CH1
DC
Positive
100 mV
Normal
C 21
