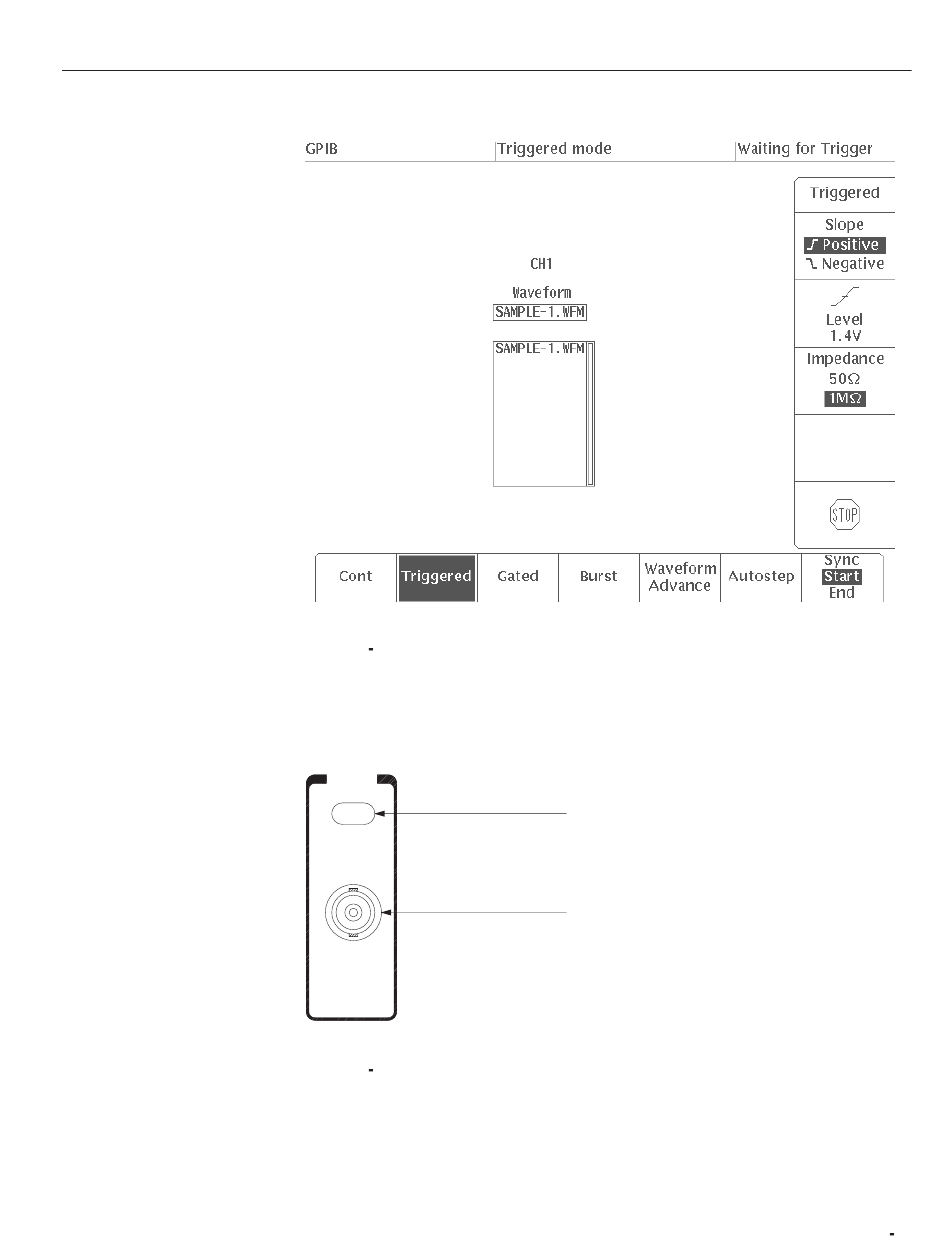

Figure 2 54: Menu Displayed When Triggered is Selected
Figure 2 -55 shows the MANUAL button and the TRIGGER INPUT connector
for inputting an external trigger signal.
TRIGGER
MANUAL
INPUT
1MW
10Vp-p
50W
5VRMS
Figure 2 55: MANUAL Button and TRIGGER INPUT Connector
This procedure does not use an external trigger signal. Rather, it generates the
trigger signal when the MANUAL button is pressed.
MANUAL Button
TRIGGER INPUT
Connector
Operating Examples
