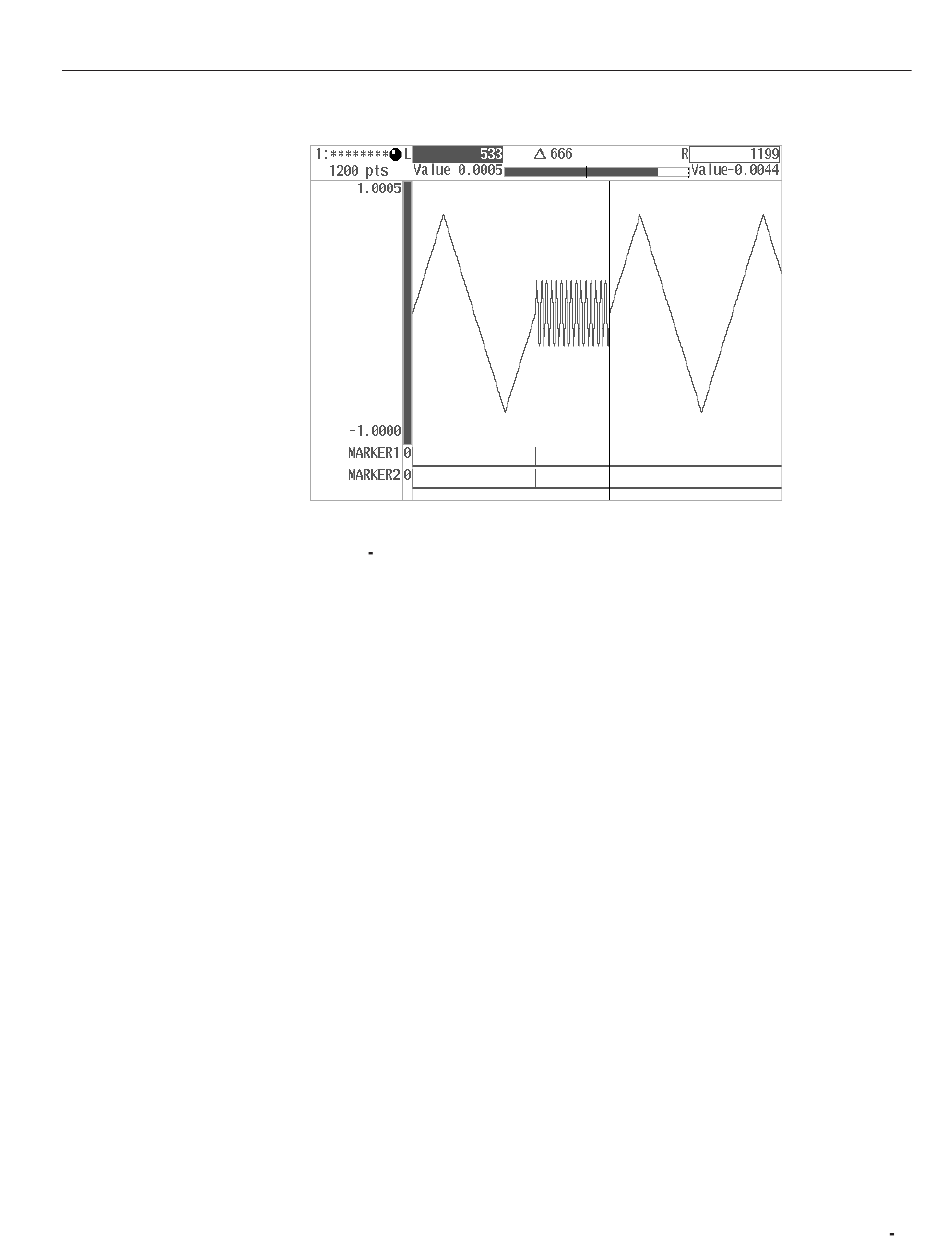

Figure 3 40: Inserting Waveforms
Single Waveform Calculations. The Single Waveform Math... item allows you to
perform mathematical calculations for the waveform itself. Calculations are
applied to the portion of the waveform between the vertical bar cursors.
Absolute Determines the absolute value for the amplitude.
Square Doubles the absolute value for the amplitude. If the
amplitude is a negative number, the calculated result is also
negative.
Cube Triples the amplitude.
Square Root Determines the square root for the absolute value of the
amplitude. If the amplitude is a negative number, the
calculated result is also negative.
Normalize Normalizes the amplitude values so that the maximum
absolute value is 1.0 (i.e. a value of +1.0 or –1.0).
Integral Integrates the amplitude and normalizes.
Differential Differentiates the amplitude and normalizes.
The following diagram shows the menu configuration for the Single Waveform
Math... item.
EDIT Menu
