H Clock Settings. Select
Then press the VALUE button on the front panel. The menu shown in Figure
3 -131 will appear.

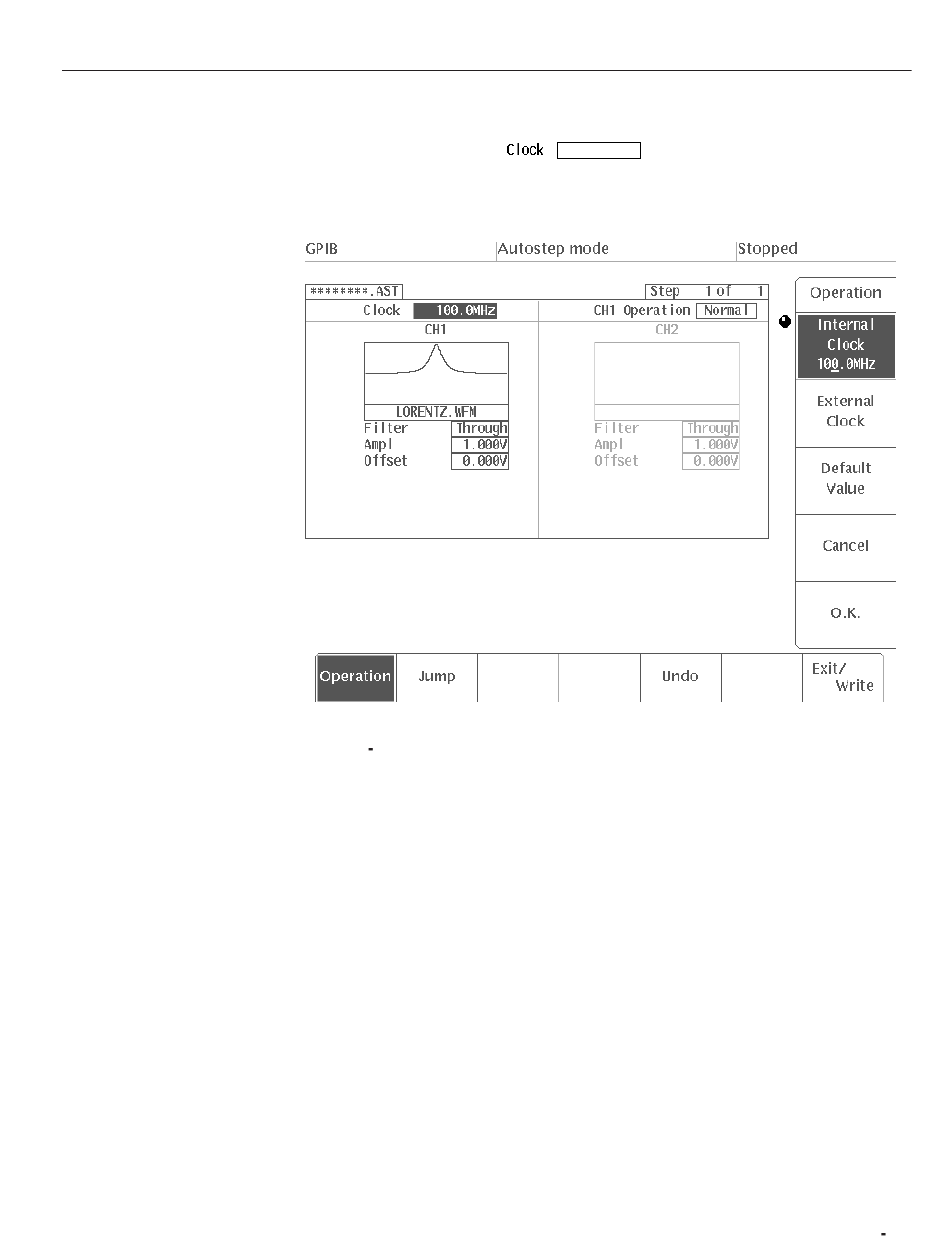

Figure 3 131: Clock Setting Menu
Set the clock source and the clock frequency by selecting the appropriate items
in the side menu. The settings for clock source and clock frequency are used for
both channel 1 and channel 2.
Internal Clock
External Clock
Default Value
using the general purpose knob.
Selects the internal clock. Use the numeric keys or
the general purpose knob to set the internal clock
frequency.
Selects the external clock. The external clock signal
is input through the CLOCK IN connector on the
rear panel of the instrument.
Sets the internal clock frequency to the default value
of 100.0 MHz.
After setting the clock source and clock frequency,
select O.K. from the side menu. The values for
EDIT Menu
3 181
