EDIT Menu

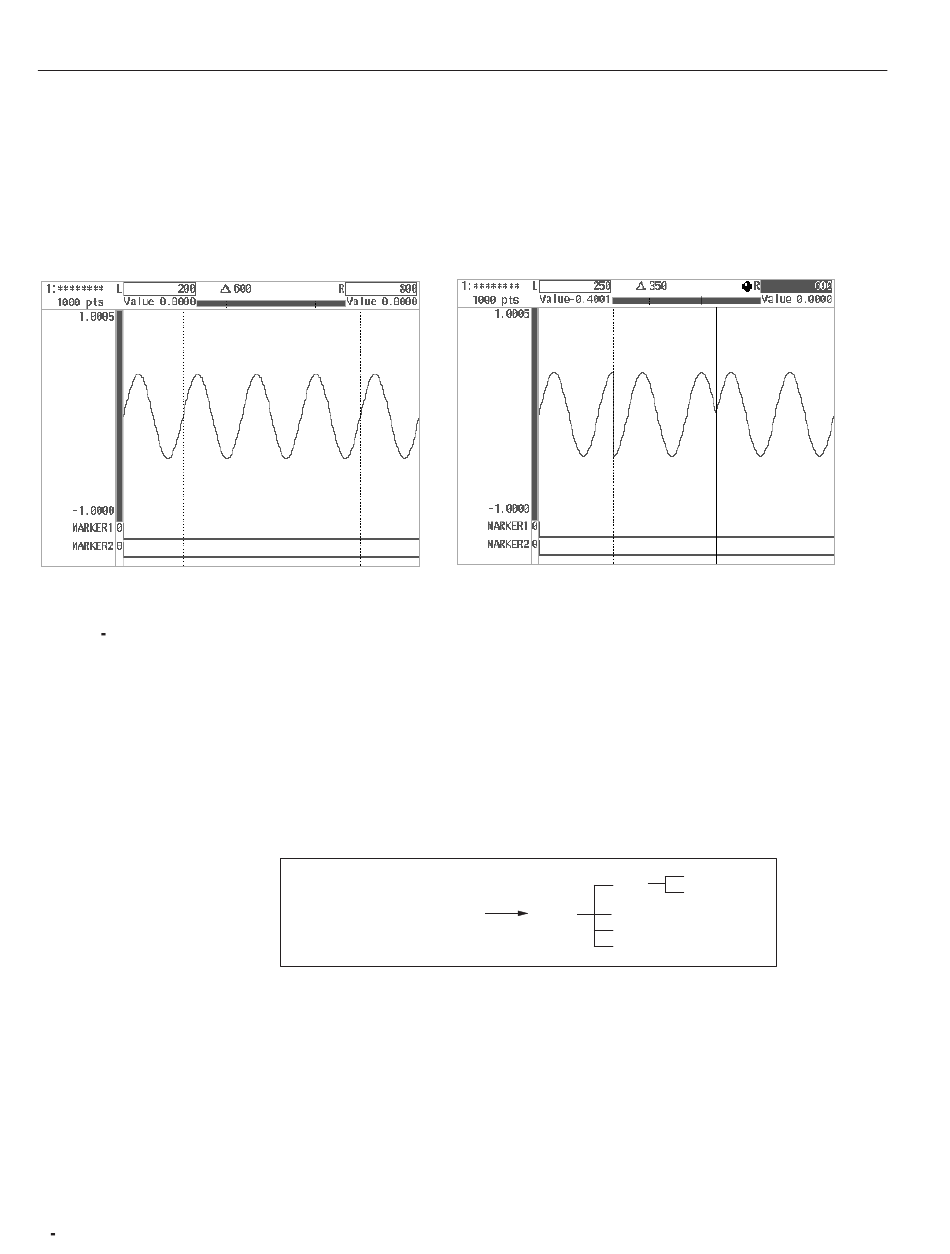

Figure 3 33: Vertically Inverted Display
3 56
4. Press the Invert button in the sub-menu to select Vertical.
5. Select Execute from the sub-menu. The waveform is inverted vertically with
the specified conditions. Figure 3 -33 shows an example of the waveform
before and after it is inverted vertically.
Before
6. Select Go Back from the current sub-menu. The system returns from the
Invert... sub-menu to the side menu.
Clip Function. Use Clip... to clip (remove) any waveform data between the
vertical bar cursors that is above or below the set level. The following diagram
shows the menu configuration for the Clip... item.
Operation (More 2 of 3)
1. Move the left and right vertical bar cursors to define the editing area for
clipping, then select Clip... from the second page of the side menu (More 2
of 3). A horizontal (broken) line showing the clip level will appear.
2. Press the Clip button in the sub-menu to select Upper or Lower.
After
Upper
Clip
Lower
Clip... Level
Go Back
Execute
