Autostep Editor Menu
Display
AWG2021 User Manual

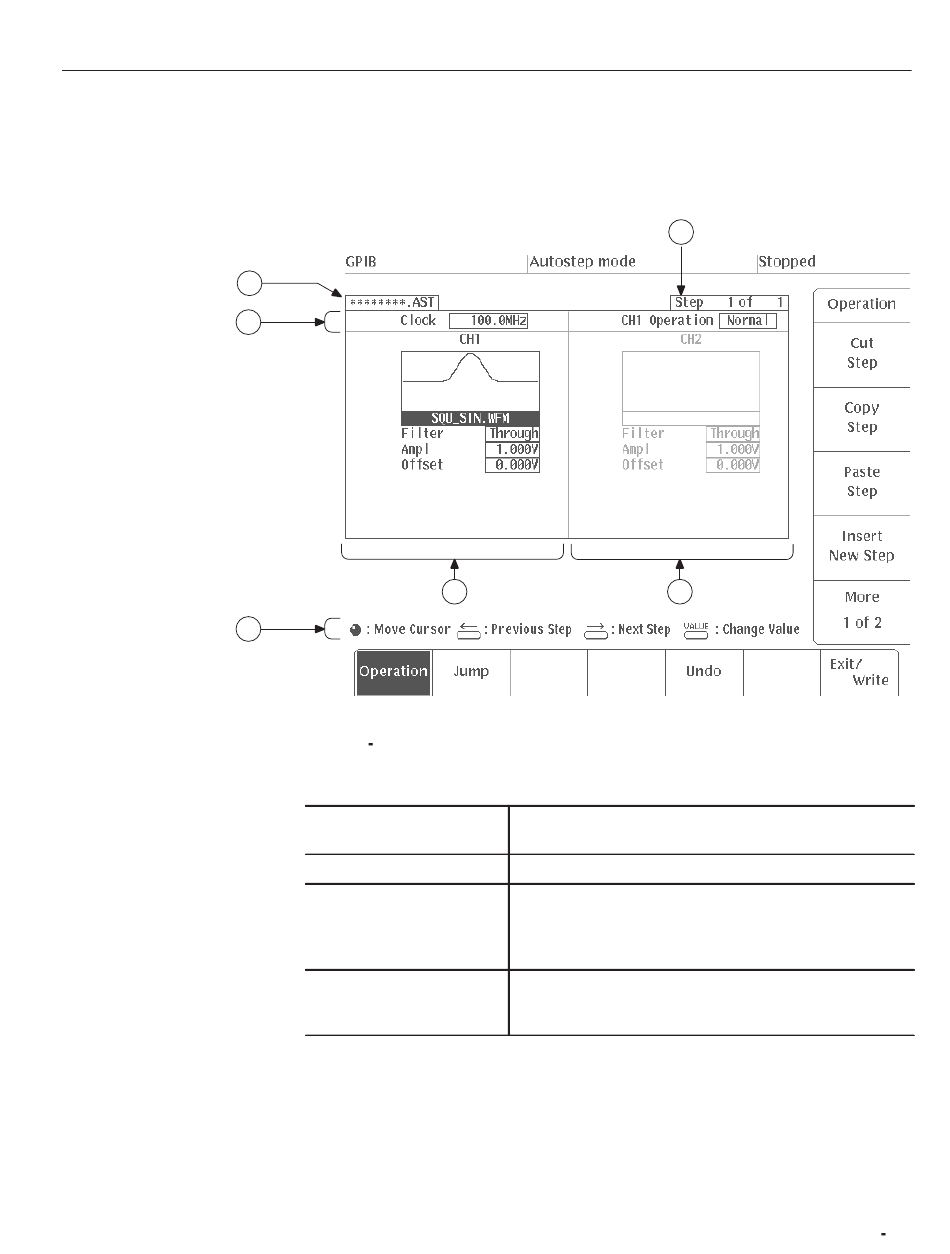

Figure 3 -126 shows the general autostep editor display. A description for each
callout follows.
1
5
6
Figure 3 126: Autostep Editor CRT Display
(1) File Name
(2) Step No.
(3) CH2 File Setting Area
(Option 02)
(4) CH1 File Setting Area
4
The name of the autostep file being edited; if the name has not
been set yet, ********.AST is displayed.
Indicates the step number in the program.
This setting area is only effective when Option 02, with CH2, is
installed. Indicates the file set for CH2 in the step indicated by
(2). The waveform and output parameters for that file are
shown in this area. These output parameters may be changed.
Indicates the file set for CH1 in the step indicated by (2). The
waveform and output parameters for that file are shown in this
area. These output parameters may be changed.
EDIT Menu
2
3
3 175
