EDIT Menu
Creating and Editing
Equation Files
3 142
Select Operation in the bottom menu to create or edit an equation file. When
this item is selected, the time range can be designated with the component menu
and the equation can be created. Figure 3 -99 shows a menu with Operation in
the bottom menu selected.

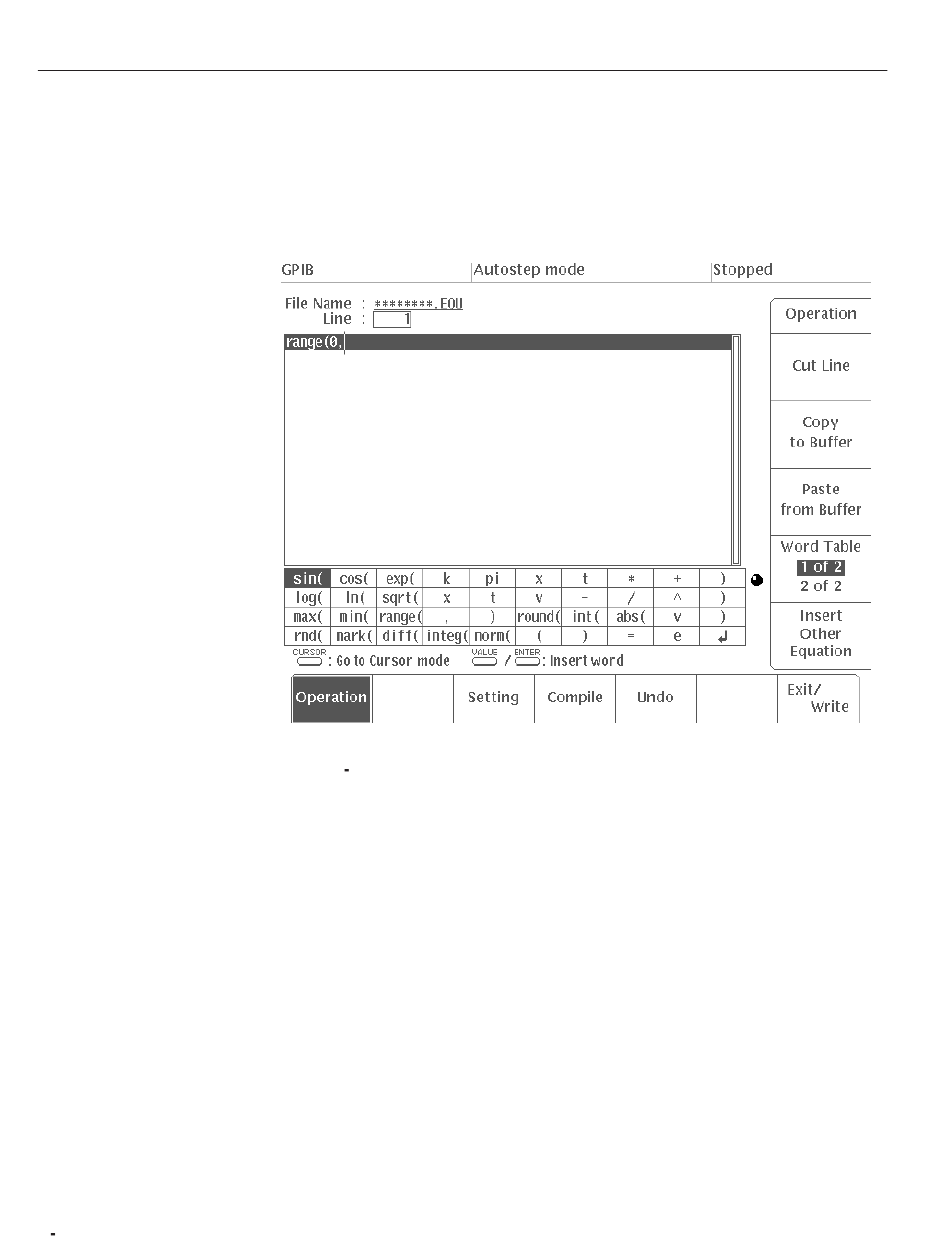

Figure 3 99: Menu With Operation Selected
Specifying the Time Domain. The equation must specify the time domain. If the
time domain is not defined, this is an error. The time domain is specified with
range().
When making a new equation file, range(0, is input in the first line of equation.
Next, the time is specified. This setting is valid until the next range( item is
specified. With the first range() specification, any number of lines of equation
can be input. Text written after the range() on the same line is invalid. Here is
the format for the range( item.
range( Equation starting time, Equation ending time )
