7. Use the numeric and unit keys to input 1, MHz, in order, to set the clock
frequency.
8. Press the Source button in the side menu to select Internal.
9. Select Amplitude from the bottom menu.
10. Select CH1 from the side menu.
11. Use the numeric and unit keys to input 5, V, in order, to set the voltage value
for full vertical scale.

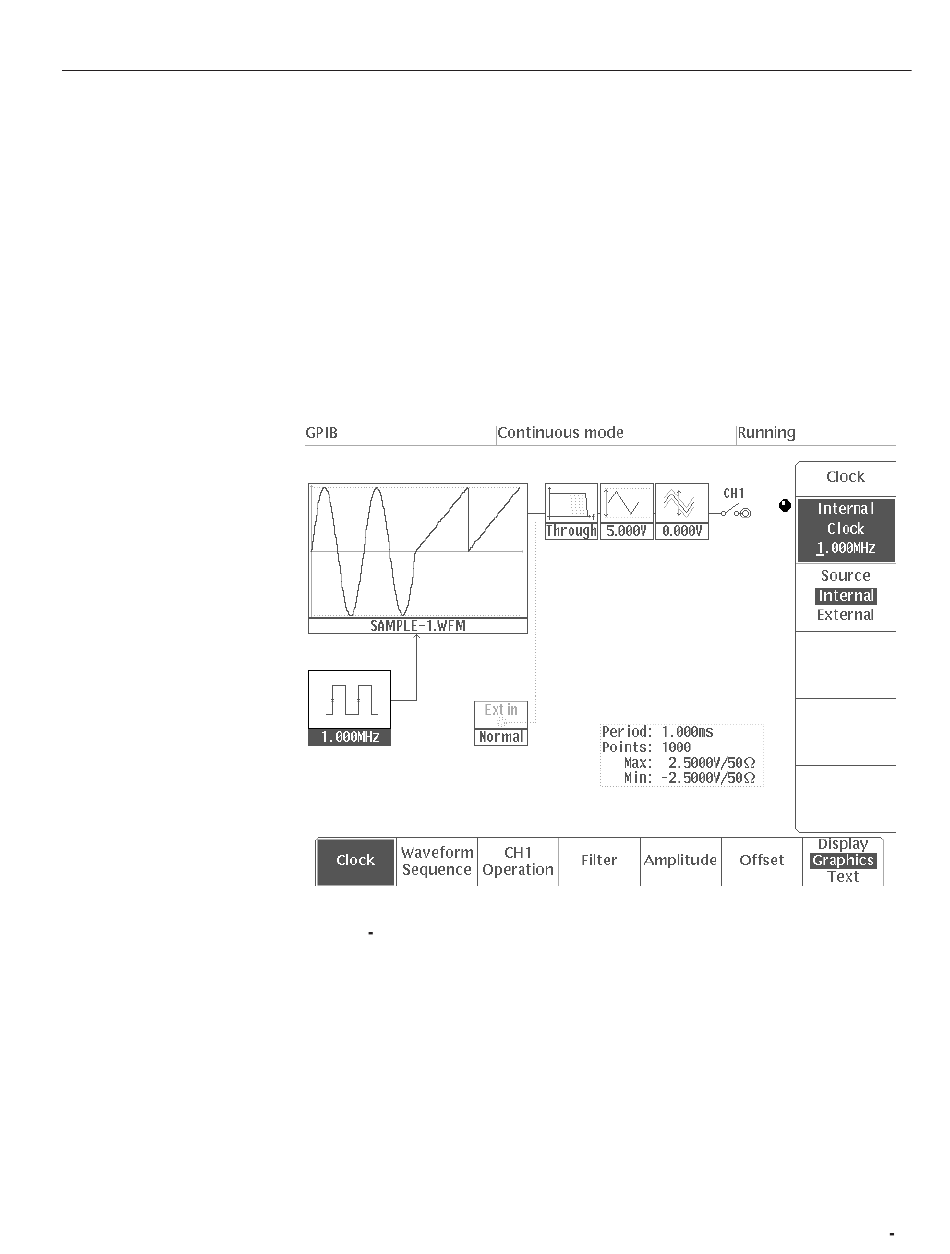

Figure 2 -50 shows the menu displayed as a result of these settings.
Figure 2 50: Setting Output Parameters
This completes the output parameter setting.
