EDIT Menu
Selecting a Waveform File
3 192
In this example, you will select a waveform file for operation.
1. Select Waveform from the bottom menu.
2. Select Waveform1 from the side menu.
3. Using the general purpose knob, select the waveform file for operation from
the Select Waveform list and then select O.K. The waveform you have
selected will be displayed in the Waveform1 display area under Source.
4. Select Waveform2 from the side menu.
5. Using the general purpose knob, select the other waveform file for operation
from the Select Waveform list and then select O.K. The waveform you have
selected will be displayed in the Waveform2 display area under Source.

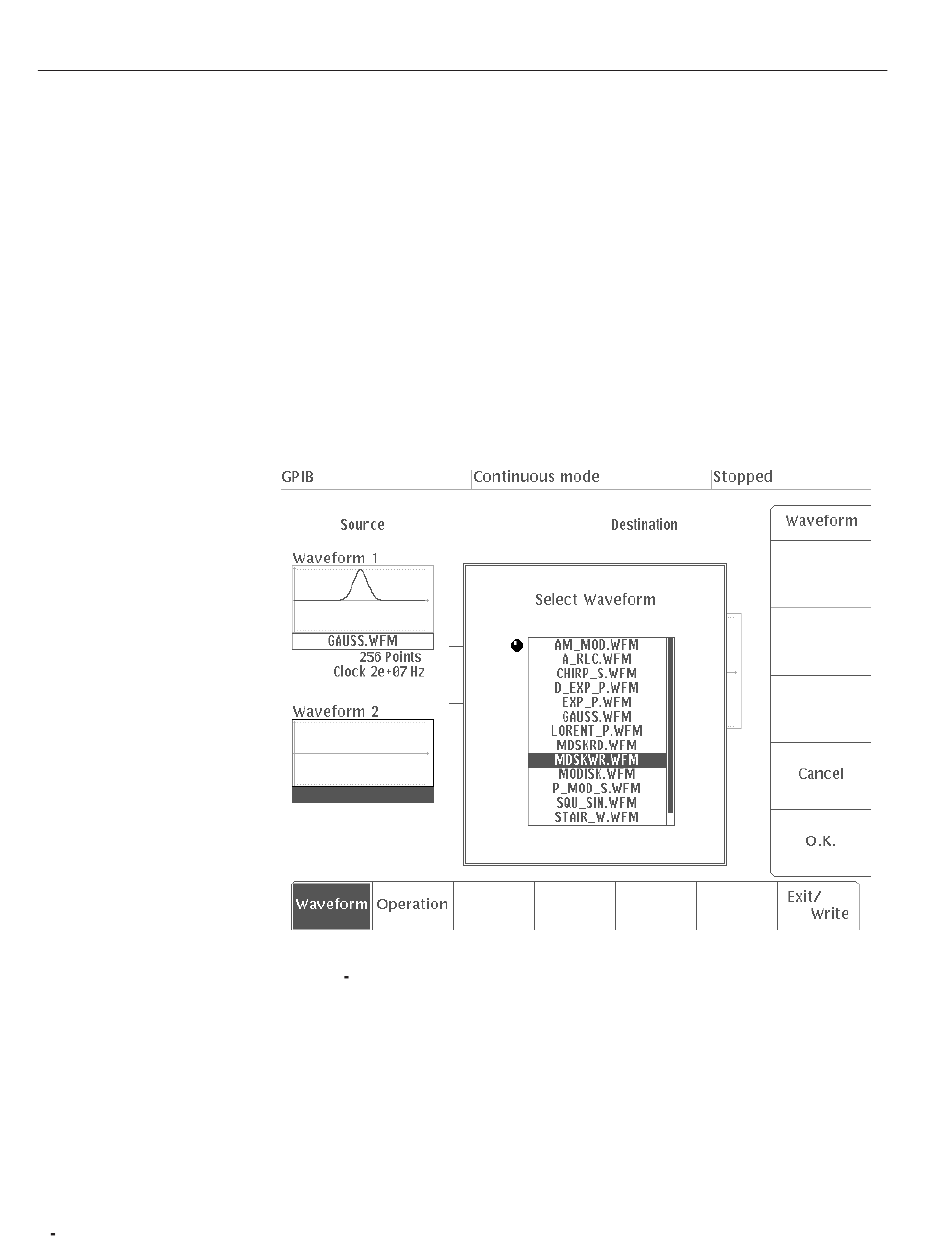

Figure 3 138: Selecting a Waveform File
