Equation Editor
Entering the Equation
Editor
AWG2021 User Manual
Use the equation editor to edit files with the extension of .EQU. Equation file
data takes the form of mathematical equations. An equation program file can
have up to 100 lines. An equation file is compiled to create a waveform file and
to output the waveform.

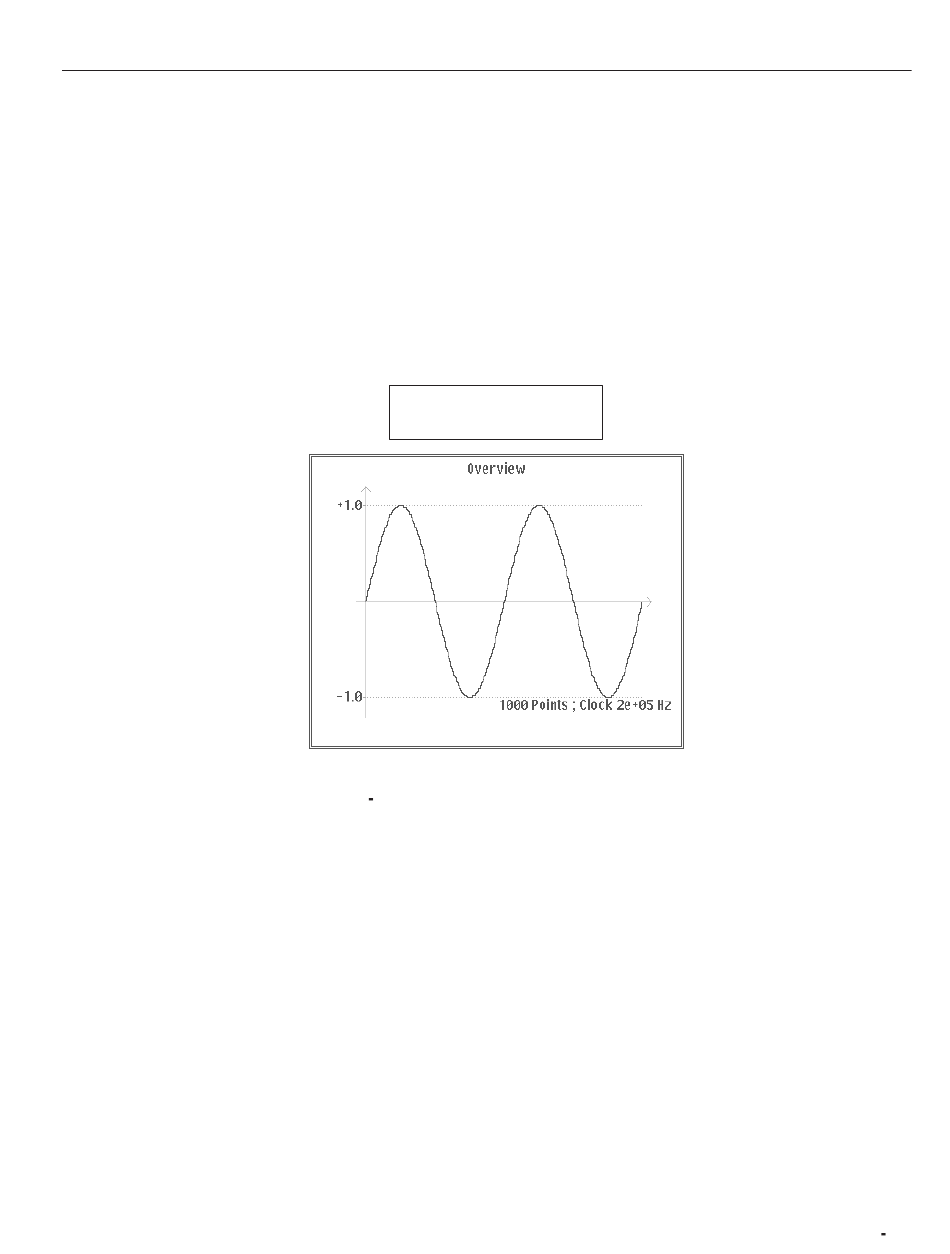

Figure 3 -96 shows an example of a waveform obtained by compiling the data
from an equation file and its equation.
Equation File
range(0,5ms)
sin(4*pi*x)
Figure 3 96: Example of Equation File Data and Resulting Waveform
1. Press the EDIT button in the MENU column. The initial EDIT menu will
appear.
2. Select Edit or New Equation from the side menu.
Edit
New Equation
The equation editor screen will appear.
Used to select and edit an existing equation file
(.EQU)
Used to create a new equation file
EDIT Menu
3 137
