Operating Examples
2 40

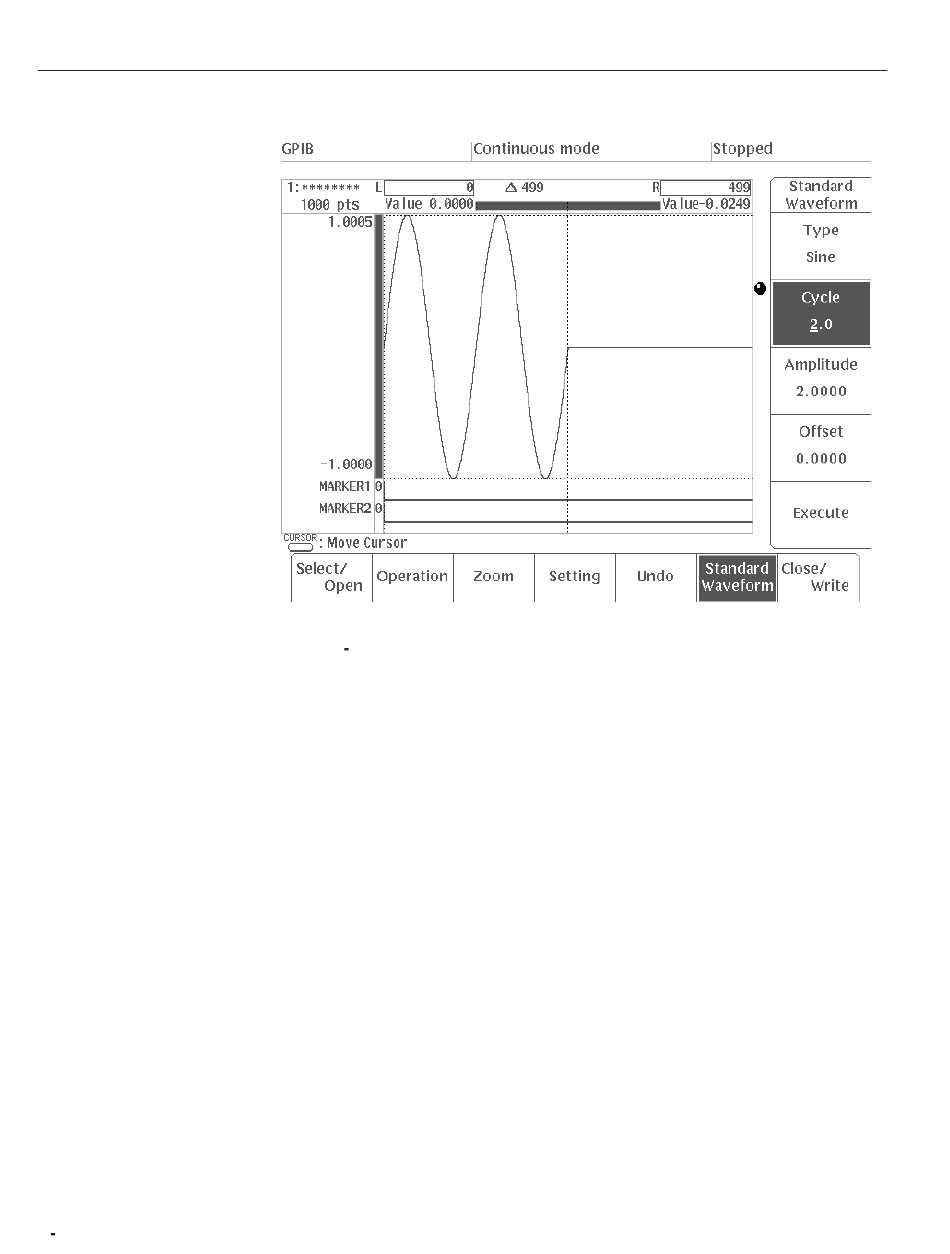

Figure 2 27: Creating a Sine Waveform
11. Press the CURSOR button to activate the right side vertical bar cursor.
12. Press the following key sequence: 9, 9, 9, ENTER. This sets the point value
to 999.
13. Press the CURSOR button to activate the left side vertical bar cursor.
14. Press the following key sequence: 5, 0, 0, ENTER. This sets the point value
to 500.
15. Select Type from the side menu.
16. Turn the general purpose knob to select Ramp.
17. Select Amplitude from the side menu.
18. Press "1" and ENTER in that order to set the ramp wave amplitude to 1.
19. Select Offset from the side menu.
20. Press ".", "5", and ENTER in that order to set the ramp wave offset to 0.5.
21. Select Execute from the side menu. A two-cycle ramp waveform is created
between the vertical bar cursors (see Figure 2 -28).
