Table Display
AWG2021 User Manual
Zooming Waveforms. The function for this item is the same as for the Zoom item
in waveform editor graphic display. See Page 3 -92.
To show the table display for the waveform editor using the View type.... item in
the Setting menu:
1. Select Setting from the bottom menu.
2. Select View type... from the side menu.
Three items will be displayed in the sub-menu: Graphic, Timing and Table.
3. Select Table from the sub-menu.
The table display of the waveform editor will appear. See Figure 3 -92.

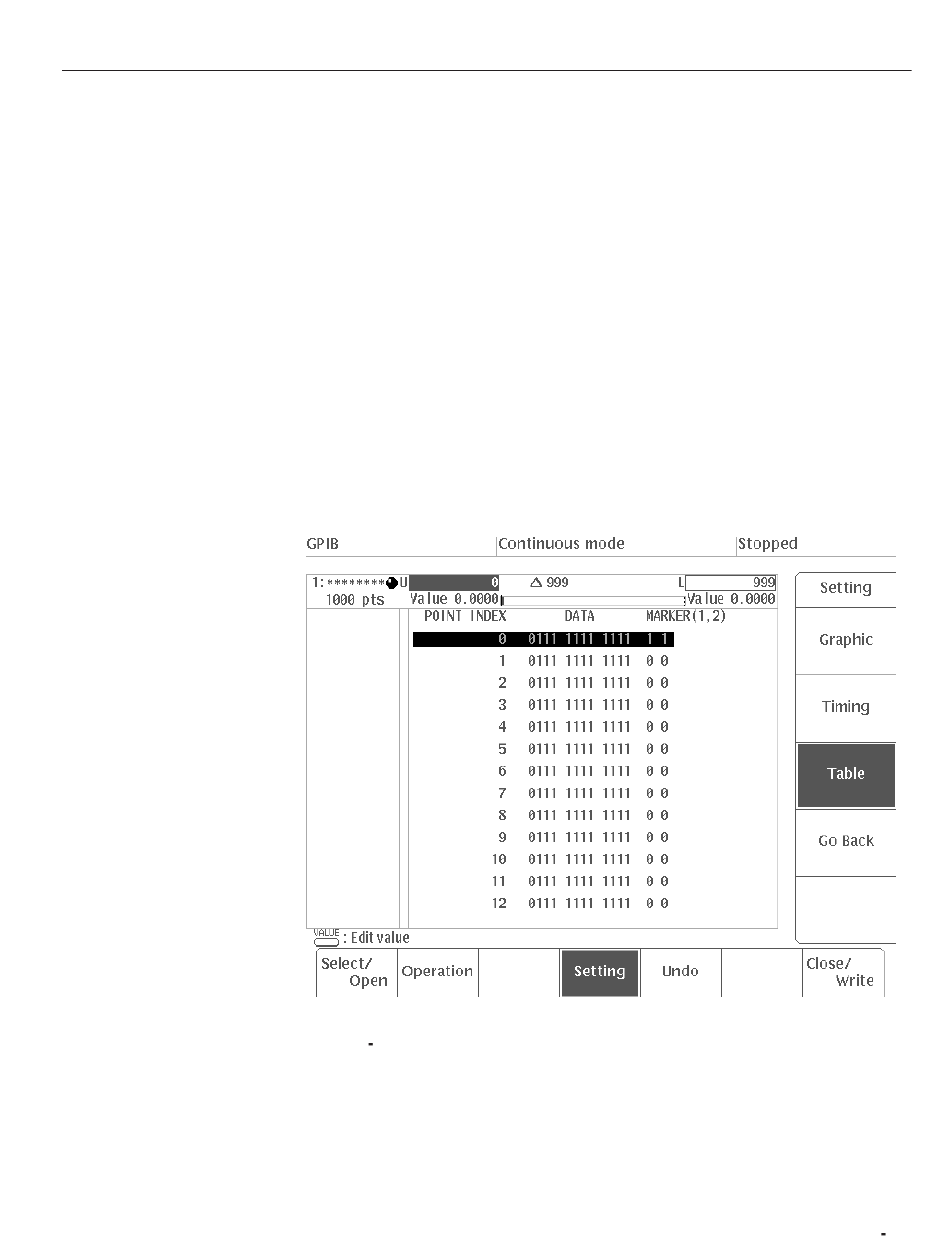

Figure 3 92: Table Display
4. Select Go Back from the sub-menu. The system moves to the previous
Setting side menu.
EDIT Menu
