Clock Frequency and Amplitude Checks
Check Clock Frequency
Accuracy
AWG2021 User Manual
3. End procedure:
a. Disable function generator output: Turn the function generator output
off.
b. Remove equipment: Disconnect connections to the test equipment.
These procedures check the accuracy of the AWG2021 clock frequency and the
waveform output amplitude.
Electrical
Characteristic Checked
Equipment Required
Prerequisites
1. Install test hookup and set test equipment controls:
a. Hook up frequency counter: Connect the AWG2021 rear panel CLOCK
OUT connector to the frequency counter input through a coaxial cable
and an SMA-BNC adapter (see Figure C-13).
AWG2021
AWG2021

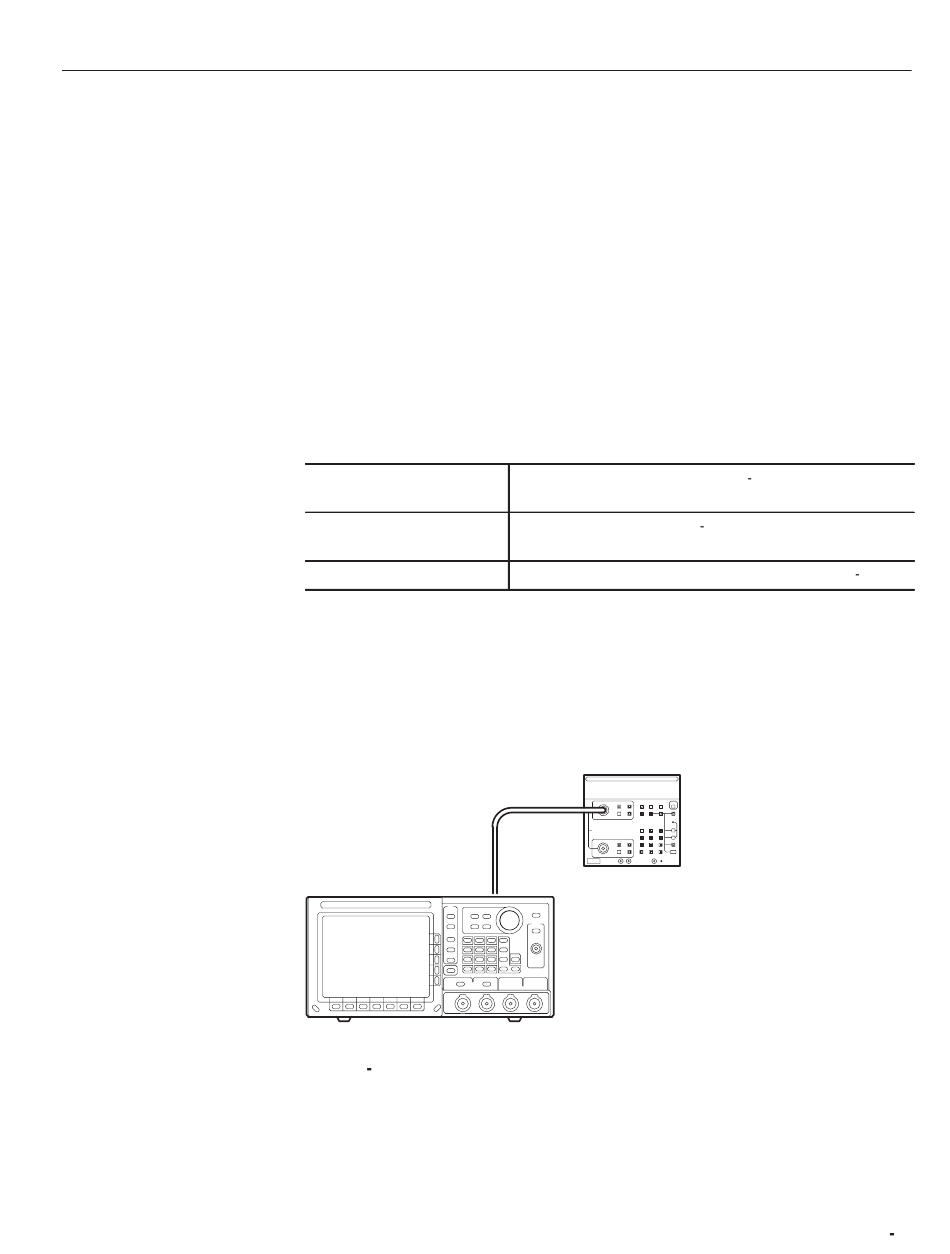

Figure C 13: Clock Frequency Accuracy Initial Test Hookup
Appendix C: Performance Verification
Clock Generator, Accuracy, on page B 6.
A 50 W coaxial cable, an SMA BNC adapter, and a frequency
counter.
The AWG2021 meets the prerequisites listed on page C 5.
Frequency Counter
DC 5010
