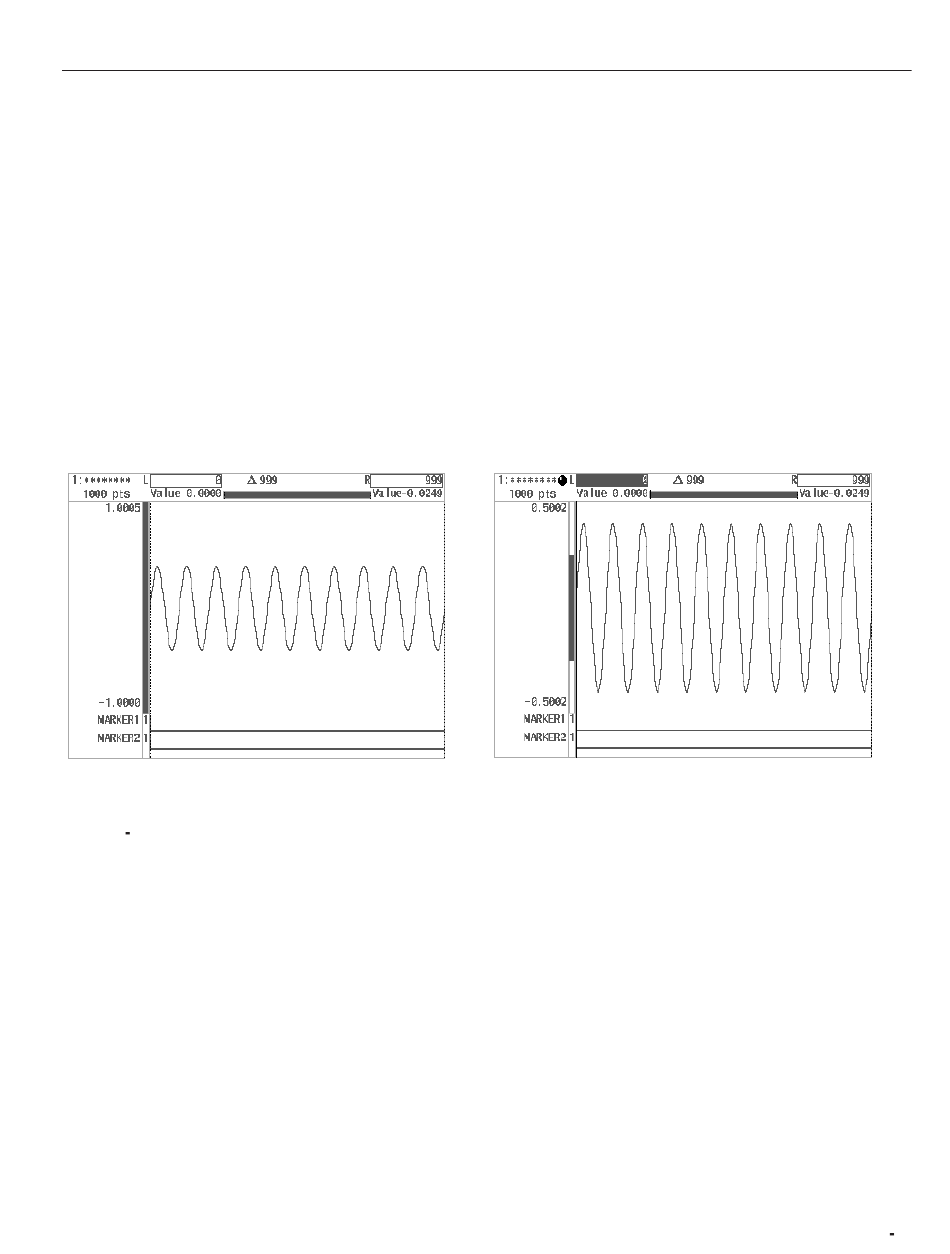

Figure 3 74: Vertical Zoom
AWG2021 User Manual
Vertical Zooming. When the waveform is enlarged vertically with the Vertical
Zoom in item, three new items will be added to the side menu:
Vertical Zoom out
Vertical Zoom fit
Vertical Pan
The process of vertical zooming is the same as that for horizontal zooming.
However, the waveform is enlarged/reduced as the reference for the center of the
vertical axis.
Figure 3 -74 shows an example of a waveform before and after vertical zooming.
Before
Used to reduce the waveform.
Used to return to normal waveform size (x1).
Used to scroll through the waveform when it is
enlarged.
EDIT Menu
After
3 95
