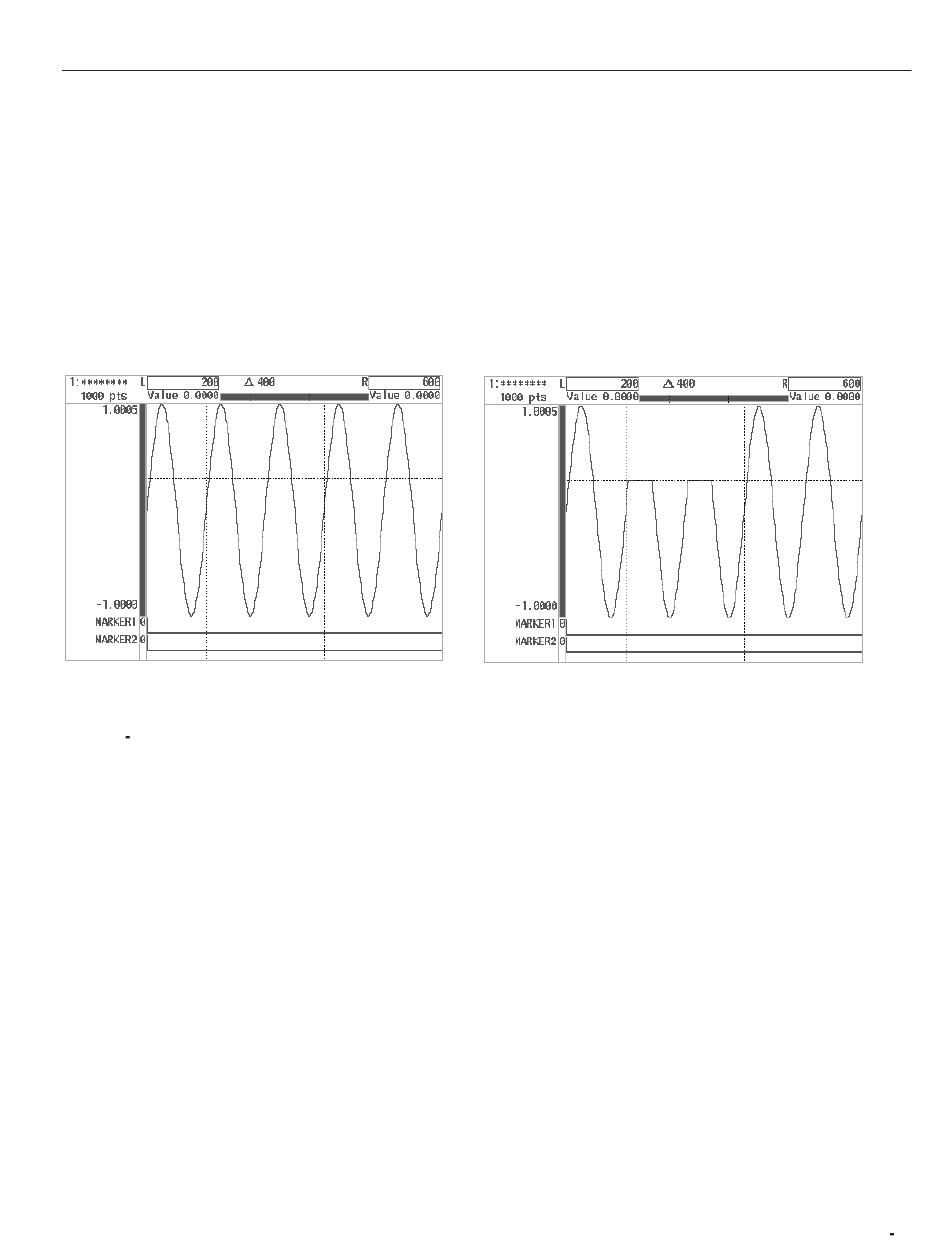

Figure 3 34: Display of Waveform Clipped Above Clip Level
AWG2021 User Manual
The Clip sub-menu item selects the area of the waveform data between the
vertical bar cursors to be clipped. Either the area above the clip level
(Upper) or below the clip level (Lower) can be selected.
3. Select Level from the sub-menu.
4. Use the numeric keys or the general purpose knob to input the clip level.
5. Select Execute from the sub-menu. The waveform is clipped with the
specified conditions. Figure 3 -34 shows the waveform clipped above 0.3.
Before
6. Select Go Back from the sub-menu. The system returns from the Clip...
sub-menu to the side menu.
Setting a Marker. The Marker... item is used to set the marker signal (shown at
the bottom of the screen) for the section of the waveform between the vertical
bar cursors. This signal may be set to High, Low or Pattern. The following
diagram shows the menu configuration for the Marker... item.
EDIT Menu
After
3 57
